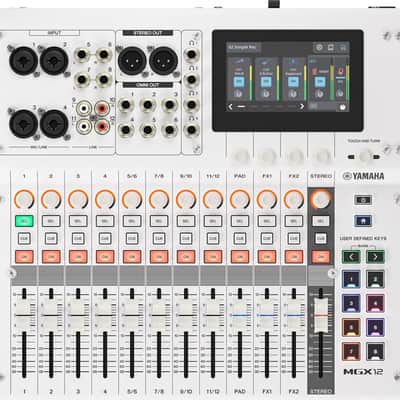

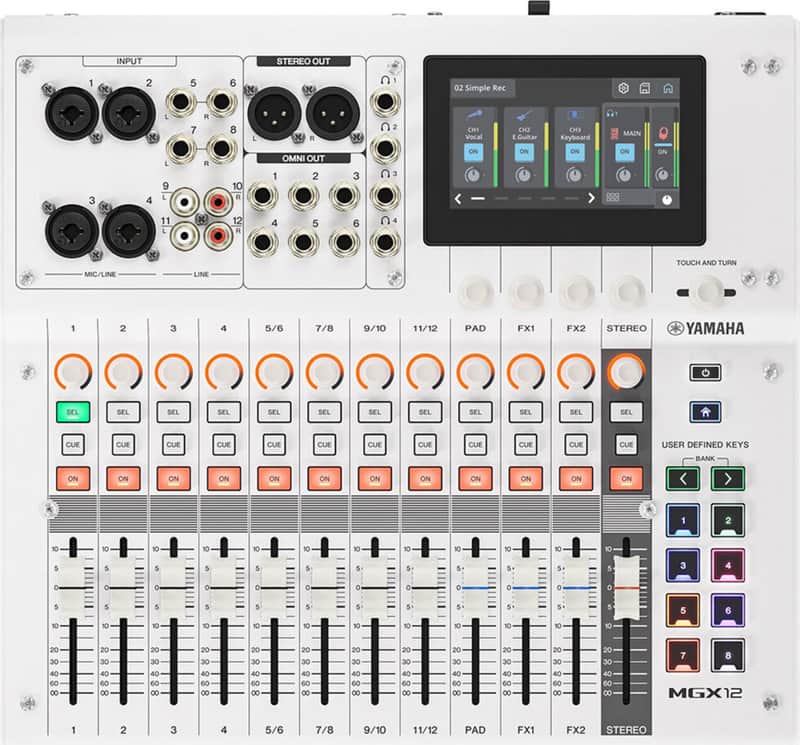

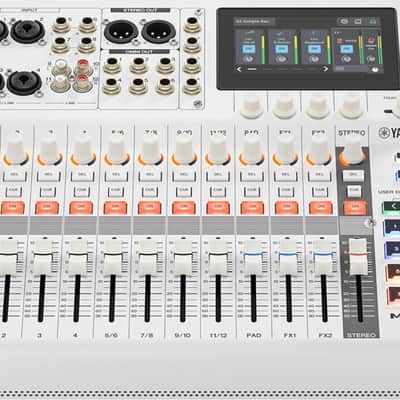

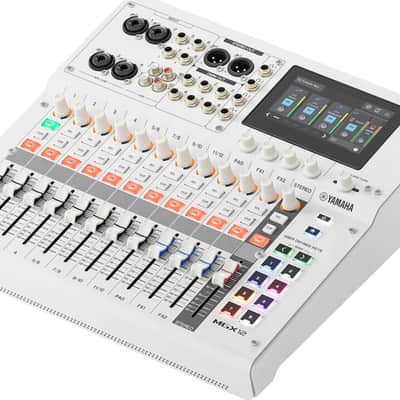

The MGX12 18-Channel Digital Mixing Console from Yamaha builds on the legacy of the well-established and appreciated MG series, adding digital capabilities and a host of features that make it a great choice for live and installed sound, podcast/live streaming, recording, production, and many more audio/video applications. Designed to be operated quickly and intuitively through its touch-panel GUI with 4.3" Touchscreen with 5 Control Knobs, a comprehensive selection of I/O options allow the user to design the system from the bottom up for any usage purpose. Sound quality is bolstered by MGX preamps with 86 dB of gain range, and an included software bundle that features studio mainstays Cubase, Wavelab, and more. Ensure your event goes off as smoothly as possible with assistive additions like Automix, Clip Safe, and scene recall. Whether in clubs, convention centers, or houses of worship, the MGX quickly accommodates a wide range of audio and video production situations, with the quality and durability that users expect from Yamaha.

Product Features

• 12-Input Digital Mixer Melding Studio-Quality Sound with Flexible Routing, Intuitive Operation
• 12 Non-Motorized Faders, a Vivid 4.3" Touchscreen, and 5 Control Knobs Offer Straightforward Operation
• 4 Premium-Quality MGX Mic Preamps on Mic/Line Combo Inputs
• 12 Mix Inputs with Mono and Stereo Channels, a Dedicated Sound Pad, 2 FX Channels, and Robust Mix, FX, Cue, and Stereo Buses
• 18-In/18-Out USB Audio Interface, Plus 2‑Track Recording and Playback on the Sub Port
• Bluetooth Audio Input Enables Smooth Wireless Audio Integration for Performances, Streaming, and Studio Sessions
• 8 Customizable Pads Allow You to Trigger Sound FX or User‑Defined Functions in Real Time
• Onboard 16-Track Recording to a microSD Card with 2-Ch Playback
• Refined DSP Provides You Pristine Digital FX and Latency-Free Monitoring
• Useful Assistive Features, Comprising Auto Gain, Clip Safe, Simple/Standard Mode, and Scene Recall
• Includes a Practical Cache of Steinberg Production Software

Attributes

• Color: White

Technical Specifications

• Type: Electric
• Features: Rackmountable, USB, Bluetooth
• # of Channels: 18
• Dimensions: 3.8" H x 13.2" W x 12.5" D
• Weight: 8.6lbs
• Inputs: 4 x XLR-1/4" Combo, 4 x 1/4", 2 x Dual RCA Stereo
• Outputs: 2 x XLR, 6 x 1/4" TRS
• USB: 2 x USB-C
• Software: Cubase Al, WaveLab Cast LE, Basic FX Suite, and Steinberg Plus software bundle
• Power Supply: 16V DC Power Supply
• Storage Format: Micro-SD
• # of Mic Inputs: 4
• Faders: 12
• Screen: 4.3" Touchscreen
