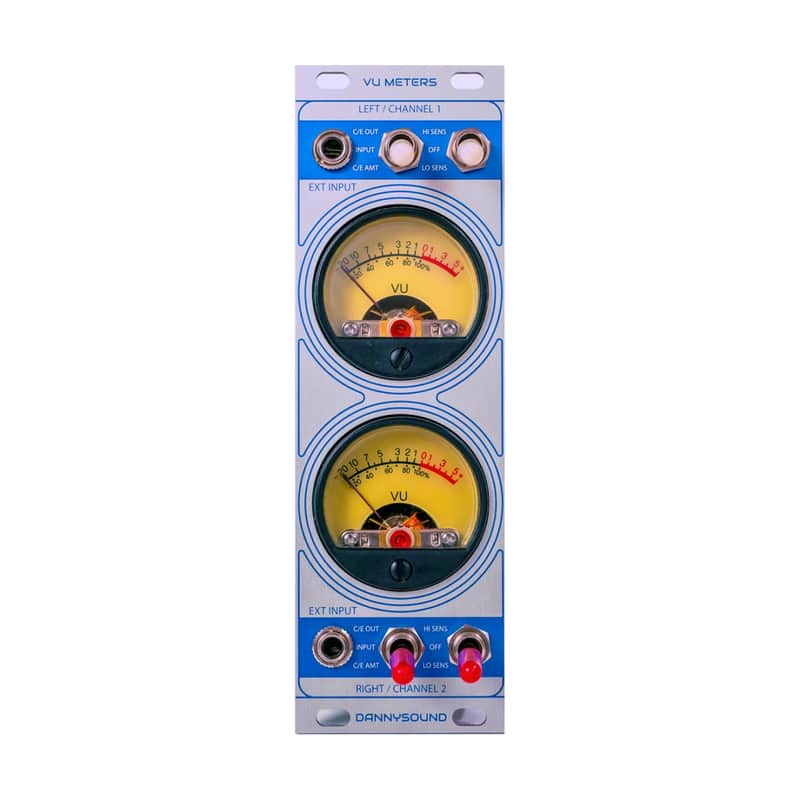

Dannysound/Tobinksi VU Meters Eurorack Module (Dynamics)

The Dannysound VU Meters is designed to be used with 2 x modules. The modules connect internally via 2x3-pin ribbon cables. The meters provide a visual representation of various signals within the Dynamics modules, making settings easier.

Controls for each channel:

3-position toggle switch:

1. C/E OUT – Monitor compressor/expander output.
2. INPUT – Monitor Dynamics input level or external input if it’s used.
3. C/E AMT – Monitor Dynamics compression/expansion amount.

3-position toggle switch:

1. HI SENS – High sensitivity setting, best for monitoring the C/E OUT signal of percussive sounds and drums etc.
2. OFF – If you want to turn meters off. Note that this stops the needles moving but the backlights will stay on.
3. LO SENS – Low sensitivity setting, best for monitoring the C/E AMT signal or anything that overloads the HI SENS setting.

• External input sockets for monitoring external sources.
• Switch to select high or low meter sensitivity or off if the clicking needles get annoying!
• Monitoring of the compression/expansion amount.
• Monitoring of the unprocessed input level.
• Monitoring of the compressor/expander output level.
