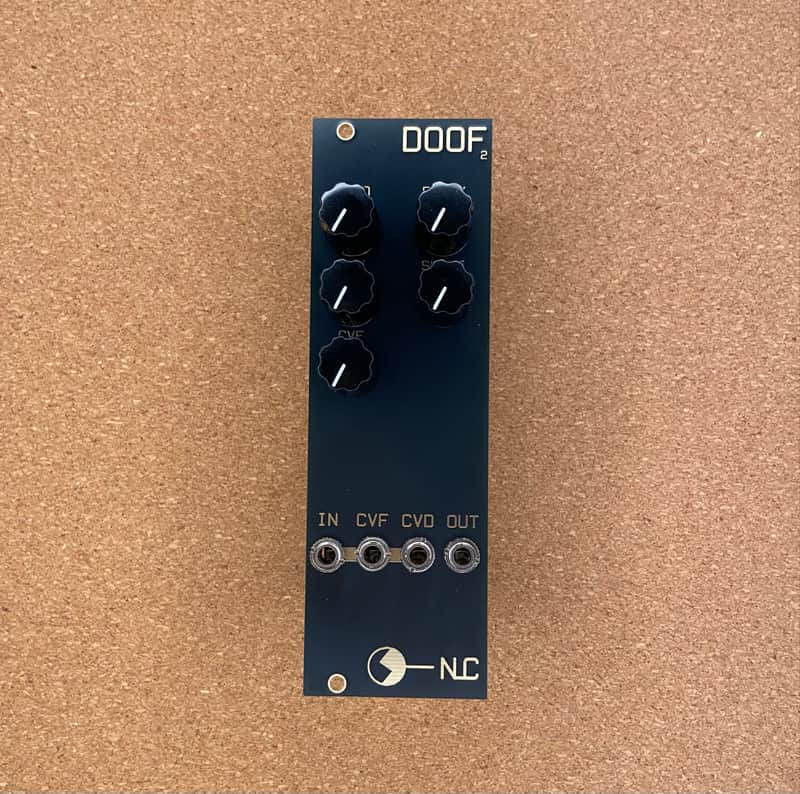

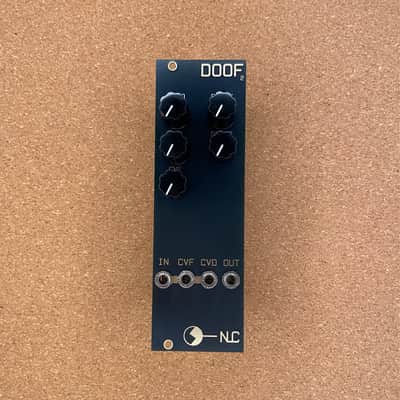

NLC Nonlinear Circuits Doof

NLC Doof

• 8 hp, Black Panel

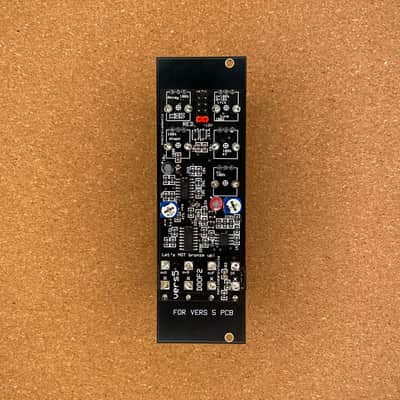

• Fresh build, tested, and fully functional
• Reverse power protection installed, comes with power cable
• Built with highest quality WQP-518MA jacks (20k+cycles)


Further information from nonlinearcircuits:

Doof is a drum module. The design is typical of early 80s drum modules, best to look at the schematic to grok it. In this design, the VCO is a trimmed down version from the NLC dual OTA VCO and the VCA is the same as the ones in the NLC Matrix Mixer.
