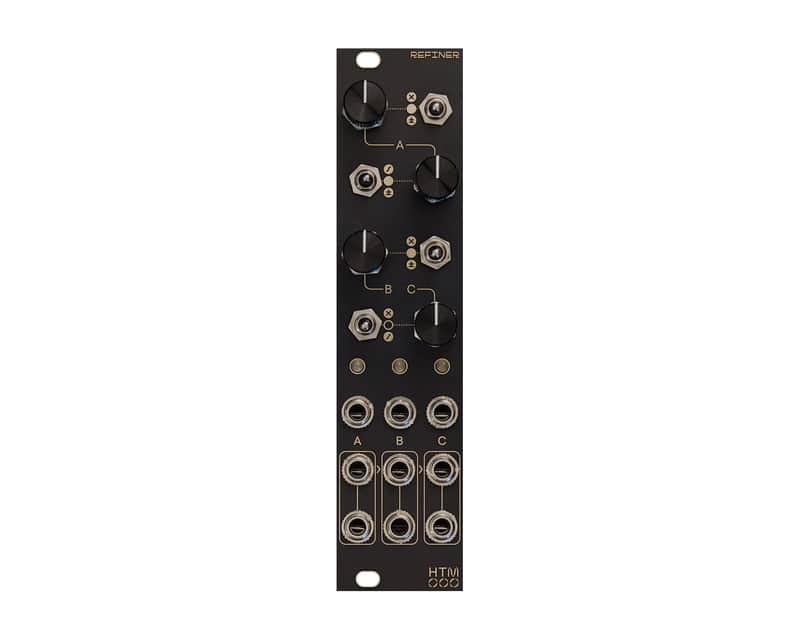

Half-Time Modular Refiner CV Processing Swiss Army Knife Eurorack Module

The Refiner offers three channels of voltage processing utilities to whip CV signals into well-crafted shapes.
Each channel features a switch which changes the behaviour of how CV is processed. Channel A features two stages, with the first providing DC offset or attenuversion, and the second offering slew limiting or DC offset. Channel B alternates between attenuversion and DC offset, while Channel C gives you attenuversion and slew limiting.

In channels A and B, each stage switch features a bypass setting in the center. Channel C features a mute mode in the middle position. These additional settings are perfect for performance, for when you need to quickly change up a modulation routing, transpose sequences, engage portamento, and more.

• 3-channel voltage processor with flexible modes
• Each channel features one input and two buffered outputs
• Switches on each channel change voltage processing function
• Channel A offers DC offset or attenuversion on first stage, slew or DC offset on second stage
• Channel B offers attenuversion or DC offset
• Channel C offers attenuversion or slew
• Channels A and B have bypass option at switch's middle position
• Channel C features muting in middle switch position

• 6 HP 29 mm deep

Attenuator Mixer Multiple SlewLimiter Utility Polarizer
