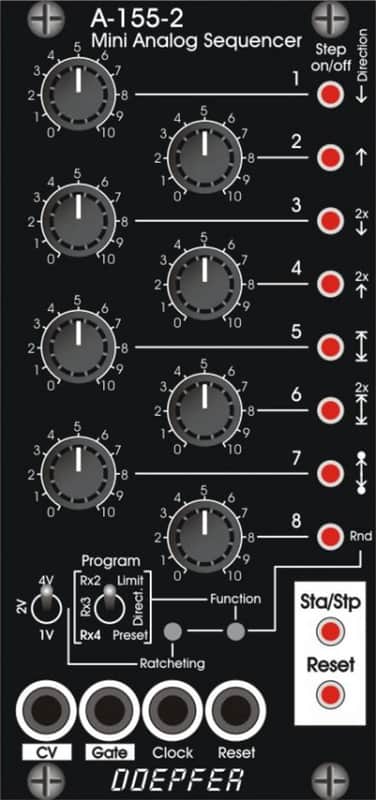

Miniature Analog Sequencer

8-step Analog Sequencer, 12 HP

• clock input can be over 10kHz for Graphic VCO applications
• the gate sequence, the settings for first/last step (Limit) and ratcheting (x2/x3/x4, programmable per step) can be stored in up to 8 user-definable presets.
• CV output range switch (0...+1V, 0...+2V, 0...+4V).
• if ratcheting is not engaged, the gate time is defined by the pulse width of the clock.

Running modes:
- Up
- Down
- 2 x Up (each step is played twice, not to be confused with Ratcheting x2)
- 2 x Down (each step is played twice, not to be confused with Ratcheting x2)
- Pendulum type 1 (start and end step are played twice)
- 2 x Pendulum type 1 (each step is played twice with the normal tempo, start and end step are played 4x)
- Pendulum type 2 (start and end step are played once)
- Random (Rnd)

Technical Data:
- max. CV output range 0...+4 V
- gate output voltage: about 0V/+10V
- required clock/reset input level: min. +3V
- max. clock frequency: >10kHz

Dimensions 12 HP 50 mm deep Current Draw 50 mA +12V 20 mA -12V 0 mA 5V
