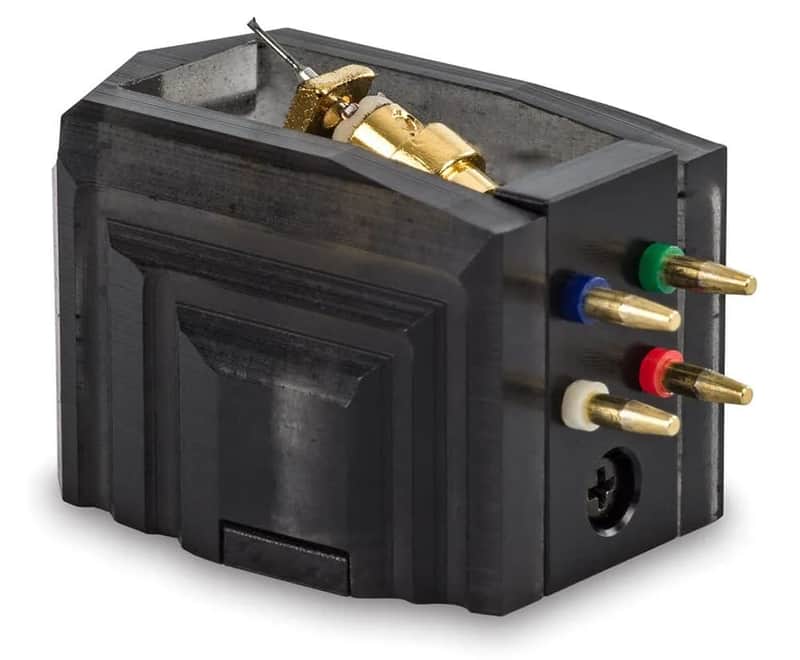

MICHELL CUSIS M - High-End Moving Coil Cartridge - NEW!

PLEASE CHECK AVAILABILITY BEFORE CONFIRMING YOUR PURCHASE! Our stock can change any minute – we sell through various sales channels.

Brand New! – Closed Box
We are authorised dealers of the finest audio gear and musical instruments.

Note 1: Free shipping within EU. For specific shipping rates outside EU please message us. Shipping price you see is only a generic estimation.
Note 2:  This product is custom ordered. Please, message us to check availability and/or eventual delay for shipping.

MICHELL ENGINEERING CUSIS M - HIGH-END MC CARTRIDGE

The Cusis M offers the audiophile an ultra high-end listening experience at a cost which belies its ability.
It's quite simply one of the most accurate and musical moving coil cartridges available at any price.
All of Michell's Cusis cartridges share the same moving coil design. At the heart of the cartridge is a samarium-cobalt magnet which is combined with pure iron to create a very stable magnetic field within the cartridge.
30μ pure copper wire is used to precision wind the cartridge coils onto an ultra-lightweight armature, which is mounted onto a specially designed damper.
The damper has been specifically designed to give the stylus assembly the perfect support, which ensures the stylus tracks the groove precisely.
The number of coils, resultant output and body material, have all been optimised for each model’s stylus assembly, to give the best possible audio output.
The construction of the cartridge has been carefully designed to eliminate vibration and resonance. The aluminium chassis is designed to absorb unwanted vibration and give a rigid platform to mount the cartridge parts.
The body materials, shapes and exterior patterns have also been designed to further reduce vibration and resonance, resulting in truly unrivalled levels of detail and neutrality.

MICHELL CARTRIDGES FEATURES

MICHELL CUSIS E
Elliptical stylus
Aluminium cantilever
Large aluminium chassis
High density Acetyl body

MICHELL CUSIS E/H
Elliptical stylus
Aluminium cantilever
Large aluminium chassis
High density Acetyl body
High output for use with MM phono stages

MICHELL CUSIS S
Shibata stylus
Boron cantilever
Extended frequency response
Large aluminium chassis
High density Acetyl body

MICHELL CUSIS M
Ultra-precise Microline stylus
Boron Cantilever
Reduced coil mass
Class leading frequency response
Large aluminium chassis
Carbon loaded dampening body

MICHELL CARTRIDGE SPECIFICATIONS

Model Cusis E Cusis E/H Cusis S Cusis M
Tracking Force 2.0g 2.0g 2.0g 2.0g
Loading 100 Ω 47KΩ 100 Ω 100 Ω
Freq Response 20-25000 Hz 20-25000hz 20-35000hz 15-45000Hz
Output Voltage 0.35mV 2mV 0.4mV 0.25mV
Weight 8.9g 8.9g 8.9g 8.1g
Cantilever Material Aluminium Aluminium Boron Boron
Stylus Profile Elliptical Elliptical Shibata Ultra-precise Microline
Channel Balance <1dB <1.5dB <1dB <1dB
Channel Separation 23dB 22dB 25dB 28dB
Compliance 8x10-6cm/dyne
Tracking Ability 70µ / 2.0g
Internal Impedance 4.5 Ω 130 Ω 4.5 Ω 3 Ω
Type Moving Coil
Coil Material Pure 30µ Copper
Run-in Period > 40 Hours
Body Material Acetyl Acetyl Acetyl Carbon Loaded Acrylic
