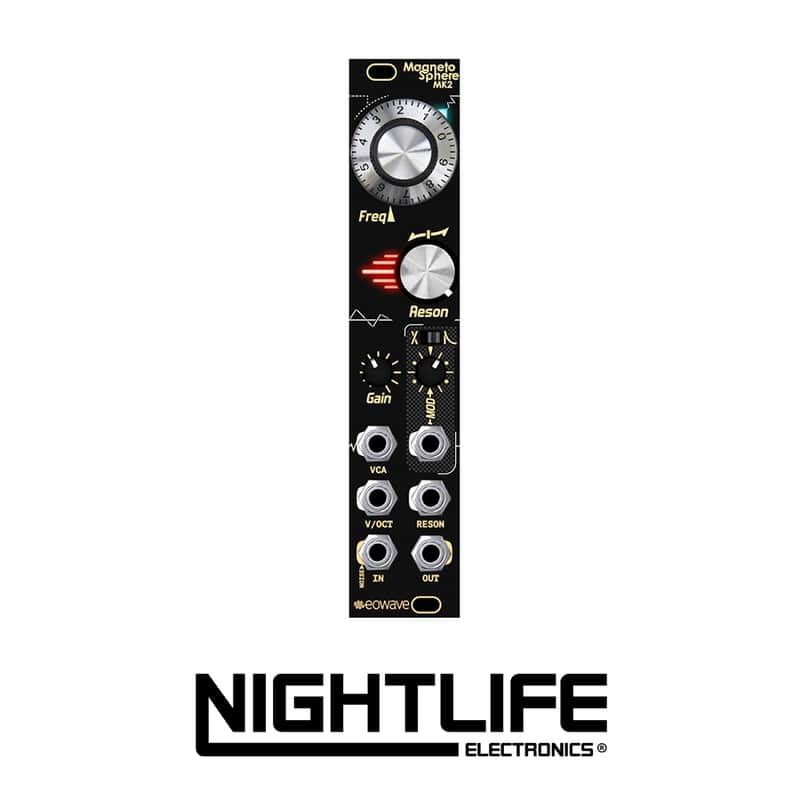

Eowave Magnetosphere MK2

Magnetosphere mk2 is an evolution of our legacy 24db resonant ladder lowpass filter.

More than a compact warm filter, it has been redesigned to be also used on its own to create percussive sounds.

• Self-Oscillation : Fully turn the resonance clockwise to allow the filter to self-oscillate. Additionally, resonance amount can be modulated via the CV input.
• Envelope Shaping : A fixed vactrol-like envelope generator controlling the cutoff is here to shape percussive sounds when the module is self resonating or accents when paired with an external source ( or the internal noise). This input is dynamic responsive so you can vary the amplitude of this envelope by attenuating your incoming Gate/trig.
• Classical Modulation :  Desactivate the envelope mode to use the input as a traditional modulation source with an attenuator.
• Integrated Analog Noise : Features a normalized analog noise source integrated into the input to create airy wooshy sounds
• Saturate : The Gain knob adjusts the incoming signal’s attenuation or amplification making the possibility to saturate your signal for a grittier sound.
• Transistor VCA : Because there are never too many VCAs, the magnetosphere has a transistor one who is opened when nothing is plugged into its CV input. The VCA has a small filter on its control to remove click when opened with gates.

• Width: 5HP
• Depth: 30mm
• Power: 22 mA @ +12V / 13 mA @ -12V
