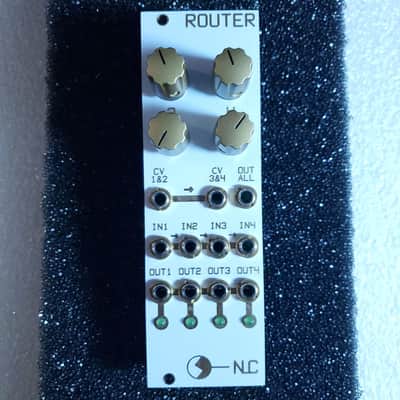

Nonlinearcircuits Router — White

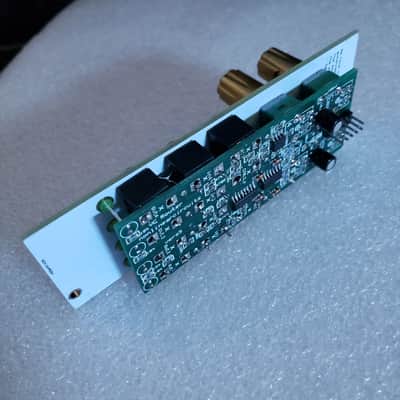

This module has been kept in a covered case, secured with thumb screws and washers. The module has remained in my studio, a smoke-free and pet-free environment. The module is in excellent condition, cosmetically and functionally.

___

The Router can deliver 1 into 4, 4 into 4 and 4 into 1 at the same time, 2x2 into 2 and, with a simple mod to the PCB, 2x1 into 2

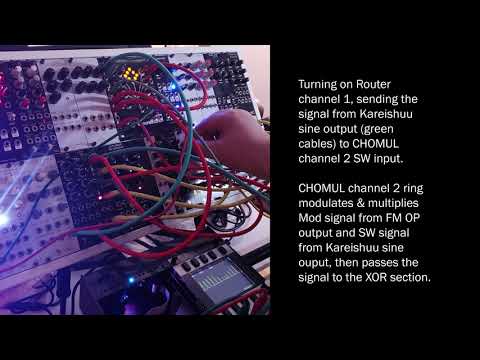

The Router was developed to use in the cellF neural synthesizer at MoNA’s Mofo exhibition in Jan 2017. As cellF would be left running for 6-8 hours per day, we wanted a module to periodically switch around the CV signals to create new patches.

The Router's pots can be used as switches, 0 is off and 10 is on. At these settings the switches will ignore incoming CV or gate signals. For the switching to be controlled by CV or gates, set the pots to an appropriate turn-on point.

Some notes:

• Input 1 is internally connected to the switches on jacks 2, 3 & 4
• CV 1&2 is internally connected to the switch on the CV 3&4 jack
• The signals to the OUT ALL jack are summed together, as more than one signal can be on at a time; this is the safest way to merge them
• The Router can deliver 1 into 4, 4 into 4 and 4 into 1 at the same time, 2x2 into 2 and, with a simple mod to the PCB, 2x1 into 2

17 mA +12V

13 mA -12V

0 mA 5V

8 HP

skiff friendly
