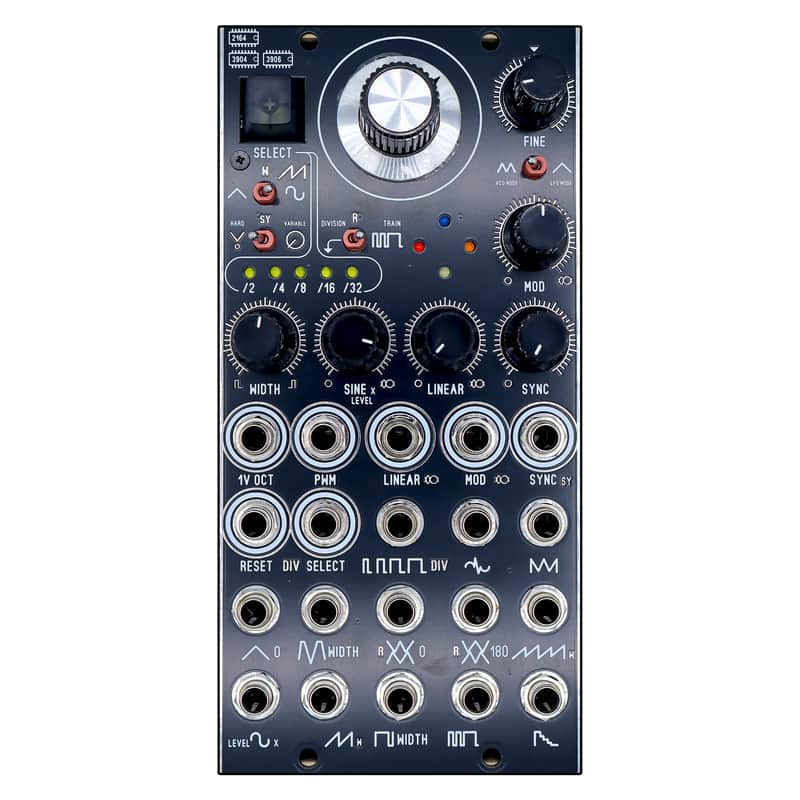

blue lantern modules 5U Lunar Lab VCO

MUF FORMAT LUNAR LAB VCO

WIDTH: 2MU

CURRENT: +138mA, -98mA

MU Format 15V Based Module.

What does this do?

This is an analog vco with many wave forms. This is based on the Lunar Lab series vco.

This product produces continuous wave forms that can be used as an LFO or audio rate VCO. There are 13 possible wave form outputs. This is a discrete, triangle core design based on the Bergfotron 'Advanced' VCO. This particular version uses a VCA based exponential converter for the core 1v per octave converter.

You can use this as a vco or lfo. There is a sub generator, with division clock.

The design is using a VCA exponential converter for the 1V per octave conversion. Very low drift since it does not

use any tempco resistor with matching transistors.

The VCO core is a triangle based hybrid design. The core is discrete, but the other waveform shapes are using CMOS logic chips and op amp chips.

There are two types of sync, select-able by toggle switch.

Features:

-13 Wave Form Outputs: Ramp, Double Saw x2 Frequency, Sine with Level Out, Triangle, Saw, Even Harmonic, Pulse with PWM, Falling Stairs, Folded Triangloid, Pulse Train, Sub Generated Pulse Output (Divider), new hyper phased Triangloid 0, and hyper phased Triangloid 180.

-VCO and LFO mode.

-Triangle Core Design

-Linear FM

-Exponential FM, with Bi-polar Knob

-1v Octave direct input

-Sync input or reset circuit (VCO mode only), selected by switch.

-Trigger input for selector (Divider circuit)

-Reset circuit for divider circuit
