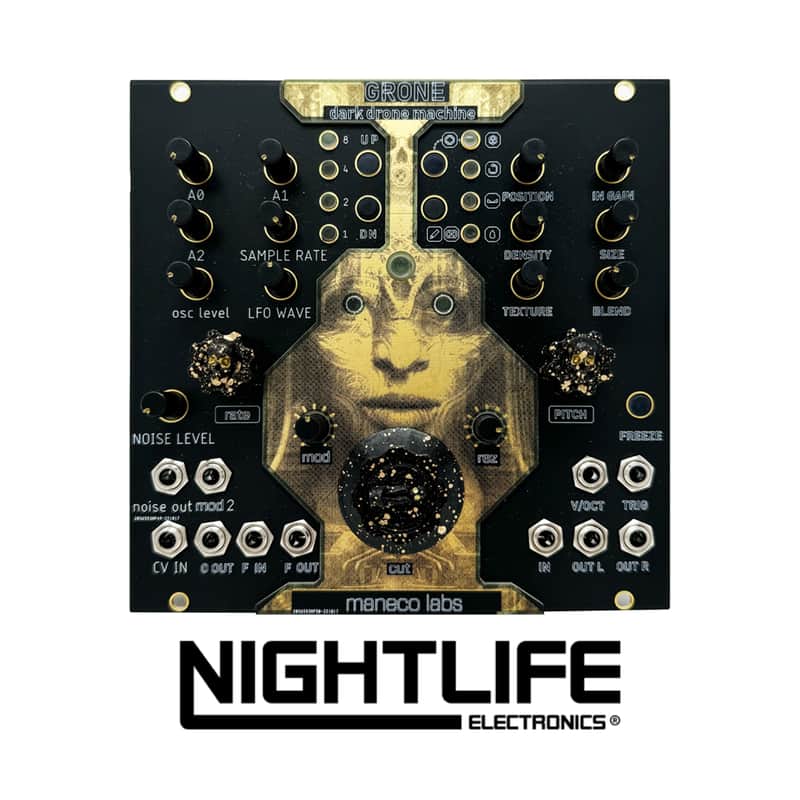

Maneco Labs Grone Drone

Maneco Labs Grone Drone - the ultimate drone voice module.

• Width: 26HP
• Depth: Skiff Friendly
• Power: 200mA @ +12V / 0mA @ -12V

Features

• Eurorack format
• Drone voice oscillator
• MS20 VCF
• Multi waveform LFO
• Noise generator
• Based on Mutable Instruments’ Eurorack module with Parasites firmware.

Drone VCO

• Sound generation based on equations converted to analogue signals.
• Sixteen equations are selectable via Up and Down switches.
• Four LEDs indicate the selected equation in binary format.
• A0, A1 and A2 pots modify parameters used by the equations.
• Sample Rate pot adjusts pitch and oscillation speed.
• Output Level pot and dedicated jack for patching to external modules

Noise generator

• White noise generator with dedicated level pot and noise output jack.

Voltage-Controlled Filter (VCF)

• MS20-style resonant low-pass filter.
• Cutoff (cut) pot adjusts the filter cutoff frequency.
• Resonance  pot controls resonance intensity.
• MOD1 modulation amount pot with input and output jacks.
• Second CV input for cutoff labelled MOD2.

LFO

• Low-frequency oscillator routed to VCF MOD1.
• Rate pot adjusts the oscillation speed.
• LFO Wave pot changes the waveform type.
• Available waveforms: Ramp up/Ramp down/Square/Triangle/Sine/Sweep/Random levels/Random slopes

Clouds section

• Based on Mutable Instruments’ Eurorack module with Parasites firmware.
• Includes the same controls: Input Gain, Position, Size, Density, Pitch, Texture and Blend.
• Switches for Blend parameter and Load/Save
• Freeze control with indicator LED
• Dedicated audio input jack (mono) and stereo output
• Control inputs for V/oct and Trigger
