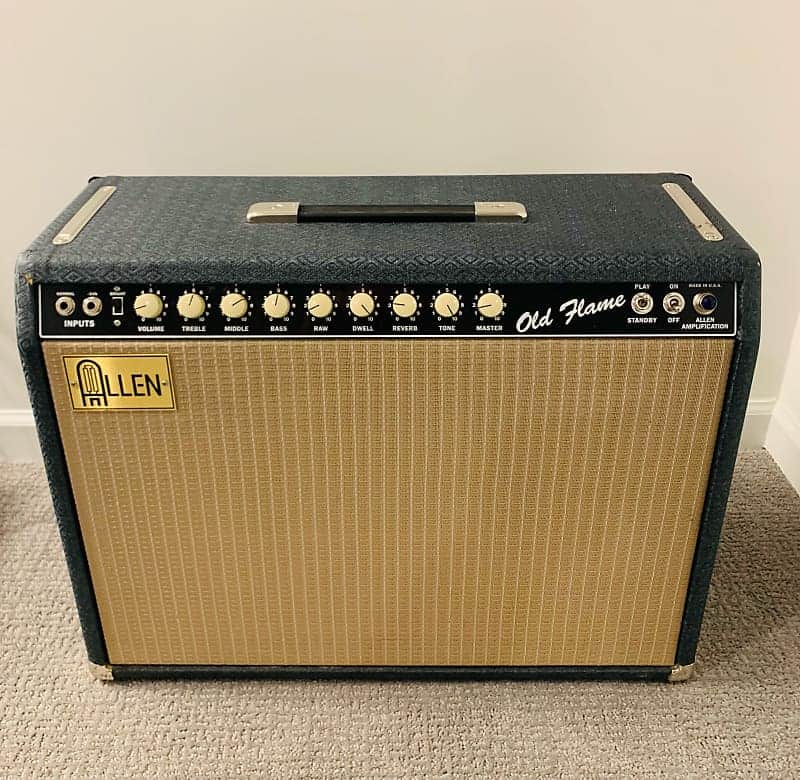

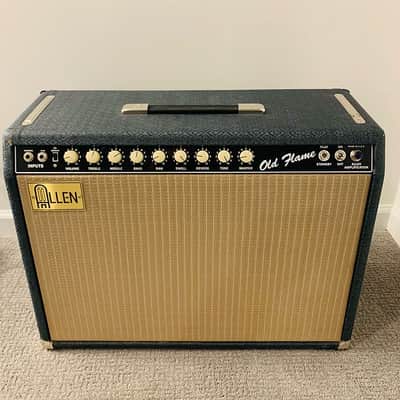

Allen Amplification Old Flame 40w 210 combo

MADE IN THE USA!

Up for sale is my road-worthy 2017 Old Flame by Allen Amplification. This amp is a BEAST, has amazing tone and is retired from the Allen Amps brand. Based on the legendary Super Reverb, but in a much more portable 2x10; this makes it comparable to a Vibrolux in terms of footprint.

The Old Flame is a boutique, hand-wired guitar combo featuring two Ragin Cajun speakers (this was custom). It is Hand-wired point-to-point with tinned solid-core PVC wiring, G-10 glass epoxy circuit board with brass eyelets. Carbon film resistors, Mallory M150 and CDM silver mica tone capacitors, Switchcraft jacks, Carling switches, and U.S. made molded type sockets.

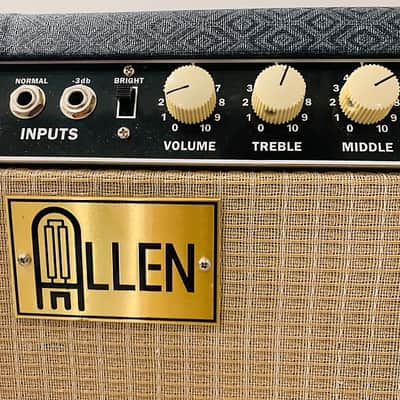

Also custom are the cream knobs, blue Tolex, speaker grill and blue power light on this stunning amp.

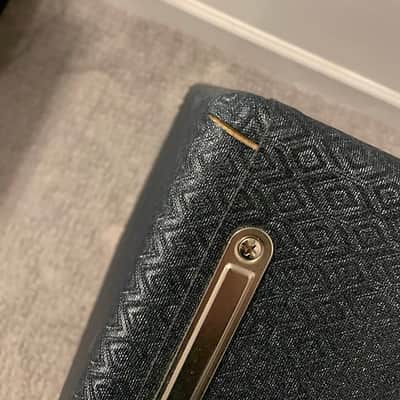

It does have some road scratches (see photos) but it does not effect the sound or playability, just small cosmetic blemishes.

Raw knob is a bit scratchy but works; this is an easy fix, especially being that it's handwired.

Also includes a footswitch (requires a 1/4in cable) which can toggle the Raw control on or off.

Note that this is a kit amp, as it lacks David Allen's signature.

Output Power

40 Watts (6L6GC power tubes and GZ34 rectifier tube)
25 Watts (6V6GT power tubes and 5Y3GT rectifier tube).

Tube Compliment

(4) 12AX7, (2) 6L6GC and (1) GZ34.

Class

AB push-pull with adjustable fixed bias.

Equalization

Bass, treble, and midrange controls, BRIGHT switch, and RAW control.

Reverb

All-tube long 3-spring medium delay tank in a heavy vinyl reverb bag with Dwell, Mix, and Tone controls. Shielded cables.

Master Volume

Post-driver using dual potentiometer and (4) coupling capacitors.

Chassis

18-gage non-magnetic stainless-steel with welded corners.

Potentiometers

Full-size (15/16") chassis-mount with 3/8" bushing, solid metal shaft, damped action.

Circuitry

see above description.

Transformers

Cool and quiet running Allen TP40 200ma power transformer, TO40MT upgrade paper bobbin interleaved winding output transformer, TR reverb transformer and TRCH choke are all U.S. made. See the  for details.

Topology

Design is loosely based on the mid 60's Fender Super Reverb™ but without a normal channel or a vibrato function. Design is enhanced with 3-knob reverb control, master volume control, "RAW" control, front panel power switches, impedence switch, and rear panel bias adjustment jacks.

Cabinet

Solid pine with black Tolex covering, black/white/silver sparkle grill, floating plywood baffleboard. (2) Tolex covered, rear screw on panels. Chrome corners, rubber feet, chrome chassis straps, black-rubber (steel-reinforced) carrying handle with chrome caps, chrome screws.

Speaker(s)

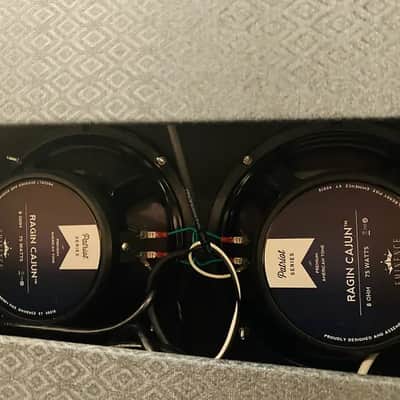

Two 75 watt Rajun Cajuns

Special Features

Unique front panel "RAW" control brings up the mids scooped by the tone stack while providing a substantial gain increase. Bias adjustment jacks on rear panel provide quick and easy power tube adjustments with any DC milivolt meter. Check for correct bias and matching.

Power Cord

Black, 12-foot, 3-prong grounded heavy-duty 18/3 with strain relief bushing.

Power Switches

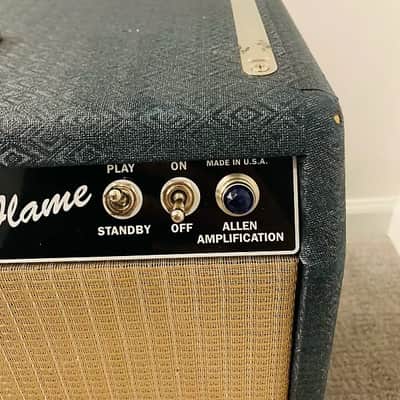

Front panel-mounted Carling toggle-type for AC Power and Standby.

Indicator Light

Front panel pilot-light for AC power with choice of red, green, blue, amber, or purple jeweled lens and #47 bulb.
