From manufacturer:

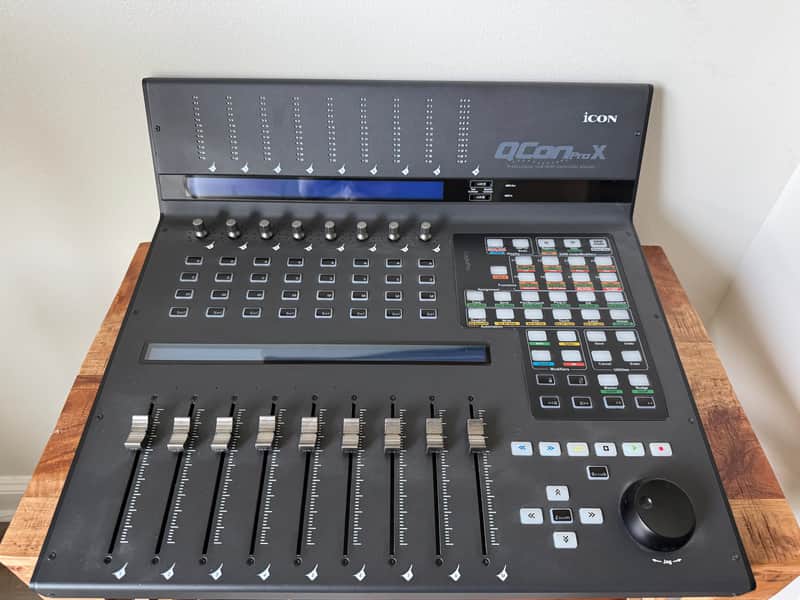

Expand and command your Digital Audio Workstation (DAW) by adding true tactile control via USB2.0. The QCon Pro X is a control surface designed to get you out of “the box” of your computer and into your music. Record and mix without always having to point and click. QCon Pro X puts the functions of your DAW at your fingertips by providing you with nine (9) full sized motorized faders, eight (8) rotary dual-function encoders, two (2) large backlit LCD screens, LED volume metering, a jog wheel and plenty of buttons to press. Adjust multiple volume or pan levels simultaneously. Mute or solo numerous tracks on the fly. Use the transport section to conveniently play, stop, fast forward, rewind, record, loop, zoom, punch in and punch out of your compositions. Spin the nicely sized jog wheel to scrub through tracks and address areas of special interest. Dedicated buttons also allow you to access your entire mix by banking across tracks in groups of 8 or 1 track at a time.

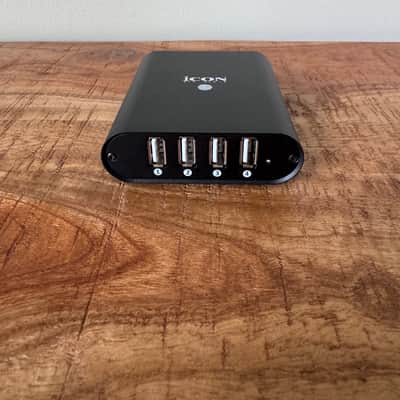

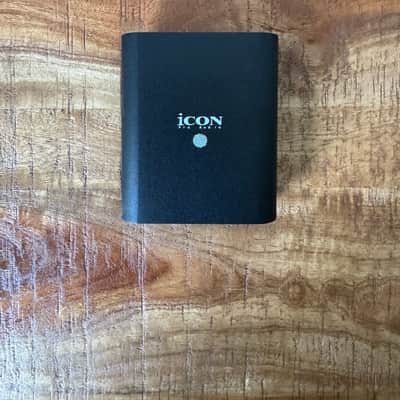

Included is a USB hub that makes the unit compatible with Apple Silicon processors.

Features:

  • 8+1 touch-sensitive motorized faders with 10-bit resolution
  • 12 segment LED meter bridge
  • Stereo LED master channel level metering on metering bridge
  • 8 Dual function encoders with multi-color LED indication ring
  • 11-segment multi-color LED surrounding the encoders to indicate the rotation position
  • Dual 2×56 large backlit LCDs to display channel name, control values etc. for each channel
  • 12-segment LED display showing time location of your project in either SMPTE or BBT format
  • 18 assignable buttons
  • Jog shuttle wheel for scrubbing, fast search and control
  • Illuminated buttons for each channel including Record Enable, Solo, Mute, Select and Monitor
  • 6 illuminated transport buttons including Play, Stop, Rec, Rewind, Fast Forward and Loop
  • Illuminated ZOOM button with 4 direction buttons
  • 9 illuminated assignable MIDI function buttons
  • Expandable to 64 channels using 7 QCon Pro XSexpander units depending on the DAW
  • Two (2) 1/4” connectors for foot switches and pedals
  • Automatic and manual mode switch for accessing different DAW modes
  • Class-compliant with Windows XP, Vista (32-bit), Windows 7 (32-bit & 64-bit), Windows 8 (32-bit & 64-bit), Windows 10 (32-bit & 64-bit) and Mac OS X
  • USB 2.0 high speed connectivity
  • Optional automatic DAW detection mode is available for Cubase, Nuendo, Ableton Live, ProTools, Logic, Reason, Studio One, Bitwig, Cakewalk/Sonar, Samplitude, Reaper, Harrison Mixbus, Digital Performer and Audition
  • Built-in Mackie Control for all DAWs listed (except for ProTools which uses Mackie HUI Protocol)
  • PVC overlays are included for all DAWs listed (except Cubase and Nuendo which is the stock module)
  • User self-defined (MIDI Learn) mode for other DAWs not supported with presets
  • Easy firmware upgrade available via USB connection and iMap software
  • Superior build quality and robust metal casing with Kensington lock port

This item is sold As-Described

This item is sold As-Described and cannot be returned unless it arrives in a condition different from how it was described or photographed. Items must be returned in original, as-shipped condition with all original packaging.Learn More.

Listed8 months ago
ConditionExcellent (Used)
Excellent items are almost entirely free from blemishes and other visual defects and have been played or used with the utmost care.Learn more
Brand
Model
  • QCon Pro X DAW Controller
Finish
  • Black
Categories
Year
  • 2010s
