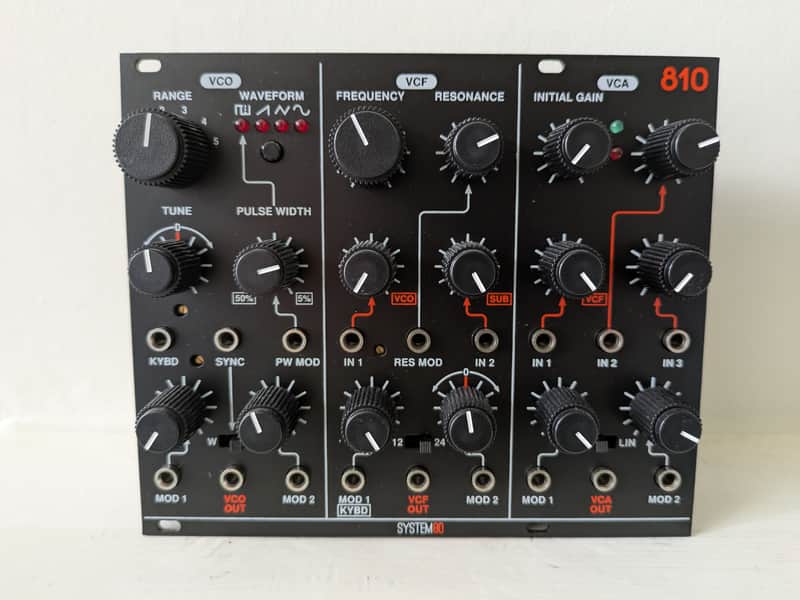

System80 810 MK2

For Sale: System80 810 MK2 Eurorack Synth Voice Module — Mint Condition
Condition: Mint (like new – hardly used, flawless front panel, zero rack wear, fully tested)

Description:
This is the System80 810 MK2 — a high-quality 3-in-1 subtractive analog voice module combining VCO, VCF and VCA. It’s inspired by vintage Japanese synths (e.g., System 700, System 100 M, Jupiter-8). signalsounds.com

Key features include:

• Discrete VCO with temperature-compensated exponential converter, 1 V/octave tracking, sync input (weak & strong modes), selectable waveform (Pulse, Ramp, Triangle, Sine), pulse-width modulation input, sub-oscillator. signalsounds.com
• VCF: Cascaded OTA design, selectable 12 dB or 24 dB slope, self-oscillating, CV inputs (unipolar & bipolar), resonance. signalsounds.com
• VCA: Classic OTA design, multiple audio inputs (normalized to filter output), CV inputs selectable exponential/linear. signalsounds.com
• MK2 updates: Solid-state octave switching, memory recall of waveform selection, steel back cover. signalsounds.com
• Specs: Width = 30HP; Power: 60 mA @ +12 V, 50 mA @ –12 V. signalsounds.com

Why this one stands out:

• Mint condition: only minimal usage, virtually no signs of wear on the panel or mounting ears.
• Fully functional and tested.
• A beautifully voiced analog module that gives you a full standalone voice in only 30 HP — ideal for compact rigs.

What’s included:

• The module itself (System80 810 MK2)
• Original power ribbon (if available)
• Well-packaged for safe UK/EU shipping

Shipping & Payment:

• Based in UK — I’ll ship to UK for free & EU (please message me for international quotes).
• Payment accepted via your chosen method: e.g., PayPal Goods & Services, bank transfer, Reverb payments.
• Item will be dispatched within 1-2 business days of cleared payment.
