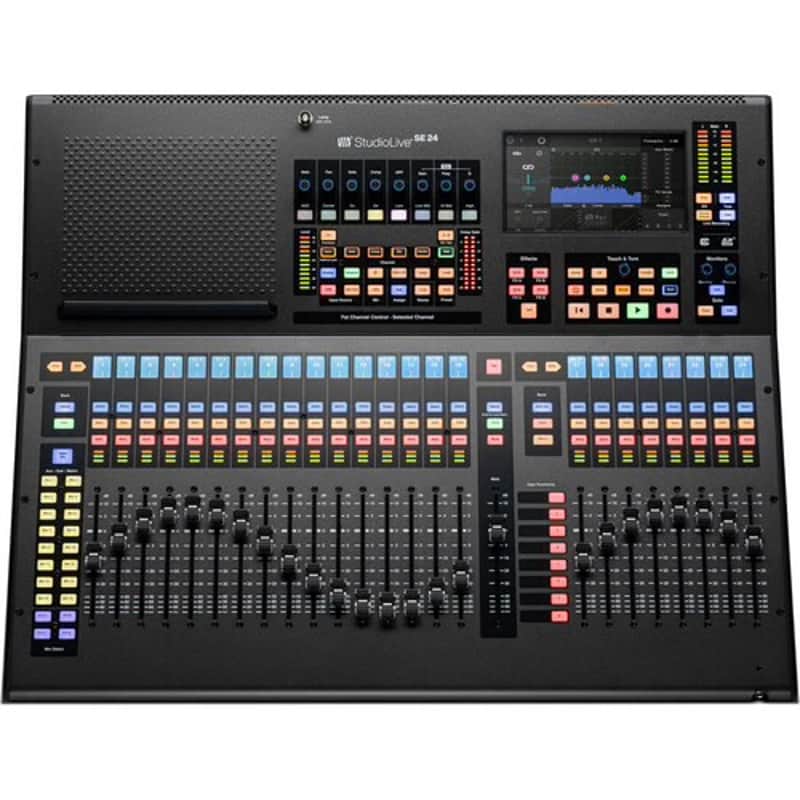

PreSonus Studiolive Series iii SE 24 Digital Console Mixer

Designed for live sound reinforcement, live recording, and studio recording applications, the PreSonus StudioLive SE 24 is a Series III 40-channel small-format digital console, recorder, and audio interface with a full complement of analog I/O packed into a 25-fader chassis. Featuring 32 studio-grade, fully recallable, XMAX-R preamps and vintage-style EQ and compression options on every channel and bus, the StudioLive SE 24 allows you to mix faster and sound better. With the 16 FlexMixes, you can configure subgroups, auxes, or matrix mixes on a per mix basis. Matrix mixes include all 40 input channels and every bus, making it easy to create front- and side-fill mixes for large venues or producer mixes for broadcast applications. Additionally, the mixer offers 24 DCA groups, four dedicated subgroup mixes, and four FX mixes, each with a stereo return and dedicated processing with lush reverbs and delays.

The StudioLive SE 24 features an integrated continuously bidirectional 64x64 USB 2.0 audio interface and onboard 34x34 SD recorder, which allows you to integrate backing tracks, record your show, or mix your next album, plus it comes with a suite of integrated software including Capture multitracking, virtual soundcheck software, and a perpetual license of Studio One Pro. For even more flexibility, each channel can easily switch between analog, USB, SD, and AVB sources, making integrating your analog and digital gear easier than ever. The StudioLive SE 24 can be controlled remotely from a computer or tablet and offers the ability to dial in a mix offline with Universal control. The built-in, Milan-certified AVB audio networking allows you to integrate stage boxes, personal monitor mixers, switches, and powerful accessories like the AVB-D16 AVB-to-Dante bridge that lets you add 16x16 Dante networking when you need it.

Features

• Portable and flexible 40-channel digital console available with 26 mix buses, integrated recording, advanced audio networking, and a complete professional software suite.
• Flexible onboard 32 mic/line inputs with recallable XMAX preamps, 16 mix outputs, and dedicated Main LR outputs plus a Mono sum output.
• 25 fully recallable touch-sensitive motorized faders.
• Milan-certified AVB audio networking ecosystem makes it easy to connect PreSonus NSB stage boxes, EarMix 16M personal monitor mixers, other Studiolive Series III mixers, and AVB-D16 Dante bridge.
• PreSonus Metro controls your mixer over the internet from anywhere in the world with real-time audio monitoring.
• Continuously bidirectional 64x64 USB 2.0 interface with deep integration and included PreSonus Capture multitracking software with automated Virtual Soundcheck.
• 7 State-Space modeled EQ and 8 vintage-inspired compressors options available on every input and bus.
• Onboard 34x34 multitrack SD Card recording.
• Take charge of your mix with 16 FlexMixes (aux mixes, subgroups, or matrix mixes), 4 dedicated FX mixes, 4 dedicated subgroups, and 24 DCA Groups.
• Free Universal Control lets you remotely control your mixer, dial in mixes, or listen in and control your mixer over the Internet using PreSonus Metro.
• PreSonus Metro lets you remotely control your mixer from anywhere with an Internet connection and monitor your audio in real time.
• Free QMix-UC for iPhone and Android with easy-to-use Wheel of Me puts musicians’ monitor mixes in the palms of their hands.
• Includes both Studio One Pro DAW and Capture Multitrack software.
• Optional Dante support with AVB-D16.

Specifications

MixerMax I/O Capacity40x Input / 26x OutputNumber of Analog Input Channels32 (32 Mono / 0 Stereo)Number of Mic Preamps32Number of Analog Output Channels16Mix Routing16x BusGroups24x DCA GroupPresetsYesFaders & Level Adjustment25 Motorized Fader(Touch Sensitive)Meters2x 12-Segment LEDSignal ProcessingInput PolarityNormal/ReverseDynamic ProcessingCompressor, Limiter, GateEQInput Channels:
4-Band EQ
Output Buses:
4-Band EQGraphic EQYesSolo/MuteSolo, Mute per Input ChannelAudio DelayYesAutomatic Mic MixingYesPerformanceSignal GeneratorYesConnectivityAnalog Inputs16x XLR TRS Balanced Mic Input
16x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input
1x Stereo RCA Tape Input (1 Stereo Pair)
1x XLR Talkback InputAnalog Outputs1x Stereo RCA Tape Output (1 Stereo Pair)
2x XLR 3-Pin Main Output
1x XLR 3-Pin Mono-Summed Output
2x 1/4" TRS Monitor Output
4x 1/4" TRS Subgroup Output
1x 1/4" TRS Headphone Output
12x XLR 3-Pin Subgroup/Aux/Matrix Output
4x 1/4" TRS Subgroup/Aux/Matrix OutputPhantom Power+48 V ±2 V (Selectable on Individual Inputs)Digital I/O1x RJ45 (Control, 1 Gb/s)
1x RJ45 AVB (I/O)
1x XLR AES3 OutputMIDI I/ONoUSB I/O1x USB-B 2.0()Expansion PortsNoWirelessNoExternal Display I/ONoRecordingMax Multitrack Recording34 TracksMedia SupportSD, USB DriveCompatibilityOS CompatibilityComputer: macOS 10.8 or Later / Windows 7 or Later
Mobile: Android/iOSRAM Requirements4 GB, 8 GB RecommendedMobile Device CompatibilityiPad
Android Smartphone
Android TabletPowerInput Power90 to 230 VAC, 50 / 60 HzPhysicalRack MountableYesOperating Conditions32 to 104°F / 0 to 40°C Dimensions26 x 6.5 x 23" / 66 x 16.5 x 58.4 cmPackaging InfoPackage Weight43.16 lbBox Dimensions (LxWxH)31.5 x 31 x 12.75"
