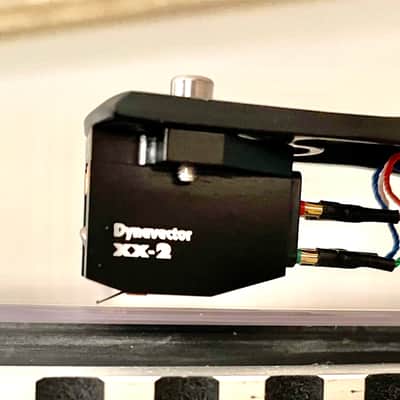

Dynavector DV XX2 MKII MC Moving Coil Phono Cartridge with flux damper, PCOCC coil, Alinco-5 magnet, PF Line contact Stylus on Boron Cantilever

From my private collection:

Dynavector DV XX2 MKII MC Moving Coil Stereo Phono Cartridge.

This is a like new condition, sounds sweet, musical, works beautifully cartridge, excellent detail, stylus still sharp, cantilever and suspension is also in excellent condition. Used under 100 hours.

The DV XX-1 was the first cartridge to feature a "magnetic flux damper" (patent) and softened magnetism" (patent) processes that reject the magnetic fluctuation that is detrimental to a moving coil cartridges performance.

The The DV XX-2 MKII retains the benefit of the flux damper but features the Alinco-5 magnet and the similar rigid construction to the Te Kaitora Rua. Alnico magnets exhibit high magnetic flux density combining with a low coercive therefore magnetic resistance is lower than other magnetic types such as rare earth and ferrite, providing the exceptional stability of the XX-2 MKII output voltage. There is also the additional advantage of low magnetic and electrical resistance contributing to a discernable improvement in sound quality.

The XX-2MKII also exhibits deep powerful bass, treble is both clear and lively possessing none of the hardness found in many moving coil designs.

The XX-2MKII also features a 6 mm solid boron cantilever fitted with a Pathfinder Line contact stylus. PCOCC (pure copper ohno continuous casting process) copper wire is used for the coil. The output voltage of 0.28mV is higher than that of the XX-2 and 6 ohms impedance are suited to most moving coil phono stages.

For ridgity of construction the XX-2 MKII cartridge body is machined from 7075 aluminium the hardest available. However, having only a total weight of only 8.9 grams it is suitable for a variety of popular tonearms.

Please watch the YouTube videos:

Specifications:

Type: Low output moving coil cartridge with Alnico magnet and Flux damper

Output Voltage: 0.28mV (at 1KHz, 5cm/sec.)

Channel Separation: 30 dB (at 1KHz)

Channel balance: 1.0 dB (at 1KHz)

Frequency response: 20 - 20,000Hz (± 1dB)

Compliance: 10 mm/N

Tracking force: 1.8 - 2.2 g

Impedance: 6 ohms

Recommended load impedance: > 30 ohms

Cantilever: 6mm length 0.3 mm dia. solid boron

Stylus tip: PF Line contact shape, stylus radius: 7 x 30 micron

Weight: 8.9 g

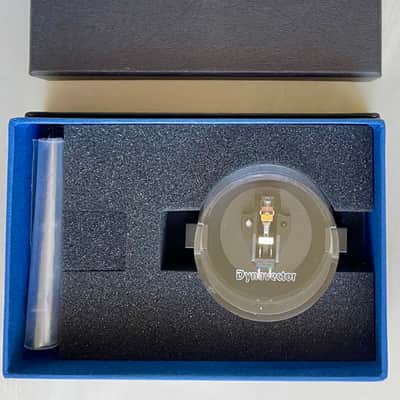

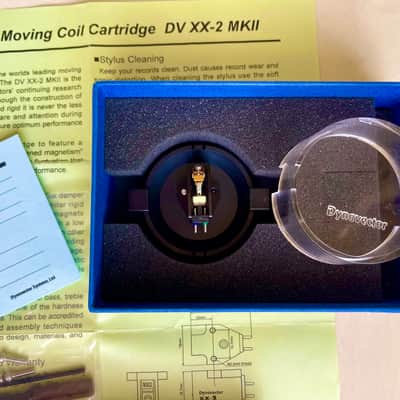

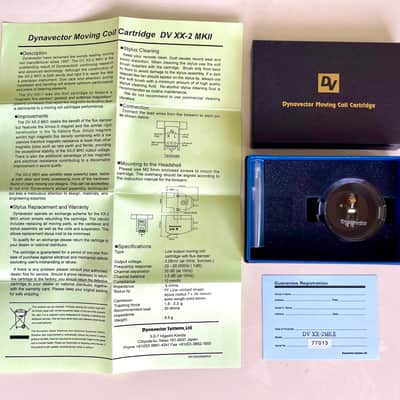

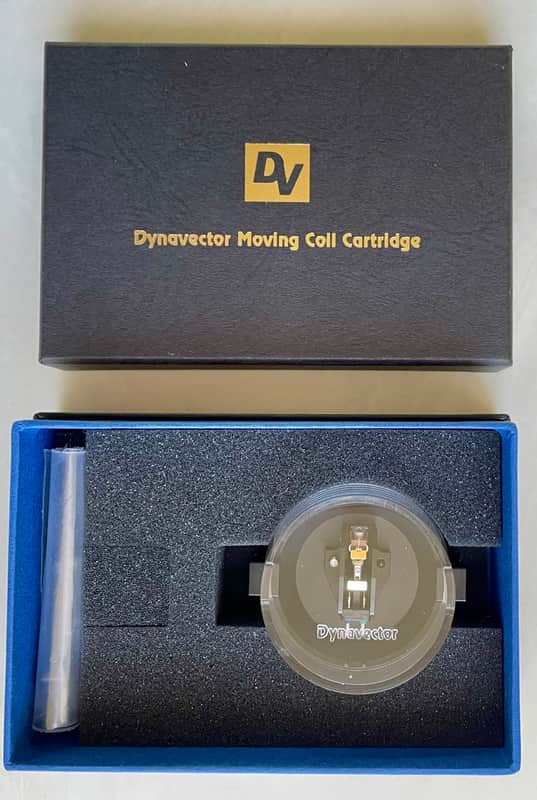

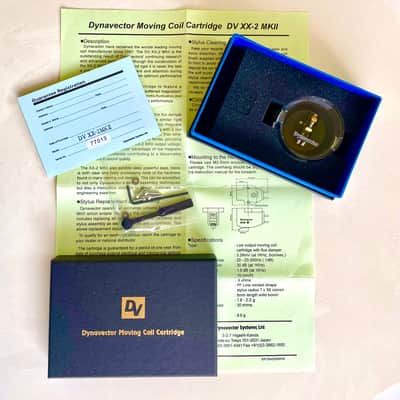

This cartridge comes with all original box, Instruction paper, warranty card, screws and stylus guard.

I have sold a lot of cartridges and got a lot of good feedback, please check them out.

And please take a look my other items.

Thanks!

Wayne
Wayne's Audio
