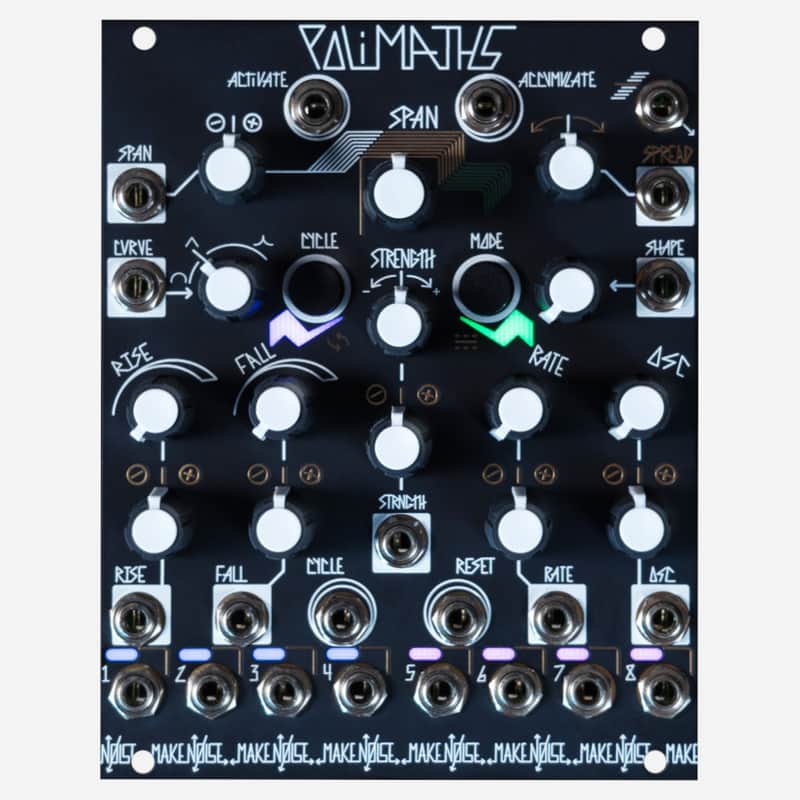

PoliMATHS is an eight-channel CV and Audio event generator for the New Universal Synthesizer System or any Eurorack modular synthesizer. It uses a single set of controls to generate complex functions at eight independent channel outputs. PoliMATHS’ functions are made up of two components: first, the well-known Rise-Fall envelope with variable Curve (familiar from the original MATHS and Function and 0-Coast Slope); and second, a variable-Shape Oscillation whose amplitude is controlled over time by the Rise-Fall envelopes. This oscillation can be either low frequency for the creation of complex control functions, or audio frequency for native generation of audio events/notes with optional tuned pitch control via 1v/oct control voltage. PoliMATHS also includes output headers for creating pre-patched connections to the control inputs of QXG.

Features:

• Part of the New Universal Synthesizer System

• Eight channel function generator with a single set of controls

• Create simple or complex functions

• Activate channels in many possible patterns using Channel Index, Round, and Parallel Modes

• Modulate parameters across channels with Spread or Modulation Dissemination

• Designed to work with MultiMod and QXG and future NUSS modules

• Chain to QXG for immediate eight channel amplitude control

Specifications:

Width: 20hp

Max Depth (incl. power cable): 43 mm

Power:

230mA@ +12V

5mA @ -12V
