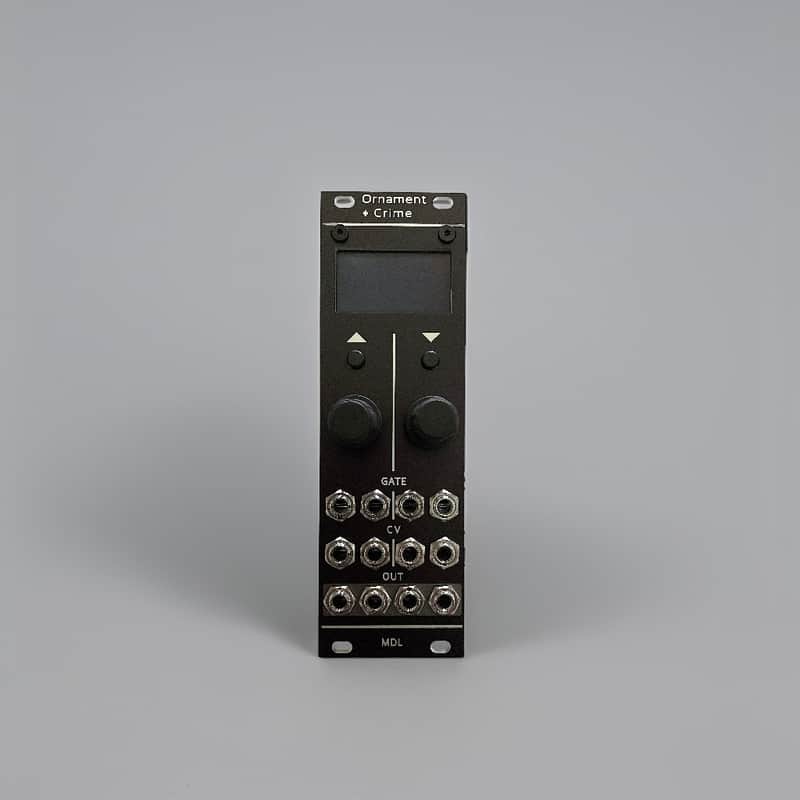

MDL Music - Micro Ornament+Crime 2025 - Black Aluminium
This seller has not set a shipping cost for Continental U.S.. Please contact them to ask about shipping.
Our users rate Reverb
All units have Teensy 4.0 and will have the Phazerville firmware.
This is our version of micro Ornament and Crime originally designed by mxmxmx, and adapted by Jakplugg.
The apps available in Phazerville are:
- Acid Curds - Quad 8-step chord progression sequencer
- Automatonnetz - Neo-Riemannian transformations on a 5x5 matrix sequence!
- Calibr8or - Quad performance quantizer with pitch tracking calibration
- Captain MIDI - Configurable CV-to-MIDI and MIDI-to-CV interface
- CopierMaschine - Quantizing Analogue Shift Register
- The Darkest Timeline - Parallel universe sequencer
- Dialectic Ping Pong
- Enigma – Sequencer of shift registers (Turing Machines)
- Harrington 1200 - Neo-Riemannian transformations for triad chord progressions
- Hemisphere - 2 Applets at a time
- Low-rents - Lorenz attractor
- Meta-Q - Dual sequenced quantizer
- Neural Net - 6 Neuron logic processor
- Quadraturia - Quadrature wavetable LFO
- Quantermain - Quad quantizer
- References - Tuning utility
- Scenes - Macro CV switch / crossfader
- Passencore - Generate a chord progression from LFOs (from sixolet)
- Piqued - Quad envelope generator
- Pong - It’s Pong!
- Scale Editor - Edit and save microtonal scales
- Sequins - Basic dual-channel sequencer
- Waveform Editor - Edit and save vector waveforms (for LFOs, envelopes, one-shots, and phase scrubbing)
- Viznutcracker, sweet! - Quad Bytebeat generator
- Backup / Restore - Transfer app and calibration data as SysEx
- Setup / About - Check your version, change encoder directions, adjust display/DAC/ADC, screen off time
Black circuit board professionally soldered in the reflow process and calibrated and tested.
Panel: 2 mm Black Anodized Aluminium
This Module is a Brandnew Design from 2024.Incl. ribbon cable and screws.
1 Year Warranty!
Width: 8hp
12V: 85mA
-12V: 10mA
Module power connector can be connected either way
PCB and Schematic provided by Jakplugg under creative commons CC-BY-SA-4.0 license.
