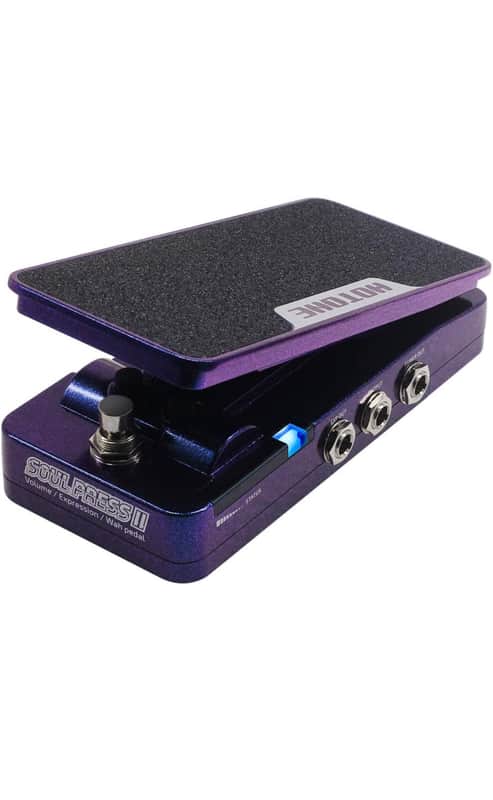

Hotone SP20 Wah Active Volume Passive Expression Guitar Effects Pedal Switchable Soul Press II 4 in 1 with Visible Guitar Effects Pedal SP20

Soul Press II is a next-gen product in the Hotone Press series pedal line. It's new-designed upgrade based on the popular concepts of both the Soul Press and Vow Press. It integrates up to four function modes (volume, wah, volume/wah, expression), taking playability to new heights.

The pedal position indicator shows the pedal position in real time. The TONE mode selection and Q value adjustment represent an absolute improvement in tone and functionality.

Multiple I/O options provide more diverse access.

The reimagined pedal size maintains portability while delivering an optimal ergonomic experience. Soul Press II is a truly versatile wah pedal.
Through internal structural optimization, we improved the circuit structure stability, greatly reducing noise interference caused by intense use

Up to 4 modes (volume, wah, volume/wah, expression)

Q and TONE adjustments give you a wider tone selection, from soothing moods to a wild roars, all the emotion available in one pedal

Additional independent expression pedal output lets you control the parameters of other effects in real time; the external tuner jack moves your tuner outside of the effect chain, removing unnecessary sound contamination

The adjustable mode treadle STATUS indicator shows the pedal position in real time

While maintaining the signature portability of Hotone designs, a larger contact surface provides a better overall ergonomic experience

The textured surface is sturdy and slip-resistant

Dimensions: 81mm（W）×162mm（D）×51mm（H）

 True Bypass  Increased footprint for a better user experience

  Cool STATUS LEDs with mode switch indicate pedal position in real time

  4 in 1 functionality (volume, expression, wah, volume/wah)

 Inspired by the legendary vocal-like wah sound

 Q (wah filter range) and WARM/CLASSIC (frequency range) controls for a more flexible wah tone

 Active volume design for keeping lossless tone

Separate tuner and expression outputs for more connection possibilities

  9V DC or 9V battery power supply
Pot Resistance (EXP out) 10kΩInput

Impedance 1MΩOutput Impedance 100ΩWah Range Selector WARM—290Hz to 1.4kHz CLASSIC—360Hz to 1.8kHz

Current Consumption Max 30mA

Dimension

81mm (W) x 162mm (D) x 51mm (H)Weight 500g

Hotone SP20 Wah Active Volume Passive Expression Guitar Effects Pedal Switchable Soul Press II 4 in 1 with Visible Guitar Effects Pedal SP20
