For sale:

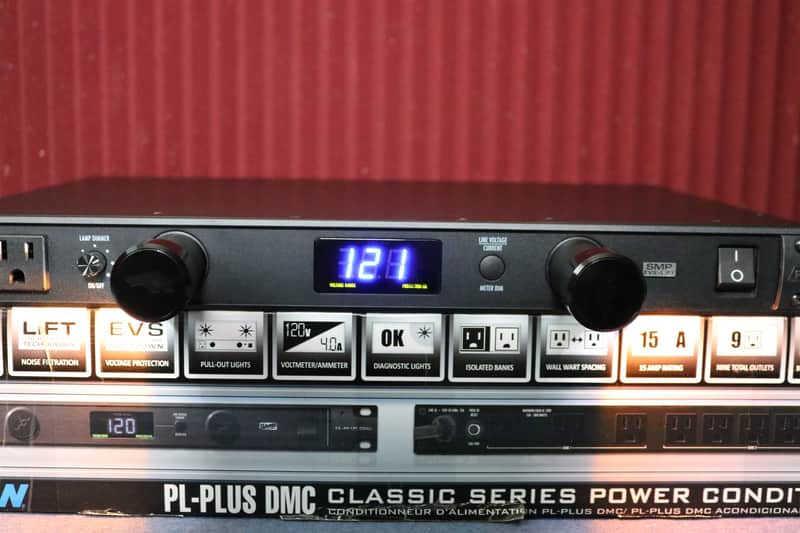

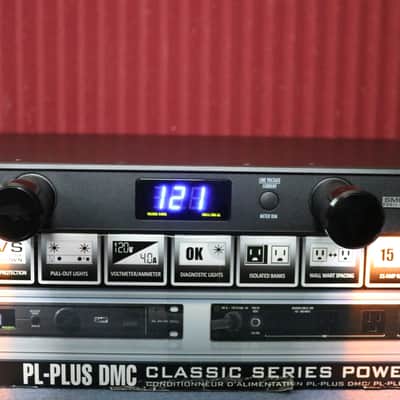

PL-PLUS DMC 15A Power Conditioner with Pull-out Lights and Digital Voltmeter/Ammeter.
Comes with power conditioner (with 10Ft cord attached) and manual. Item will be shipped in original box with insurance.
Technical Specifications
Response Time
1 nanosecond
Maximum Surge Current
6,500 amps
Construction
Steel chassis, .120” brushed and black anodized aluminum front panel; glass epoxy printed circuit boards
Family
Classic Series
Line Voltage
120 (Volts)
Number of Outlets
9
Number of Isolated Banks
2
Outlet Descriptions
All 9 outlets linearly filtered and surge protected
Rack Mountable
Yes
Rack Ears Included
Yes
Front Panel Meter(s)
LED voltmeter/ammeter displays incoming voltage and true RMS current draw
Front Media Light(s)
2 multi-LED, dimmable lamps
Control
Front panel: – On/Off switch – Voltage meter dimmer button
Voltage Regulation
No
Compliance
cTUVus
USB Charging
N/A
Low Voltage Trigger
N/A
AC Power Cord
10 ft, captive 3/14 AWG, with NEMA 15 plug
Dimensions
19" W x 10.5" D x 1.75" H
Weight
12 lbs
Power Consumption
12 Watts
AC Protection Technology
Extreme Voltage Shutdown, Series Multi-Stage Protection, Non-sacrificial protection with zero ground contamination
Under-Voltage Shutoff
90V
Over-Voltage Shutoff
140 VAC
Maximum Current Rating
15 (Amps)
Initial Clamping Level
188 VAC peak @ 3,000 Amps
Filtration Technology
LiFT
Filtration Rating
10 dB @ 10 kHz, 40 dB @ 100 kHz, 50 dB @ 500 kHz
Signal Line Protection
No
Thanks for looking:)
This item is sold As-Described
