WARM AUDIO WA273EQ 2-channel Mic/Line/Instrument Preamp with 3-band EQ

Based on classic microphone circuitry, the black Warm Audio WA-84 is a fully discrete, small diaphragm condenser microphone, well suited for professional studios, home studios, live sound, and broadcast applications.

Mic, Line, and Instrument Inputs

Insert Sends and Returns

Balanced XLR and 1/4" Outputs

Up to 80 dB of Gain

Carnhill Transformers

Switchable Input Impedance

Selectable High-Pass Filter

Inductor-Based, 3-Band EQ

Phantom Power and Polarity Switches

Ground-Lift Switch

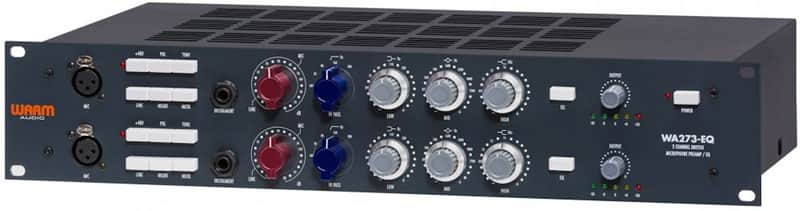

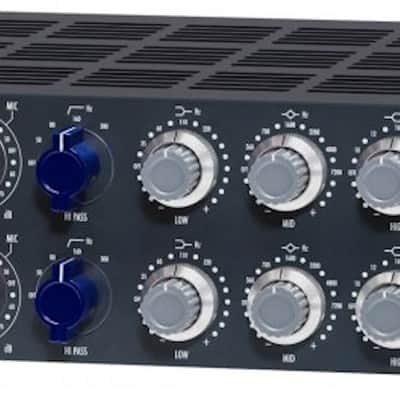

The Warm Audio WA273-EQ is a dual-channel, Class-A microphone preamp and equalizer designed to provide up to 80 dB of gain and 3-band EQ for engineers, producers, musicians, and vocalists in mobile-recording rigs and home, project, and commercial studios. It features custom Carnhill transformers and is wired and assembled by hand to deliver the sound and functionality of classic British '73-style preamps. Its inputs include balanced XLR and 1/4" TRS jacks and two front-panel 1/4" TS instrument inputs. Input impedance, polarity, ground lift, and phantom power are switchable. Connect an outboard compressor or equalizer via the 1/4" TS insert send and return jacks. Balanced XLR and 1/4" outputs are fed by output level controls and allow compatibility with most audio interfaces and mixing consoles. The selectable high-pass filter can be set to 50 Hz, 80 Hz, 160 Hz, or 300 Hz for management of unruly bass frequencies.
