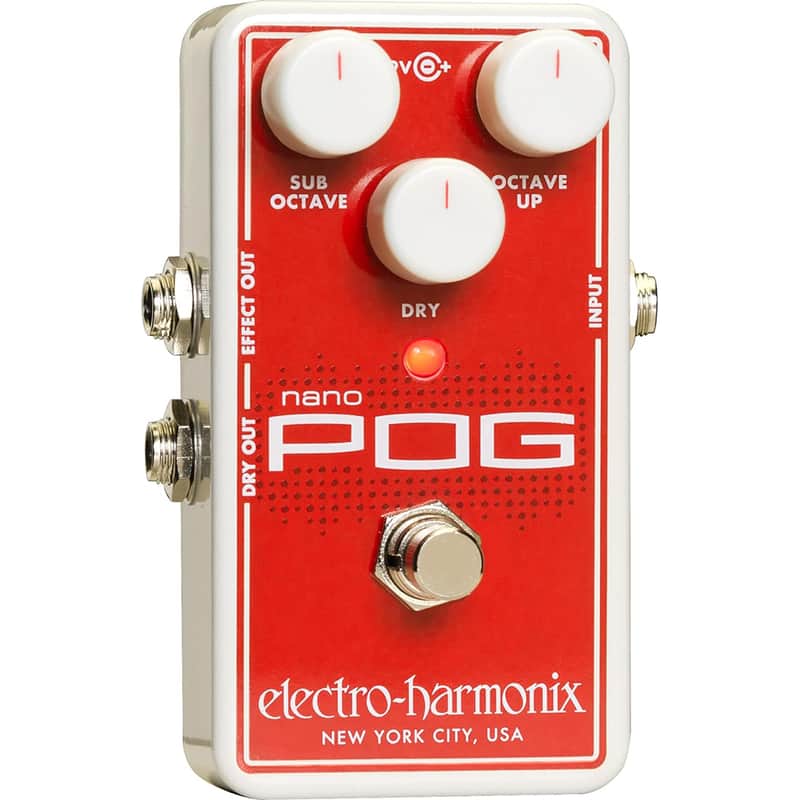

Electro-Harmonix Nano POG - Polyphonic Octave Generator

The smallest member of the polyphonic POG clan provides impeccable tracking and sound!

The EHX Nano POG can simultaneously generate multiple octaves from your input signal. Whether you play single notes, arpeggios, or full chords, the Nano POG will precisely track every note or chord that you play.

With the Nano POG, you can mix together your dry signal with two different octaves (one above and one below your original note) to create totally new, inspiring tones.

Separate level controls for dry, sub octave and octave up plus an extra Dry out and silent footswitching provide the perfect formula for this compact jewel.

Product Highlights:

Super, space saving design

Tracks chords, sweeps or single notes with no hitches or glitches

Great 12-string guitar sound or turn your guitar into a bass

Amazing organ-like sounds

Adjustable original pitch volume, one octave up volume and one octave down volume

Dry output jack in addition to the effect output jack

Silent footswitching and road worthy die-cast package

Power adapter included

Product Features:

Sub Octave Knob: Controls the output volume of the SUB OCTAVE signal.

Octave Up Knob: Controls the output volume of the OCTAVE UP signal.

Dry Knob: Controls the output volume of the DRY signal at the EFFECT OUT jack.

Effect Out Jack: Outputs the effect.

Input Jack: This is the audio input.

Dry Out Jack: Outputs a buffered version of the input signal.

Footswitch: Toggle between effect and bypass modes.

Product Specifications:

Circuit: Digital

Bypass: Buffered Bypass

Audio: Mono

Power Supply: 9.6VDC-200mA power adapter included (optional 9V battery not included)

Dimensions (in): 4.5 x 2.75 x 2.1

Current Draw: 25mA

Year Released: 2015

UPC: 683274011653
