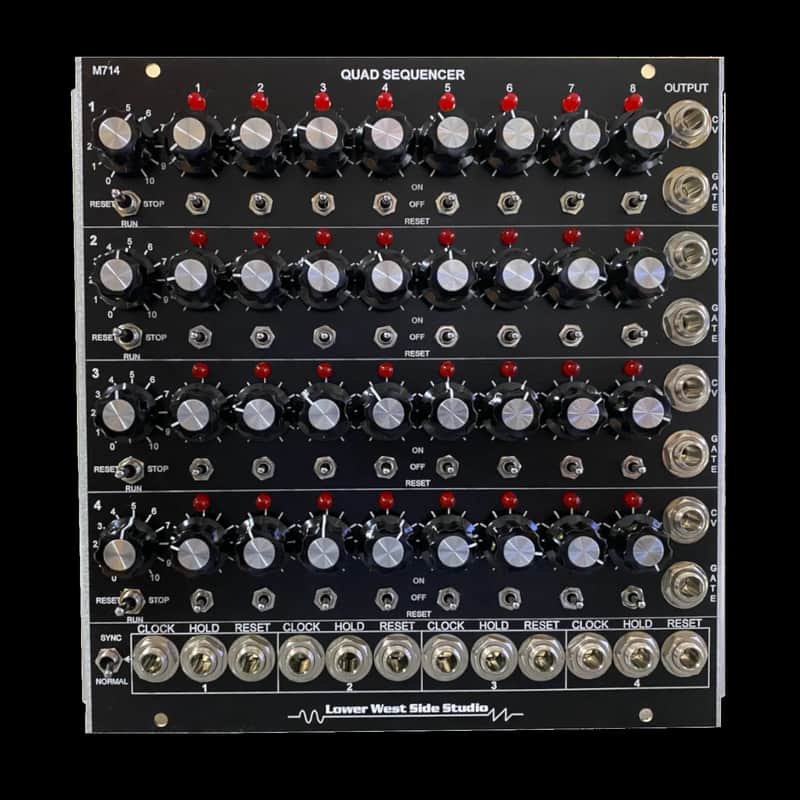

Lower West Side Studio - M714 Quad Sequencer [5U]

Lower West Side Studio’s M714 Quad sequencer combines the power of 4  M710 Sequencers in a single module

In addition the the standard CV and GATE outputs  the M714 adds HOLD and RESET CV inputs for each sequencer.

Using the Sync switch Sequencers #2, #3 and #4 can have their clocks synchronized with the clock on Sequencer # 1.  This clock can be either the Sequencer #1’s internal clock or an external clock fed into Sequencer #1

Each Lower West Side Studio’s M710 Sequencer within the M714 provides powerful expandable sequencer features.

The M710 is an 8 step sequencer featuring an internal clock, individual step control.  The Sequencer also features expansion ports for connection to external like the M712 Sequencer Sidecar.

The  internal clock of the M710 features a very wide frequency range from approximately 4BPM up to audio range

Each individual Sequencer making up the M714 can include the addition of the M712 Sequencer Sidecar.  The M712 Sequencer Sidecar adds individual Gate and Trigger outputs are added for each step.  The M712 also features a user selectable OR output. In addition, the M712 adds a Clock Out as well as Hold and Reset CV inputs making the M714 an even more flexible sequencer system.
