Squarp Instruments Hermod Modular Brain 2017 - 2019 - Black
This seller has not set a shipping cost for Slovakia. Please contact them to ask about shipping.
Our users rate Reverb

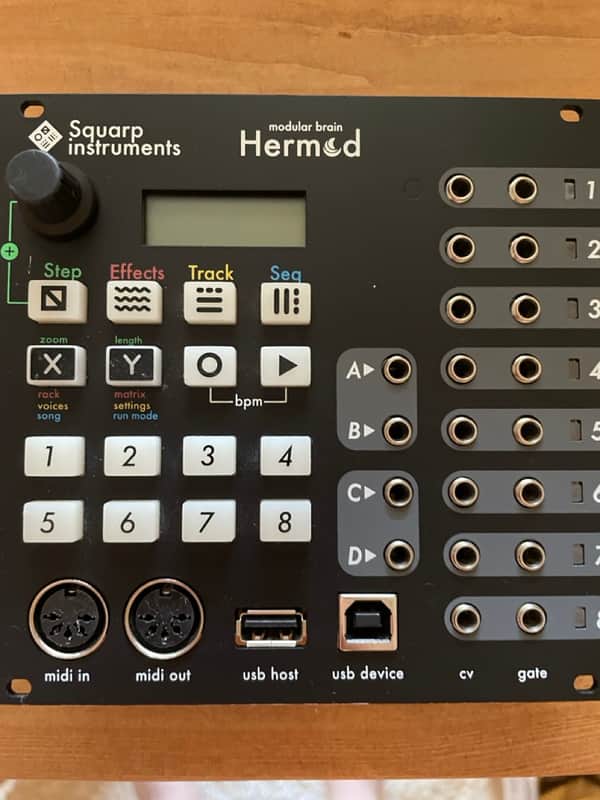

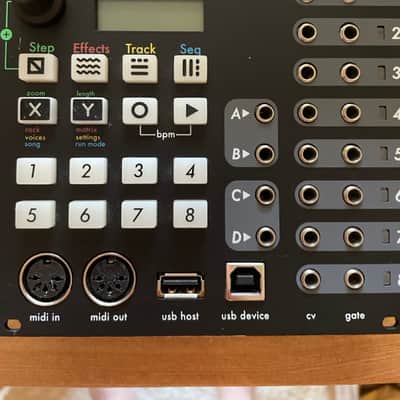

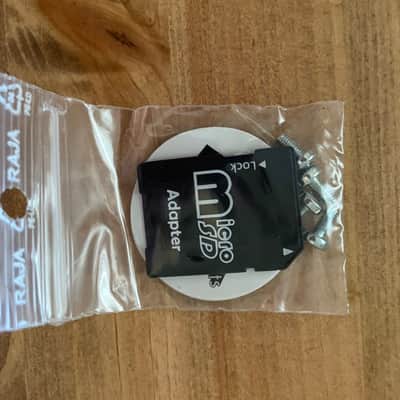

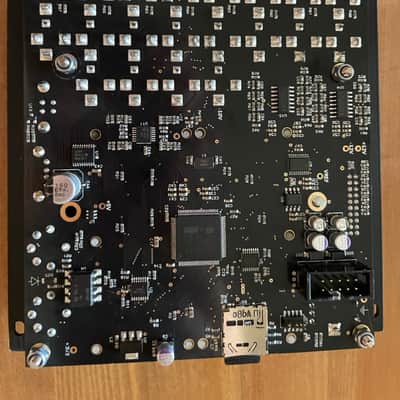

Includes SD card, adaptor and original box. Minor marks around the edge and on the top of a couple pots. See photos.
Advanced sequencer & interface for your studio. Perfect for composition and live performances.
Based on the original Hermod proven workflow and keeping the same form factor, Hermod+ offers a lot of new features, and a refined, more playful interface with extended connectivity.
With its sleek design and advanced capabilities, it has been crafted to serve as the central hub of any modular setup, bridging the gap between Cv/Gate and MIDI.
Redesigned and rethought from the ground up, Hermod+ is more than just an upgrade to the original Hermod - it is a new and improved creation in its own right.
Drawing inspiration from the flagship sequencer Hapax, the device features a wide screen and a grid-based, step-by-step sequencer, as well as dedicated tracks buttons, which allow for a more streamlined and intuitive workflow.
PRODUCT SPECIFICATION
Sequencer
16 tracks : 8 CV/Gate + 8 MIDI
16 patterns per tracks
Recording resolution : 96ppqn
Track length : 1/16 note to 16 bars
Automation per patterns : modulation +
pitchbend + aftertouch + sustain
Dedicated tracks buttons
Projects
Amount of projects : unlimited
Tempo : 1 to 280 BPM
Global transpose track : yes
Double project architecture
Song chain length : 64 sequences
Piano roll
Zoom max : x8
Note/gate width : 1/256 note to 16 bars
Maximum polyphony per step : 24
Row edit (polyphony editing)
Note pitch : C0 to C10
Note velocity : 0 to 127
Synchonization clock speed
Max input rate : 1/96 = 24ppqn
Max output rate : 1/96 = 24ppqn
Input
MIDI : TRS + USB host + USB device
CV : 4x [-5V to +5V]
Output
MIDI : TRS + USB host + USB device
CV : 8x [-5V to +5V]
GATE : 8x [0V / +5V]
Dedicated Clock port
Dedicated Reset port for transport
Hardware
Width : 26HP
Depth : 20mm
Weight : 285gr (0.63lbs)
CV inputs resolution : 16-bit
CV outputs resolution : 16-bit
Display : OLED 58x16mm
SD card : microSD high speed (provided)
Note : the use of your eurorack +5V rail is configurable with a switch on the back of Hermod+
Consumption (not using +5V rail) : -12V 20mA, +12V 400mA (add up to +220mA when attaching a controller on USB host)
Consumption (using +5V rail) : -12V 20mA, +12V 20mA, +5V 820mA (add up to +500mA when attaching a controller on USB host)
This item is sold As-Described
This item is sold As-Described and cannot be returned unless it arrives in a condition different from how it was described or photographed. Items must be returned in original, as-shipped condition with all original packaging.Learn More.
| Listed | a month ago |
|---|---|
| Condition | Excellent (Used) Excellent items are almost entirely free from blemishes and other visual defects and have been played or used with the utmost care.Learn more |
| Brand | |
| Model |
|
| Finish |
|
| Categories | |
| Year |
|
| MIDI I/O |
|
| Horizontal Pitch |
|
| Synth Module Function |
|
| Modular Synth Format |
|
