The Rack - analog clock multiplier/divider or audio rate FUZZ

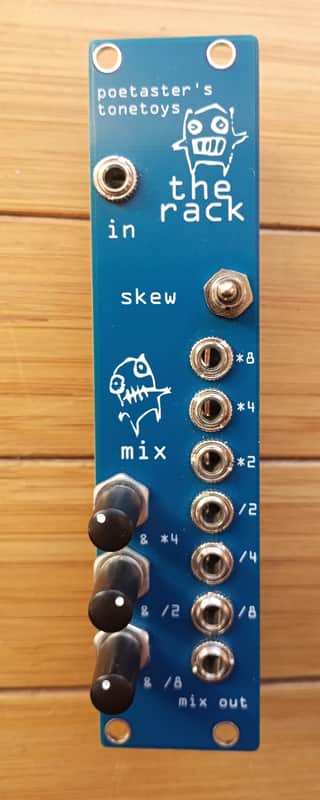

The rack is a 6hp wide analog eurorack module which can be used as an octave fuzz (8/4/2up or 2/4/8down) or a clock divider/multiplier. or mix pairs for mad fuzz. The outputs can be taken individually or *4, *2, mixed and summed with /2, /4 mixed with sum out on mix.

The circuit is of my own design but it's a very basic use of a phase-locked loop (4046 in CMOS land) combined with a binary ripple counter :) Ok, technical details aside, you can find some more information at which demonstrates some of the features. This is also open hardware and as such you can find design documents and produce your own if you would rather DIY ... github.com/poetaster/therack

The top panels are pcb material but top and bottom are copper filled. So they are almost as stiff as pure aluminum.

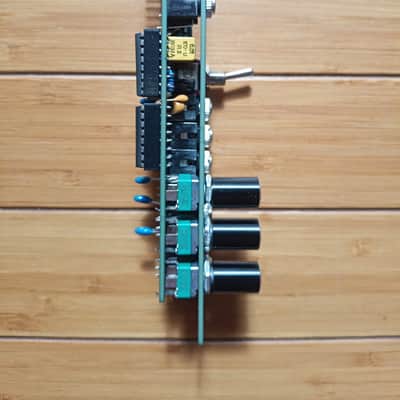

The unit is 6hp wide and deep.

Power consumed on +12 is approx 15mA.

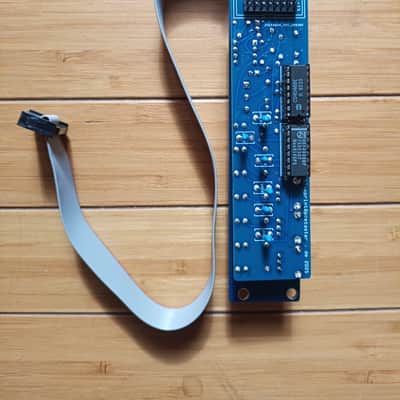

Includes a power supply cable.

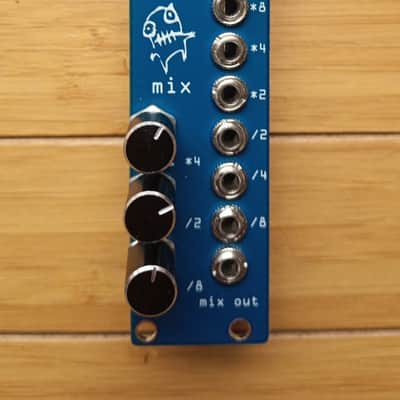

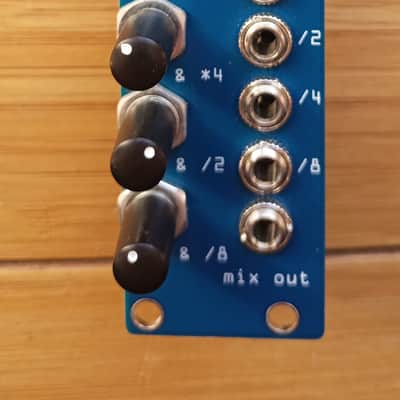

I made these for my own use, but always make more, since buying materials for only 2 units makes no sense. So, these are the overage out of my production for my own use. These units also have a minor error on the labels. The mix labels should read *4 & *2 for the first pot and /2 & /4 for the second pot with the sum of those on the last. I think this is a trivial thing, but, just to be clear!
