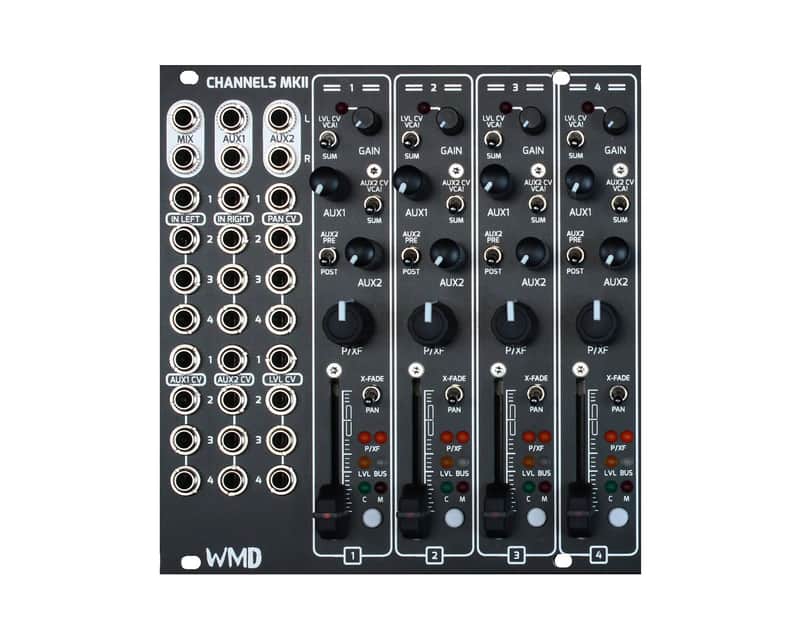

WMD PM Channels MKII Four Channel Mixer Standalone or Expand the PM MKII

Need More Inputs? Add four channels at a time to your Performance Mixer MKII setup, or you can use the Channels MKII as a standalone four channel mixer.
Simple expansion - identical channels, just more of them. Four at a time, up to four Channels units, for 24 total stereo channels.
A simple 16 pin 2mm pitch expansion cable is provided and is the only connection necessary. Units can be daisy-chained easily resulting in a clean setup.

• 4 Stereo or Dual Mono Inputs
• 2 x Stereo Auxes
• Soft Mute Per Channel
• Clip Indicator on Input Gain Pot
• Channel strips are field replaceable if a pot or fader fails
• CV control over Pan, Level, Aux1, and Aux2
• Channel Inserts: Rear cables per channel allow for future insertable effects
• Pan/Crossfade Switch for dual mono inputs per channel (panned center)
• Rear Headers for Pre and Post Fader/Pan outputs to DB25
• LEVEL and AUX2 CV can SUM or operate as VCAs
• AUX2 can be Pre Fade or Post Fade
• Firmware Update via Connection to PM MKII
• All features of PM MKII when connected as expander (MIDI, CUE, GROUP, BUS) Integrated Soft Start on Power Up

• 24 HP 36 mm deep
