Bruel & Kjaer Type 2209 Class 1 Sound Level Meter

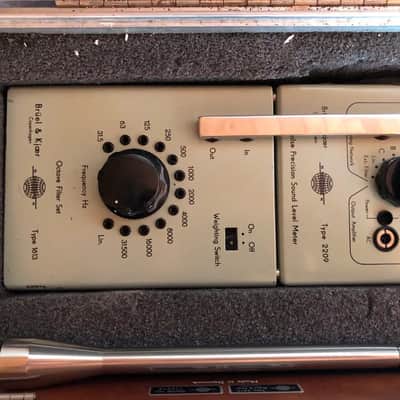

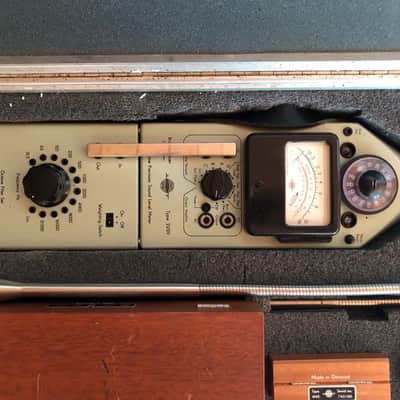

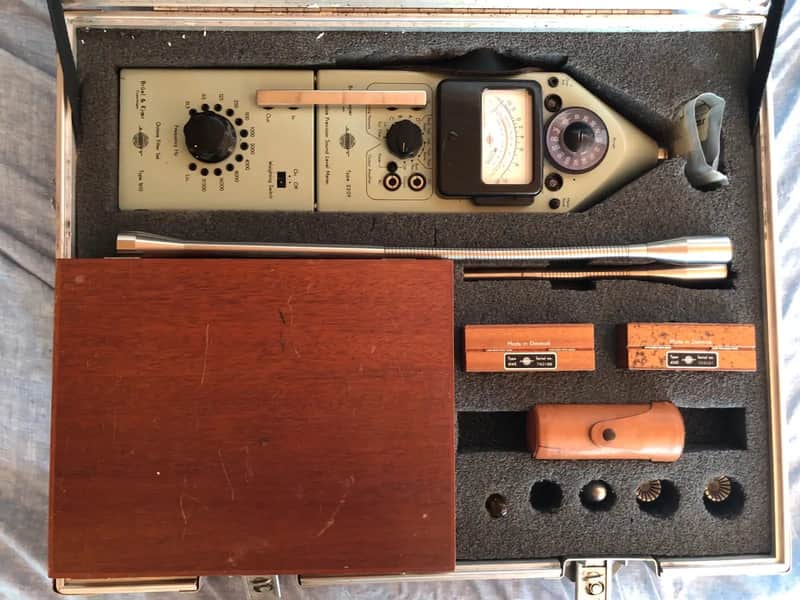

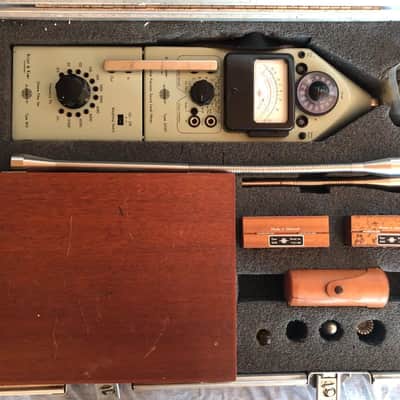

For Sale is a B&K Type 2209 Impulse Precision Sound Level Meter (Class 1 ) With Octave Filter Set Type 1613. This combo is in great working and physical condition. It includes the following:

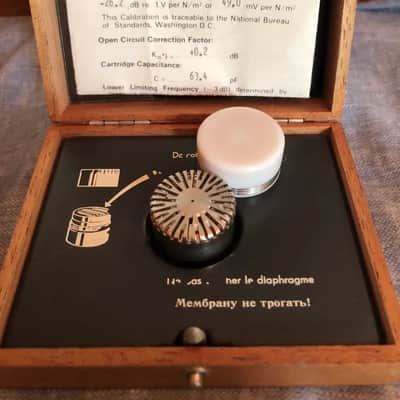

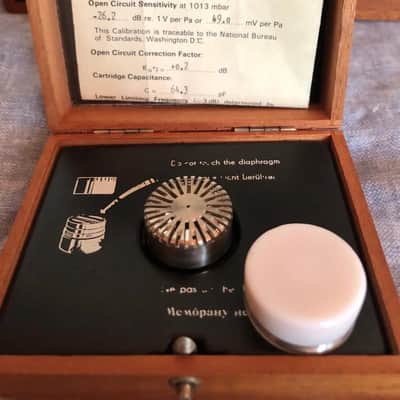

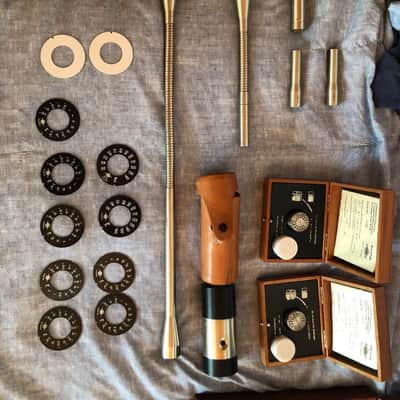

2 x Condenser Microphone Cartridge Type 4145, 1/2" Diameter 15-140 dB Range

1 x Condenser Microphone Cartridge Type 4135, 1/4" Diameter 64-162 dB Range

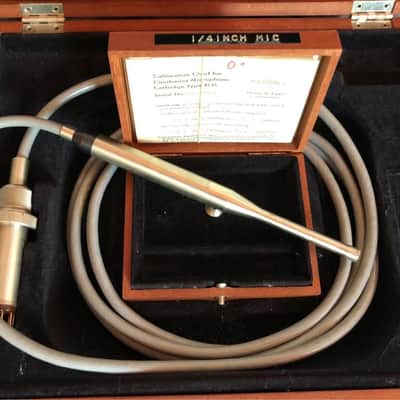

1 X Cathode Follower Type 2615 with 1/4" Diameter preamplifier, for Type 4135/4136 1/4" Diameter Microphone.

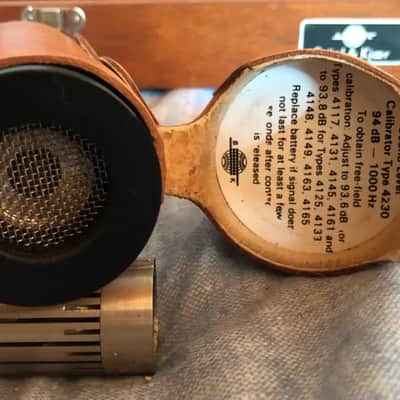

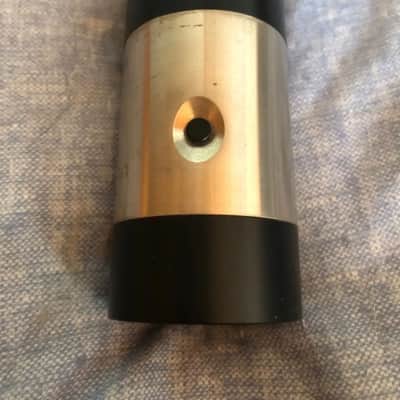

1 x Sound Level Calibrator Type 4230 94dB – 1000Hz for 1/2" Diameter Microphones 1 x 1a/b to 10a/b scales

1 x Flexible Microphone Adapter Type UA0196 – 8.25’’ in Length

1 x Flexible Microphone Adapter Type UA0039 - ''Goose Neck''

2 x Random Incidence Corrector Type UA055 for 1/2" Diameter Microphone

1 x Parabolic Nose Cone for 1/2" Diameter Microphone

1 x B&K Adjustment Flat Screwdriver

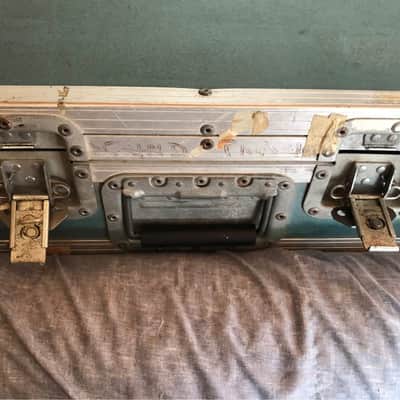

1 x Rugged Aluminium Transport Case

**This item is sold As-Described**

This item is sold As-Described and cannot be returned unless it arrives in a condition different from how it was described or photographed. Items must be returned in original, as-shipped condition with all original packaging.

Technical Details:

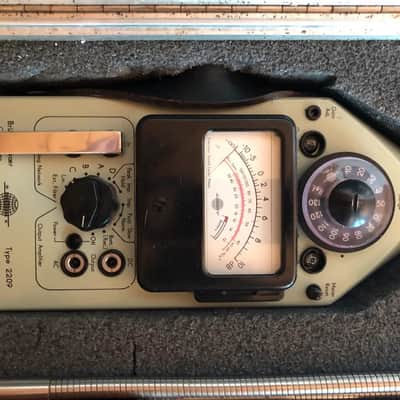

The Bruel & Kjaer 2209 Impulse Precision Sound Level Meter complies with all existing standards for impulse and precision sound level meters. More specifically, it is a Class 1 Sound Level Meter that complies with the IEC 61672-1:2013 standard. The Bruel & Kjaer 2209 is equipped with: individually calibrated condenser microphones (see list above); an internal reference voltage for calibration; "Lin.", "A", "B", "C", and "D" weighting networks; impulse and peak detectors with "Hold" circuits, as well as "Fast", "Slow" and "Impulse" meter responses; overload warning lamps; and an AC and DC output for connection to recorders, etc. The 2209 can handle crest factors as high as 40, and has a selectable low-frequency cutoff. External filters can be directly attached, and a wide range of accessories are available. The Bruel & Kjaer 2209 can also be connected to an accelerometer for the measurement of vibration. An interchangeable meter scale and a range of attenuator scales facilitate the direct reading of vibration (as well as sound or voltage) over a wide range. Bruel & Kjaer 1613 Octave Filter Set: 11 Octave Filters Center Frequencies: 31.5 Hz to 31.5 kHz Connects directly to 2209 Sound Level Meter
