Dynamic Percussion Interface

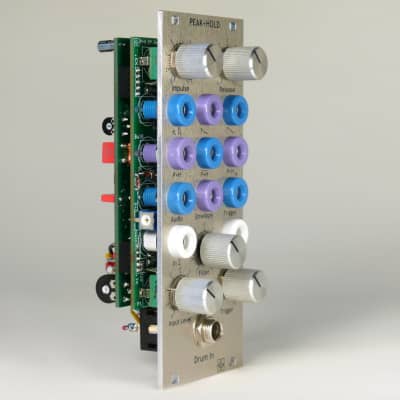

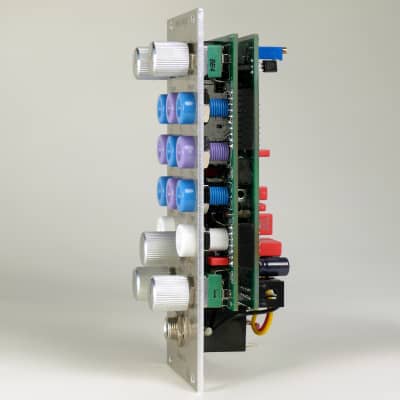

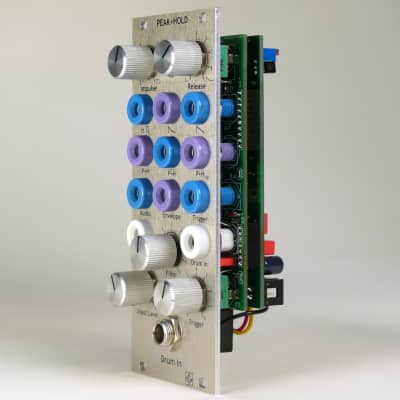

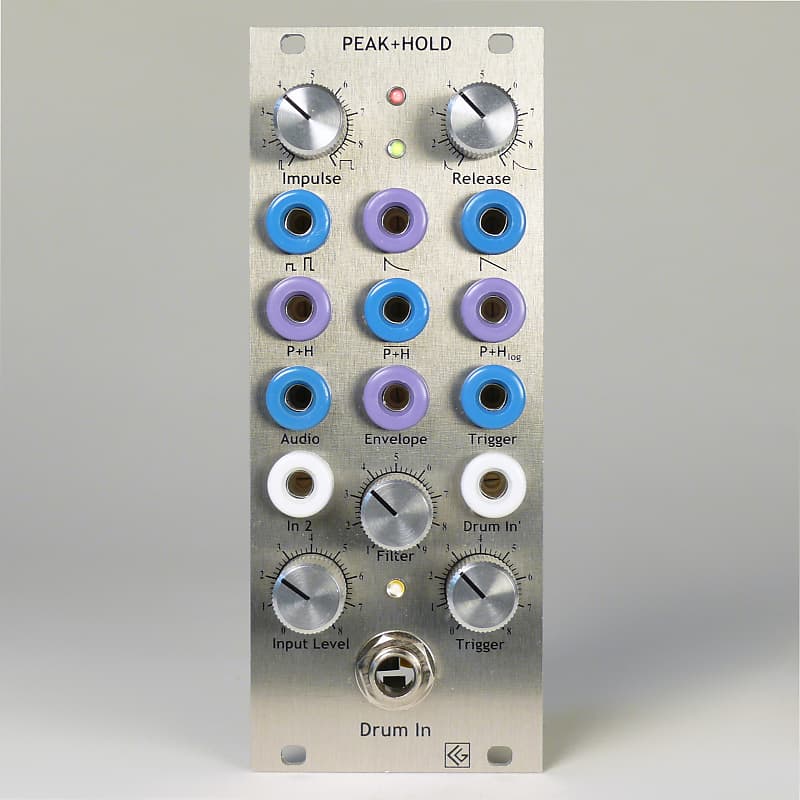

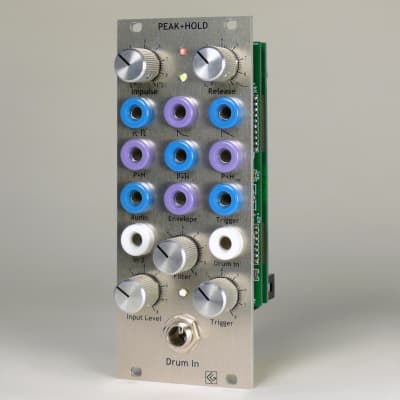

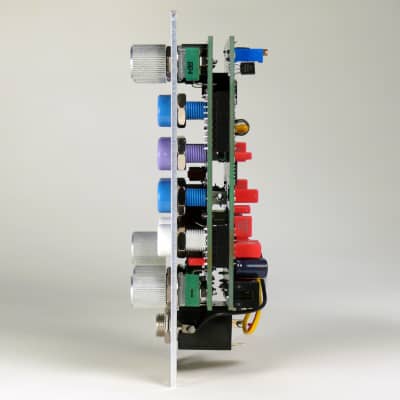

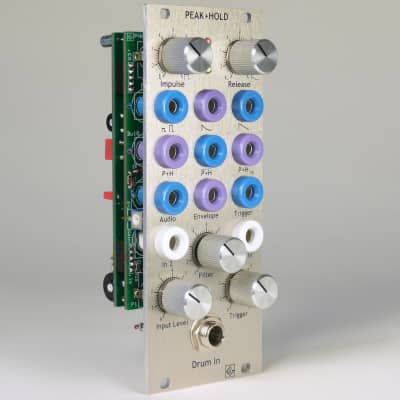

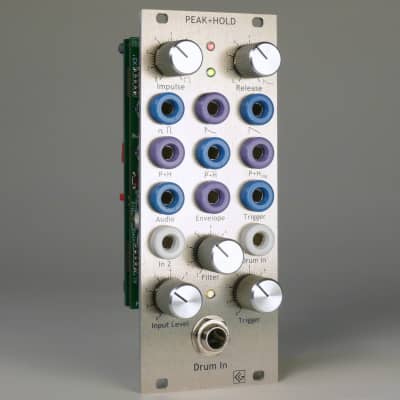

Banana version of the Peak+Hold in 'Helene' style. Functions, technical specifications and dimensions (3U) are identical to those of the minijack version.

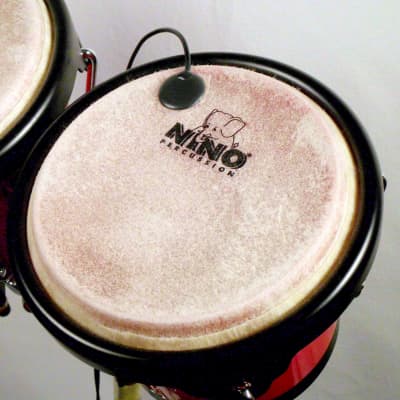

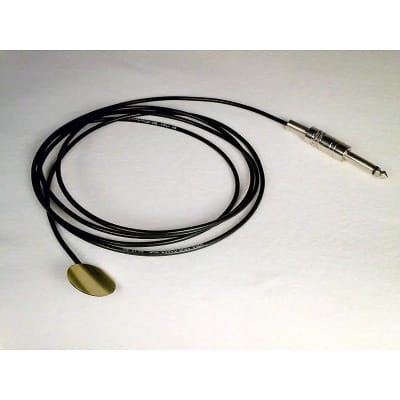

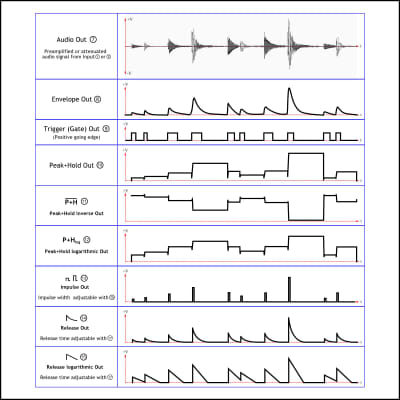

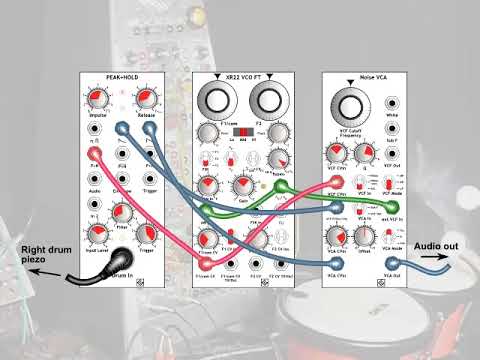

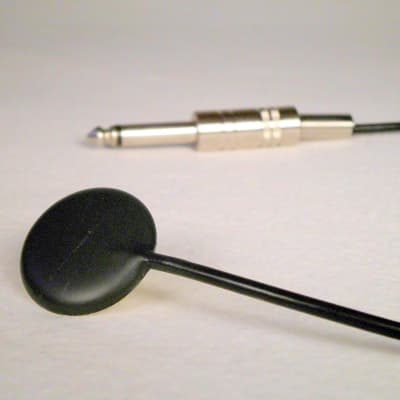

The Peak+Hold allows one to play and control analog synthesizer equipment using a drum with a pickup or any other percussive signal source. It generates 9 different CV/signal outputs from one input source. The Peak+Hold provides a velocity-dependent hold voltage (linear and logarithmic), a dynamic impulse signal (The length is adjustable by a potentiometer) e.g. for triggering filters or delays, a dynamic release signal (linear and logarithmic; release time adjustable by a knob), an envelope and a trigger signal output. Additionally, the original sound signal (amplified) is available for further signal processing.
The input stage is equipped with adjustable level and trigger controls and a envelope filter for flexible adaptation of different percussive instruments – such as long or short sounding, high or low drums and cymbals. Furthermore, there is a 2nd input which can be added to cascade two Peak+Holds or to add another signal source; as well as a minijack (1/8') input which can replace the large 1/4' jack input.
Without pickup, the Peak+Hold can be used for creating additional CVs and triggers from any percussive input signal (like from a drum machine or an audio player).
- Width: 10 HP (50,5 x 128,5 mm)

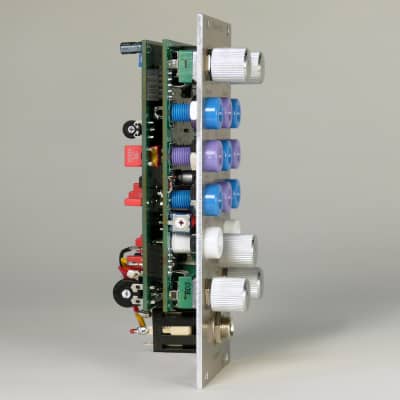

- Depth: 35mm
- Dynamic signal processing
- 9 different CV/signal outputs
- Manual level, trigger threshold and filter controls of the input signal

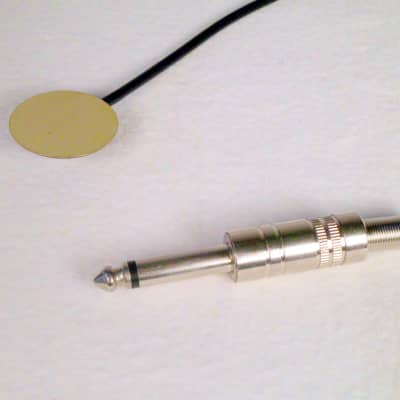

- without pickup
- Power consumption (+12V): max. 75 mA
Please note: For connection of CG Products banana modules to external devices a common ground connection must be ensured. If there isn't already a ground connection via e.g. a common power supply, we recommend the CG Products PCV-2. The PCV-2 provides a safe ground connection and interfacing with minijack and 1/4' jack.
