4.5-Inch 2-Way Active Studio Monitors With EBM Wave Guide

The Eris® Studio 4 sets a new standard for compact studio monitors. With its surprising amount of low-end and a wide, well-controlled sweet spot, you can enjoy premium, accurate monitoring in even the smallest of mixing spaces. Designed for superior performance in both home studios and small professional mix rooms, the Eris Studio 4 combines flexible connectivity with sonic accuracy that puts it a class all its own.

The custom-designed EBM (Elliptical Boundary Modeled) waveguide provides superior high-frequency response that allows you to hear the finest details in your mix, while a wide 120-degree horizontal dispersion creates a broad sweet spot with lifelike stereo imaging. Narrow vertical dispersion reduces reflections from your desk, and a silk-dome tweeter ensures snappy, accurate transient reproduction.

The 4.5-inch, woven-composite, low-frequency driver produces tight, clear bass with plenty of punch that defies the Eris Studio 4's space-saving size. The ported enclosure and 50W of biamped power combine to maximize bass response and allow the Eris Studio 4 to reach down to an astonishing 55 Hz - without a subwoofer!

Flexible input options let you connect almost any line-level source, from mixers to audio interfaces and more. You'll have no problem hooking Eris speakers up to virtually anything.

Features

4.5-inch, woven-composite, low-frequency transducer

1-inch (25 mm), ultra-low-mass, silk-dome, high-frequency transducer

120˚(H) x 60˚(V) EBM waveguide for wide sweet spot

Front-firing acoustic port for superior bass-frequency reproduction and optimized, resonance-suppressing internal bracing

50W, Class AB biamplification

55 Hz to 20 kHz frequency response

100 dB SPL (Peak, @ 1 meter)

Acoustic Tuning controls: HF (±6 dB, continuously variable); Midrange (±6 dB, continuously variable), and Acoustic Space (flat, -2, -4 dB), plus highpass filter (Off, 80 Hz, 100 Hz)

RF interference, output-current limiting, over-temperature, transient, subsonic protection and amplifier "soft start" feature (eliminates popping on power-up)

Internal power supply with IEC connector and power switch with on/off LED

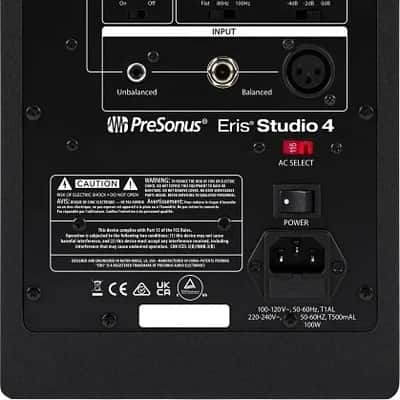

Balanced XLR and ¼-inch inputs and unbalanced RCA inputs

Set Up Your Studio Monitors For Your Room.

Eris® Studio 4 active monitors are equipped with Acoustic Tuning controls to ensure the flattest response in your mix environment. You get Low Cut, Mid, and High controls, as well as three-way Acoustic Space tuning that makes it easy to compensate for the boundary bass boost that occurs when a speaker is placed too close to a wall.

Set up your studio monitors for your room.

Honest. Expressive. Powerful.

Like all PreSonus® studio monitors, the Eris® Studio 4 offers consistent, accurate listening. Their stylish design makes them a welcome addition to any mix space, and their smooth, incredibly even frequency response ensures that your mixes will sound great everywhere.

Honest. Expressive. Powerful.

Measurements

Width

7" (17.8 cm)

Height

10" (25.4 cm)

Depth

7.28" (18.5 cm)

Weight

8.8 lbs (4 kg)

Electronics

Voltage Requirements

100-240 VAC, 50-60 Hz

Connection Type

IEC

Hardware

Cabinet Material

Vinyl-Laminated, Medium-Density Fiberboard

Monitors

Protections

RF Interference

Output-Current Limiting

Over-Temperature

Turn-On/Off Transient

Subsonic Filter

Audio Switches

Acoustic Space (Flat, -2 dB, -4 dB)Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)

Audio Controls

VolumeHigh Frequency (±6 dB, center 10 kHz, continuously variable)Mid Frequency (±6 dB, center 1 kHz, continuously variable)

Peak SPL

99 dB (@ 1 meter)

Crossover Frequency

2.7 kHz

Monitor Inputs

1- Balanced XLR, 1- Balanced 1/4” TRS, 1- Unbalanced RCA

HF Transducers

1” Ultra Low Mass, Silk Dome Tweeter

LF Transducers

4.5" Woven Glass Fiber Composite

Frequency Response

55 Hz - 20 kHz

Input Impedance

10 kΩ

Coverage Pattern

120 degree (H) x 60 degree (V)

Monitor Amplifier Power

50W Bi-Amped

Specifications

Input Impedance

10 kΩ
