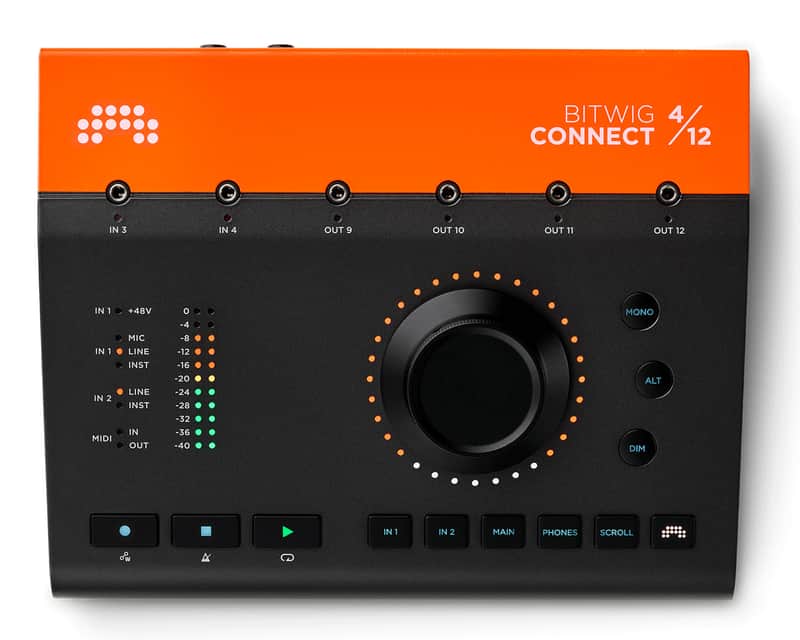

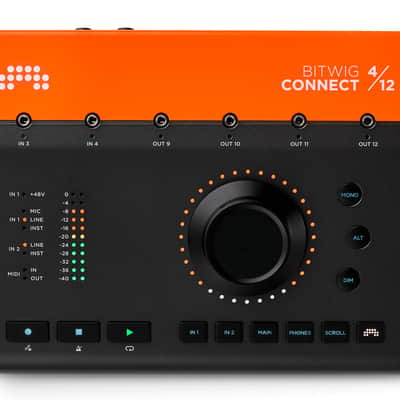

Bitwig Connect 4/12 4‑in/12‑out CV & MIDI‑Enabled Audio Interface for Eurorack

Connect is a versatile three-in-one unit that combines an audio/MIDI interface, monitor controller, and DAW controller in a single compact device. At the centre is a 360° touch-sensitive dial, supported by six dedicated mode buttons, giving you fast and intuitive control over both hardware settings and software parameters.

Adjust input gain, control volume for dual monitor outputs and headphones, navigate your timeline, and fine-tune parameters within Bitwig Studio with precision. The workflow is tightly integrated, with gain settings saved directly into your Bitwig sessions, so everything recalls exactly as you left it.

The front panel provides clear, immediate feedback via detailed input and output metering, while a ring of 32 RGB LEDs around the dial visualises parameter values and automation in real time.

Key Features

• Combines audio interface, monitor controller, and DAW controller
• Seamless integration with Bitwig Studio
• 360° touch-sensitive dial with LED feedback ring
• Store and recall gain settings within Bitwig projects
• Dual monitor output control plus dedicated headphone output
• Integrated transport and monitor control buttons

Connectivity & Specs

• Combo XLR / 1/4" mic, line, and Hi-Z input
• 1/4" line / Hi-Z input
• 6 x 1/4" line outputs
• Headphone output
• 6 x 3.5mm TS DC-coupled audio/CV I/O
• 3.5mm MIDI I/O
• 24-bit / 192 kHz audio conversion
• Bus-powered via USB
• Compatible with macOS, Windows, and Linux

Included Software

• Bitwig Studio Essentials
• Bitwig Circle
