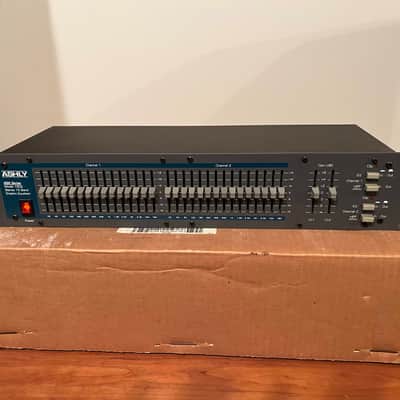

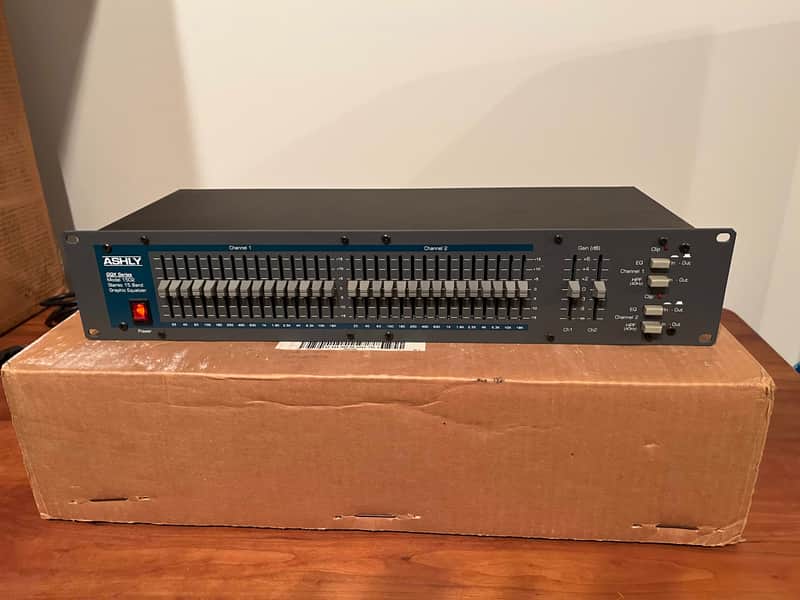

Ashly GQX series model 1502 15 band graphic equalizer - USA made - dark grey - original owner and packaging

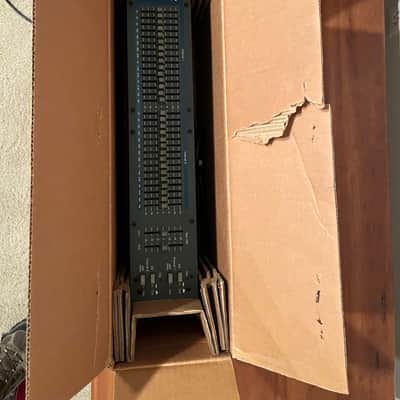

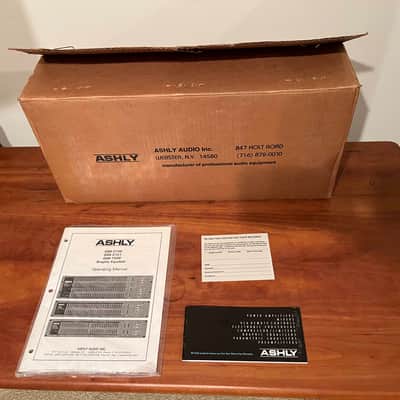

For sale is an Ashly GQX series model 1502 dual channel equalizer. I am the original owner and it will be shipped in the original box. Included is the manual, an old Ashley catalogue, and the original warranty (expired, of course).

I recently re-categorized this device from Pro Audio to Home Audio. I noticed a lot of inferior EQs being sold for a higher price than this US made workhorse of an EQ.

I've been downsizing my gear closet for a while, and this is one of the remaining pieces I'm selling. I just didn't want to get rid of it. It performs perfectly, is quiet, there's no noticeable phase shift while equalizing program material, and it is reliable. Each channel operates independently, EQ can be toggled in/out, each channel has a fixed defeat-able high pass filter (HPF), you have +/- 15db of boost/cut, the power cord is integrated, you have XLR, TRS, and terminal strips for input and output.

I used it in two situations: Live Performance and Analogue Studio mixdown. The headroom and sensitivity allow this to be used in all situations: home audio, studio, or pro sound applications.

Ashly quality is impeccable. This product line was made in the USA and the build quality is excellent. You'll have this piece running for a long time.

Please read my feedback/reviews - I take really good care of the equipment I owned. As with this piece, most is shipped in the original packaging and has the operating manual.

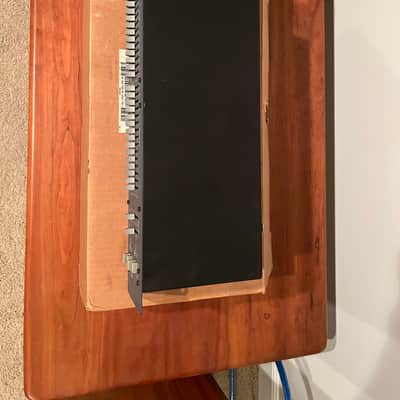

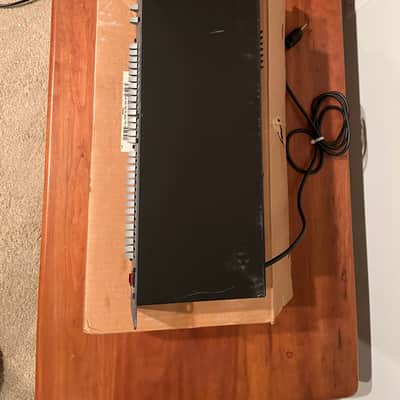

The condition of this is excellent, although there is a slight amount of rack rash on the top and bottom panels when installed or removed from a rack. The faceplate is in great shape. All connectors and sliders are good.

SPECIFICATIONS Model - GQX1502

• Input Type - Active Balanced
• Impedance - 20KΩ
• Max. Level - +23dBu
• Connectors - 1/4" Phone Jack, XLR & Barrier Strip
• Output Type - Servo-Balanced
• Source Impedance - 200Ω
• Min. Load Impedance - 600Ω
• Max Level -+23dBu
• Connectors - 1/4" Phone Jack, XLR & Barrier Strip
• Overall Frequency Response - ±.25dB
• Total Harmonic Distortion - <.01%@+20dBu
• IM Distortion (SMPTE) - <.01%@+20dBu
• Output Hum and Noise (unweighted)- -96dBu
• Channel Separation - >85dB @ 1KHz
• Gain Control - -∞ to +6dB
• (EQ in, all faders flat, 20Hz-20KHz unless otherwise noted)
• Filters Type - Constant Q/Wein Bridge
• Number - 2×15
• Bandwidth - 2/3 octave
• Tolerance - ±3%
• Range - ±15dB
• Subsonic Filter - 18dB/octave @40Hz
• Power Requirements
• Nominal Voltage - 120VAC, 50-60Hz (240VAC available)
• Minimal Voltage - 93VAC
• Power -24W
• Shipping Weight - 10lbs
• Dimensions -19"Lx3.5"(5.25")"Hx6"D
