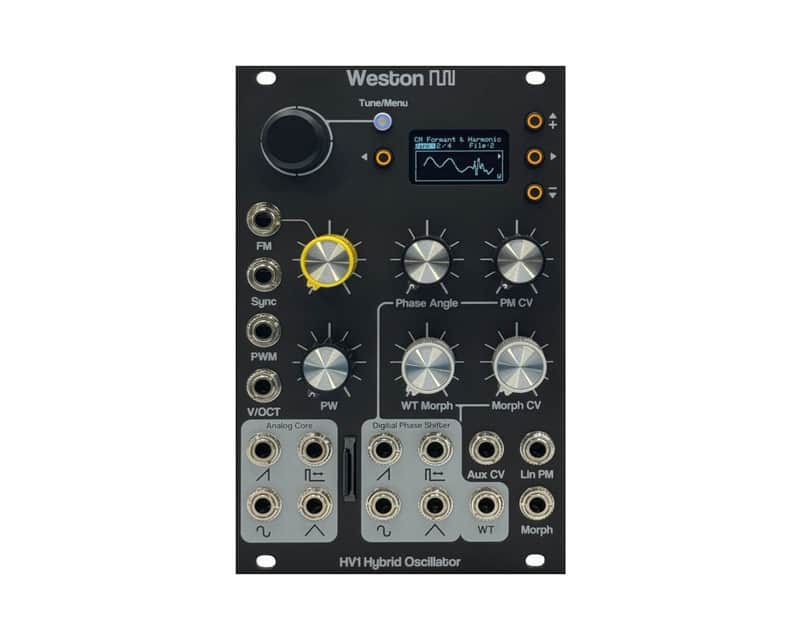

Weston Precision Audio HV1 Hybrid Oscillator

HV1 is an oscillator that brings you the best of both the analog and digital worlds: At the core is a stable, great-tracking, analog triangle core VCO. The triangle is fed into a digital phase shifter, which outputs a phase-shifted triangle and morphed wavetable waveform.
The phase-shifted triangle is also transformed into a complementary set of sawtooth, pulse, and sine waveforms using analog circuitry. The digital waveforms are both 16kHz / 150kHz resolution, with available anti-aliasing, making them right at home with the analog waveforms.

• Detune ability to make HV1 act like 2 separate, parallel oscillators
• True linear Phase Modulation & Through-Zero FM
• 16-way morphing wavetable output with ability to load WaveEdit format and Serum files from SD card
• Auxiliary CV assignable to wavefolding and bitcrushing effects
• Built in tuner function
• Great tracking and stability with 8 octave switch

• 16HP module size, 25mm Deep
• Power: 125mA +12V / 45mA -12V

• 16 HP 25 mm deep

Digital LFO Oscillator
