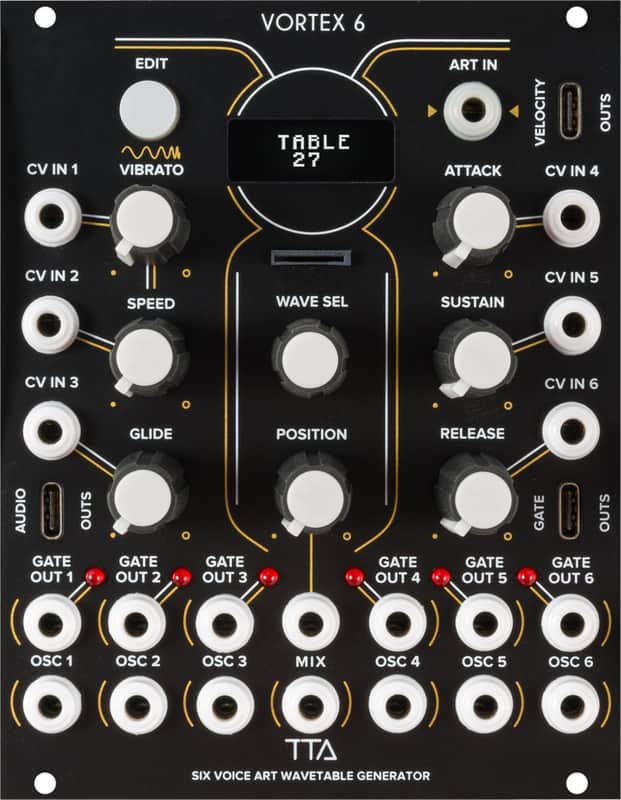

Tiptop Audio Vortex6 Polyphonic 6-voice Wavetable Oscillator Eurorack Synth Module, Black

Tiptop Audio's Vortex6 is a polyphonic 6-voice wavetable oscillator inspired by the hardware design and sound of the PPG Wave 2.2, and it is the only oscillator of this type that uses true 8-bit vintage audio converters from the ’80s. Dozens of wavetables are provided internally, and user tables can be loaded via an SD card. VORTEX6 has built-in vibrato, glide, and six wavetable-scrolling envelopes, all with CV. The ART-in jack and a built-in voice manager take care of incoming notes and distribute them to audio, gate, and velocity outs—either through per-voice 3.5mm jacks or the Polytip jacks.Together with OCTOPUS, one or more OCTOSTAGES, OCTOPASS, and OCTOGAIN, along with a few Polytip patch cables, it forms the world’s first complete six-voice polyphonic modular synth. Alternatively, VORTEX6 can be patched to discrete mono modules or use its voice mix-out for paraphonic soundscapes with up to 12 oscillators in detune mode.

Product Features

• 6-Voice Polyphonic Wavetable Oscillator
• Inspired by the PPG Wave 2.2
• Utilizes ART Data for Pitch Control, Incompatible with 1V/Oct
• Single ART Input with Internal Voice Allocator
• Internal Wavetables, User Wavetables Supported on SD Card
• Outputs Available on Individual 3.5mm Jacks or Consolidated Polytip Connections
• Mix Output Supports Paraphonic Playback and Up to 12 Oscillators in Detune Mode
• Internal Vibrato, Pitch Glide, and Wave Envelopes
• Gate Outputs for Modulation Synchronized per Voice

Attributes

• Color: Black

Technical Specifications

• Type: Synth Module
• Inputs: 1 x 1/8" (art), 6 x 1/8" CV In
• Outputs: 1 x 1/8" (mix), 1 x Polytip (proprietary, audio), 1 x Polytip (proprietary, velocity), 1 x Polytip (proprietary, gate), 6 x 1/8" Gate Out, 6 x 1/8" Voice Out, 1 x 1/8" Wavetable Position
• Processing Type: Digital
• Polyphony: 6 Notes
• Internal Memory: 1 x microSD Card Slot
• Power Supply: Requires Eurorack Case and Power Supply
• Controller: Edit Button, Wave Select Knob, Position Knob, Vibrato Knob, Speed Knob, Glide Knob, Attack Knob, Sustain Knob, Release Knob
• Oscillator: 6 x VCOs
• Waveform: Ramp, Triangle, Square, Sine
• HP Size: 20HP
