ADDAC511 VC Stochastic Voltage Generator

At ADDAC System we love all sources of unpredictability be it by randomness or signal complexity. This module greatly expands on the principles of our ADDAC501 Complex Random from 2013.

This is a fully fledged 4 channel voltage generator capable of all things random, with quantization, probability, distribution, interpolation, time control, clock, states and a 32 step sequencer.

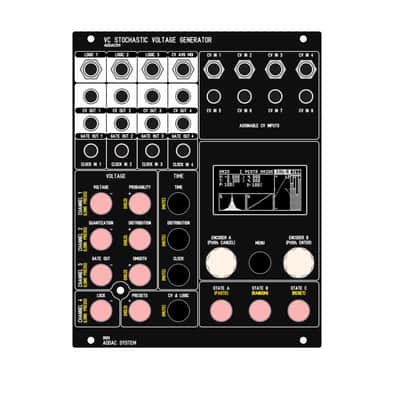

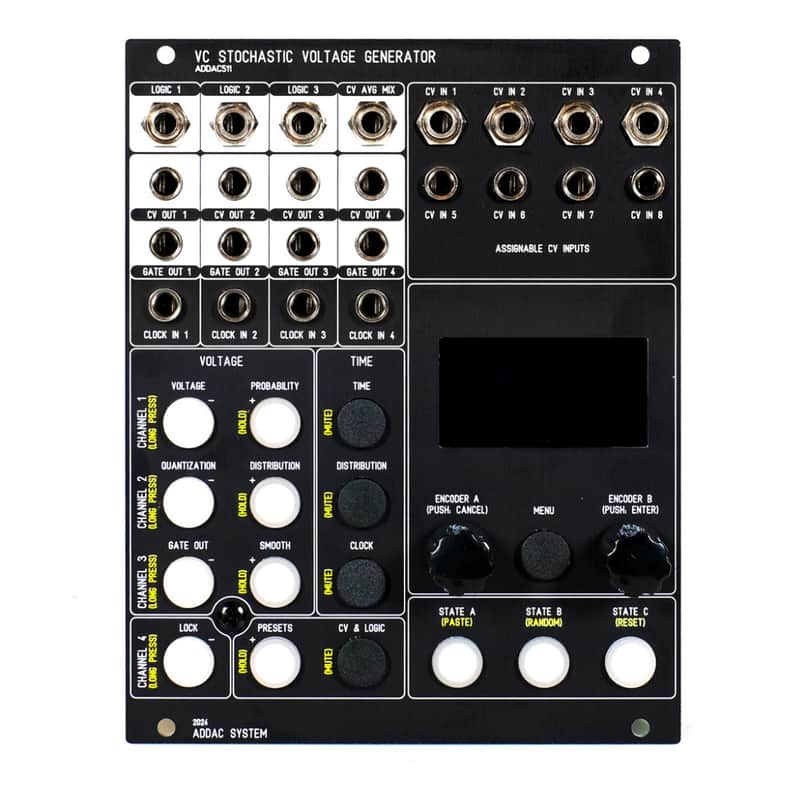

The module panel features a screen for parameter editing, and each button offers access to a single page of changeable parameters. This allows for a fast and fluid workflow across all settings so users can focus on their music. The combination of two encoders along with push buttons allow swift navigation and editing across all pages and their respective settings.

FEATURES
4 independent channels with bipolar CV / Gate outputs and  Clock Input that allow all things random.
Each channel can be set to generate either continuous Voltages, Envelopes or as a Quantizer.
Controls over Voltage Range, Quantization with custom scales, Probability, Distribution curves and Smoothing, plus time and bpm ranges, time distribution curves and several clock sources.
A 32 step sequencer per channel that can work completely independent or in sync.
Mutes and Holds per channel.
3 States per channel allow very fast settings changes, from smooth to drastic transitions.
8 Assignable CV inputs and 4 Gate inputs can be internally mapped to any setting of any channel.
3 configurable Logic / clock outputs allows complex logic events comparing different ins & outs or as clock outputs.
Average CV output of all 4 CV outputs. Easy VCO tuning available in the Menu.
Calibration and mapping of all 4 CV outputs is also allowed through the Menu

Tech Specs:
20HP
4.5cm deep
200mA +12V
100mA -12V

Note: All specifications and features are subject to change without previous notice.
