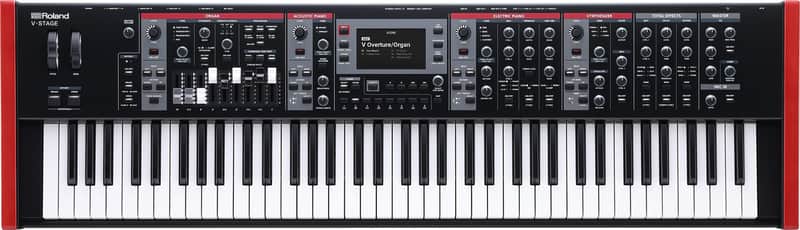

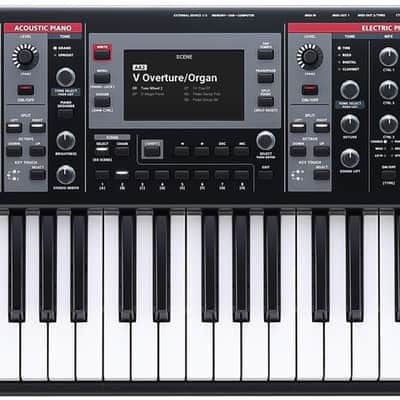

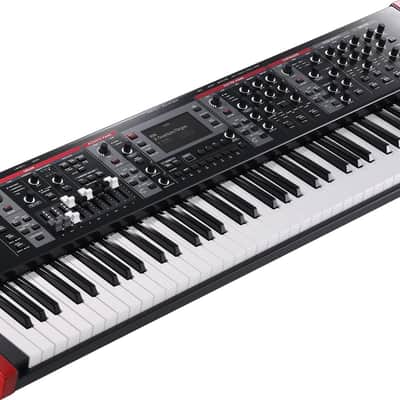

V-STAGE is the ultimate player’s instrument, elevating the all-in-one gigging keyboard to another dimension of creative control. Fusing Roland’s premium sound technologies with a fluid, purpose-built workflow, it delivers the versatility and responsiveness professional musicians demand. Experience unrivaled sonic expression with four advanced sound engines, elegantly intuitive interfaces, and exceptional playability for the best performance every time.

The V-STAGE 76 model features a newly developed 76-note semi-weighted keyboard with refined velocity detection and a waterfall feel for classic organ moves like glissandos and rakes.

KEYBOARD

• Keyboard: 76 keys with Waterfall semi-weighted keyboard and channel aftertouch

SPECIFICATIONS

• Scenes: 512 (including pre-loaded registrations)
• Scene Chains: 128

Effects

• Multi-Effects: 16 systems, 93 types
• Chorus: 9 types
• Reverb: 7 types
• External memory
• USB flash drive (supports USB 2.0 Hi-Speed flash memory: Sold separately)

Controllers

• Assignable Wheel x 2
• Assignable Switch x 2
• Display: Graphic LCD 4.3 inch

Connectors

• PHONES jack: Stereo 1/4-inch phone type
• MAIN OUT (L, R) connectors: XLR type
• MAIN OUT (L/MONO, R) jacks: 1/4-inch TRS phone type
• SUB OUT (L, R) jacks: 1/4-inch TRS phone type
• LINE INPUT (L/MONO, R) jacks: 1/4-inch phone type jacks
• MIC INPUT connector: XLR type
• PEDAL (HOLD,CTRL1,CTRL2,CTRL3) jacks: 1/4-inch TRS phone type
• MIDI (IN, OUT1, OUT2/THRU) connectors
• USB COMPUTER port: USB Type-C(R) (Audio/MIDI Class Compliant)
• USB MEMORY port: USB A
• 2 x External Device Port(USB A):Roland A-49 or an A-PRO series MIDI Controller can be connected. * Operation is not guaranteed if a generic MIDI device is connected.
• AC IN jack
• Power consumption: 30 W

Power consumption when in OFF mode (when the power automatically turns off): 0.3 W

Accessories

• Owner's Manual
• Power cord

Options (sold separately)

• Keyboard stand: KS-13, KS-11Z
• Piano pedal: RPU-3
• Damper pedal: DP-10
• Pedal switch: DP-2
• Expression pedal: EV-5
• USB flash drive (*)

* Use a commercially available USB flash drive. However, we cannot guarantee that all commercially available USB flash drives will work.

SIZE AND WEIGHT

• Width: 46-1/2 inches
• Depth: 13-1/2 inches
• Height: 4-5/16 inches
• Weight (excluding AC adaptor): 33 lbs 9 oz
