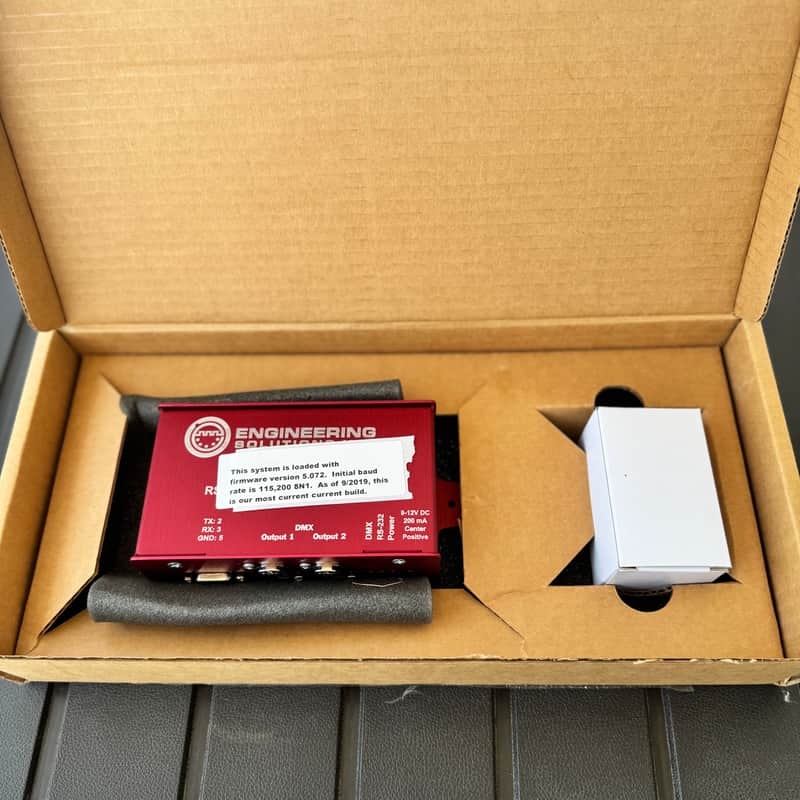

Engineering Solutions RS232 DMX Engine w/ Output Selection

Engineering Solutions RS232 DMX Engine with Output Selection – Versatile DMX Control Interface

The Engineering Solutions RS232 DMX Engine is a robust and user-friendly interface designed for seamless integration between RS-232 control systems and DMX512 lighting equipment. This device facilitates precise control over DMX-compatible fixtures, making it an ideal choice for applications in theaters, live events, architectural lighting, and more.

Key Features:

• Flexible Output Options: Available with combinations of XLR3, XLR5, and RJ45 connectors to suit various DMX output requirements.
• Global Compatibility: Ships with a 9V switching power supply, accommodating worldwide voltage standards.
• Standard DMX Compliance: Ensures compatibility with all standards-compliant DMX512 devices.
• Compact and Durable Design: Built to withstand rigorous use while maintaining a compact form factor for easy integration into existing setups.

Specifications:

• Power Supply: 9-15V DC, 200 mA, center positive; includes a 9V DC output, 300 mA switching power supply.
• DMX Output: Standard XLR pinout per USITT standards; utilizes official Neutrik XLR jacks.
• RS-232 Interface: Supports baud rates of 9600, 19,200, 38,400, 57,600, or 115,200, 8N1; user-selectable with default at 115,200.
• Connectors:
• • DMX Output: Options include XLR3 + RJ45, CAT5/RJ45/EtherCon, or X
