G-Storm Electro 2xVCA r3 Eurorack Dual VCA BA662F

Please note this module is discontinued and final batch. Grab one while they're still available to purchase.

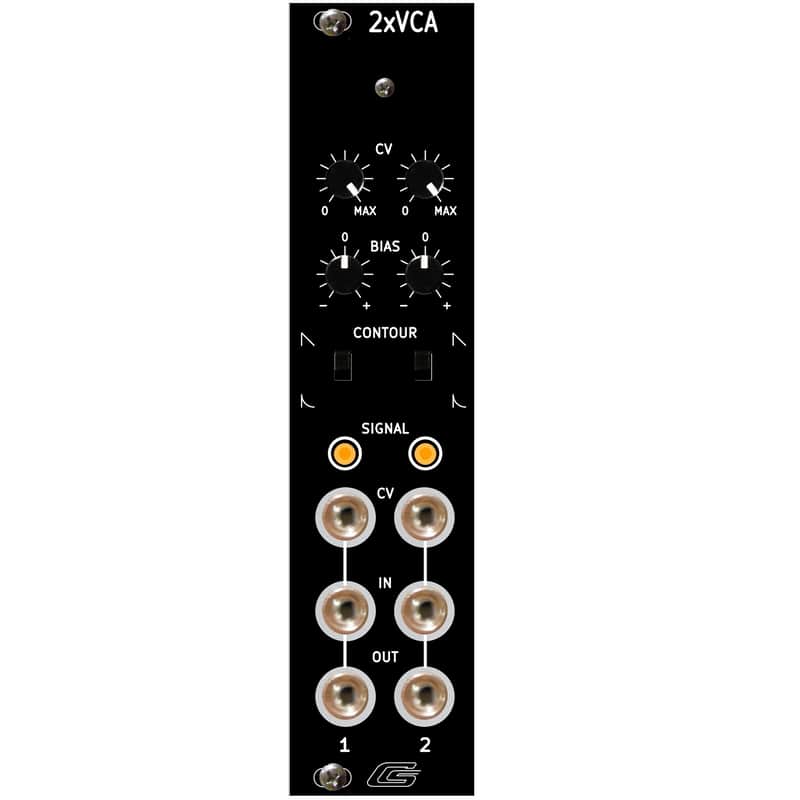

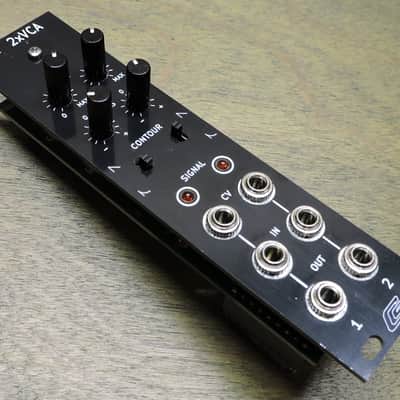

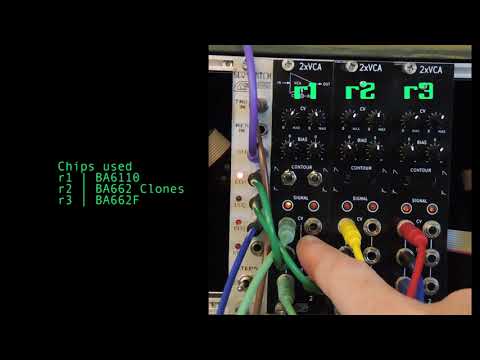

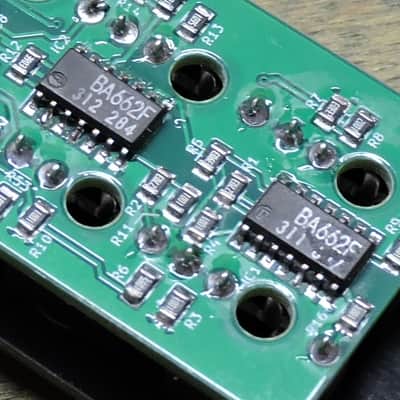

The 2xVCA r3  is two independent, fully analog DC-coupled amplifier circuits employing reclaimed BA662F chips. Version 3 is has the same great sound and functions as previous versions: jacks for input, output, and incoming bi-polar CV signal + an LED signal indicator.

CV ATTENUATION KNOB | Determines the amount of CV (control voltage) will affect the loudness.

BIAS KNOB | At 12 o’clock is silence. Turn CW it will behave like a volume knob. If the CV input is an LFO, the result can be tremolo. If the CV is an inverted (negative-going) envelope, the signal can be ducked. Similarly, turning the bias CCW will clip the lower portion of the CV signal.  If your CV is a positive envelope, the lower half of the envelope can be cut off.

LINEAR SWITCH SETTING | good for longer sustained sounds

EXPONENTIAL SWITCH SETTING | good for short, plucky percussion type sounds.

Every module is hand-assembled and ready to rock your world.  Be sure to check out my other cool modules available in my Reverb store.

INCLUDED | 16-pin-to-10-pin power connector cable.

NOT INCLUDED | Rack screws are not included due to large assortment and highly varying individual preferences, I personally use After Later Audio Rack Thumb Screws (sold separately).

Specifications:

• Inputs | 2 Signal Inputs, 2 Control Inputs
• Outputs | 2 Outputs

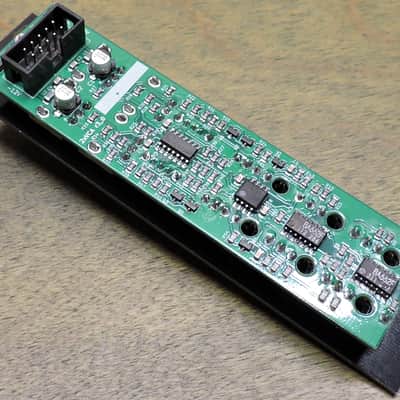

• Power | 10-pin Eurorack standard shrouded header
• Current | 19 mA +12V, 17 mA -12V, 0mA +5V (not used)
• Depth | 22 mm
