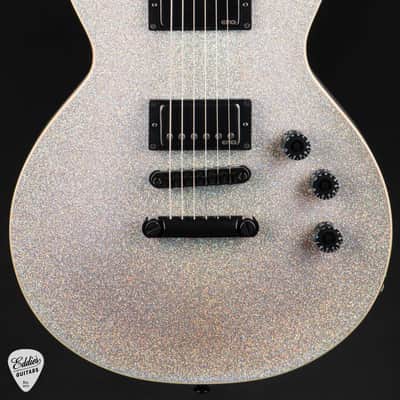

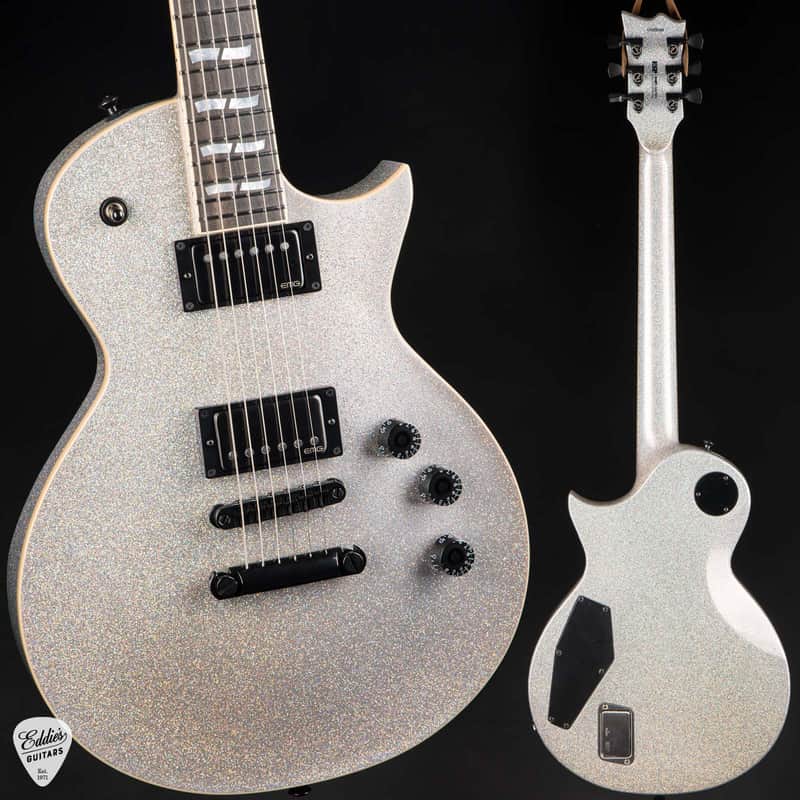

Crafted at our ESP USA facility in Southern California, the USA Eclipse is the classic single-cutaway shape that’s been at the heart of many of music’s greatest moments. The USA Eclipse offers a full thickness (60mm / 2 3/8”), a strategically chambered mahogany body for weight relief, with optional flamed maple and quilted maple tops and a wide variety of gloss and satin translucent finishes to allow the figured wood grain to be highlighted (and plain maple caps for solid color finishes). These guitars offer smooth set-thru construction at classic 24.75” scale, with a three-piece thin U-shaped three-piece mahogany neck and ebony fingerboard with 22 extra-jumbo Jescar stainless steel frets and mother-of-pearl split-flag inlays.

We chose the very best components available for the USA Eclipse, including Gotoh tuners, TonePros T3BT/T1Z bridge and tailpiece, Dunlop strap locks, and a bone nut. Pickups for the USA Eclipse include a variety of world-class Seymour Duncan (passive) and EMG (active) models, with a push-pull coil split control on the tone knob for passive pickup models. The USA Eclipse includes a high-quality ESP USA form-fitting hard shell case.

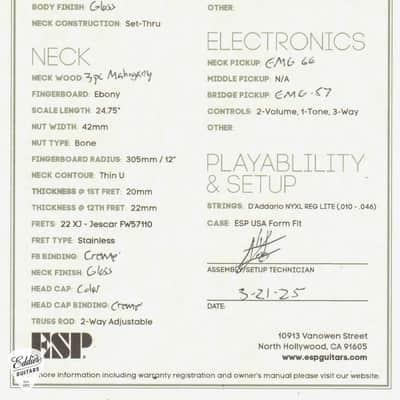

Other specifications include:

• BODY WOOD: Mahogany
• BODY TOP: Solid color
• BODY THICKNESS: 60mm

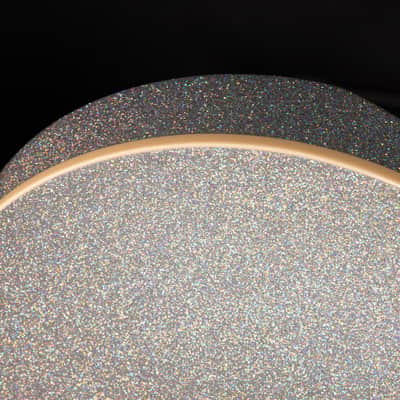

• BODY BINDING: 1 Ply Creme
• NECK CONSTRUCTION: Set-Thru
• NECK WOOD: Mahogany

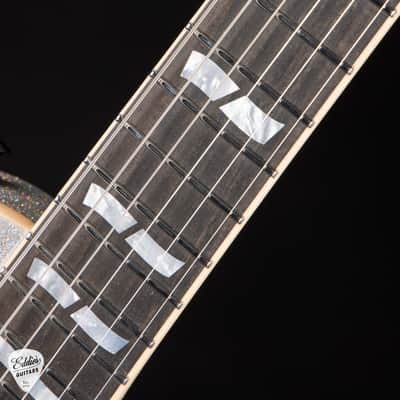

• FINGERBOARD: Ebony
• SCALE LENGTH: 24.75”
• NUT WIDTH: 42mm

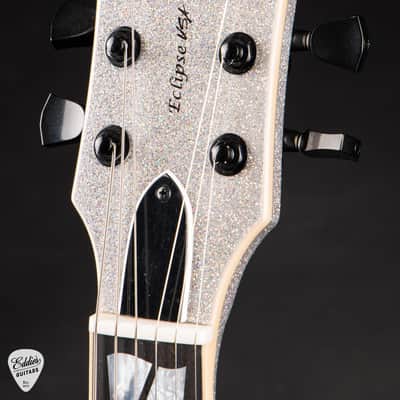

• NUT TYPE: Bone
• FINGERBOARD RADIUS: 305mm
• NECK CONTOUR: Thin U
• THICKNESS @ 1ST FRET: 20mm
• THICKNESS @ 12TH FRET: 22mm
• FRETS: 22 JESCAR FW57110 XJ Stainless
• FB BINDING: 1 Ply Creme
• NECK FINISH: Matching Color Gloss
• TRUSS ROD: 2 Way Adjustable w/ Graphite Reinforcements

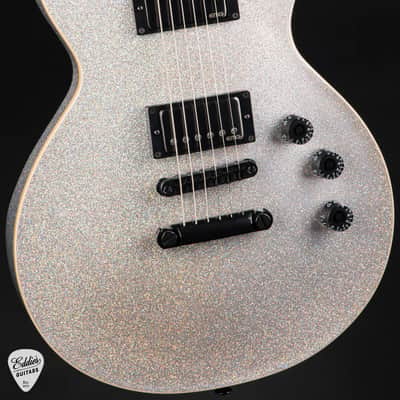

• BRIDGE: TonePros T3BT Locking TOM w/ T1Z Locking Tailpiece

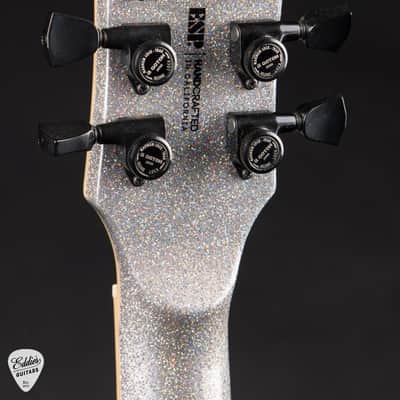

• TUNERS: Gotoh Mag Lock
• STRAP BUTTONS: Dunlop Locking

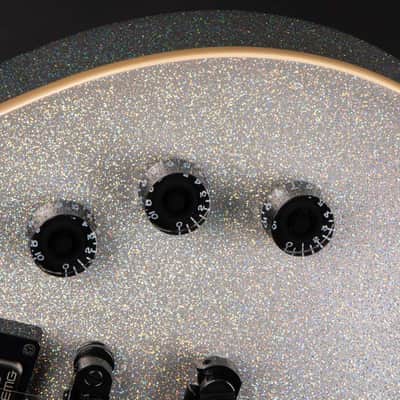

• CONTROLS: Vol/Vol/Tone/3-Way Toggle
• OTHER: Push Pull Coil Split on Tone
• STRINGS: D’Addario NYXL REG LITE (.010 - .046)

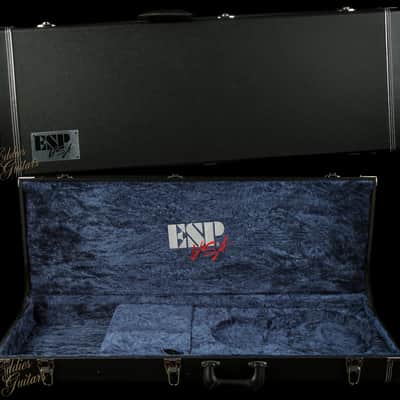

• CASE: ESP USA Form Fit

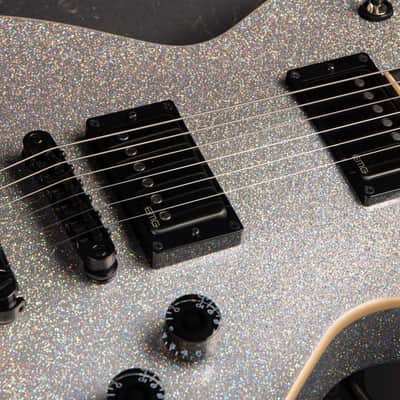

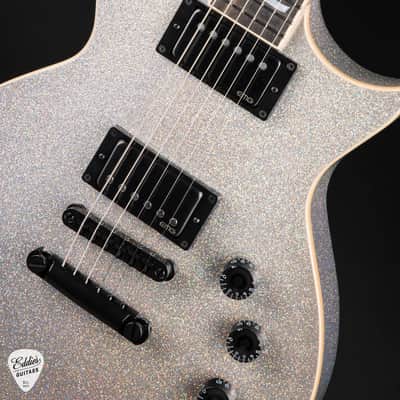

• PICKUPS: EMG 66 Neck, EMG 57 Bridge
• HARDWARE COLOR: Balck
• PICKUP RING COLOR: Black
• FINISH STYLE: Gloss
• ESP Form Fit Case
• 9 lbs 0 oz
• #US25081

For more information on this ESP instrument, please contact us.
