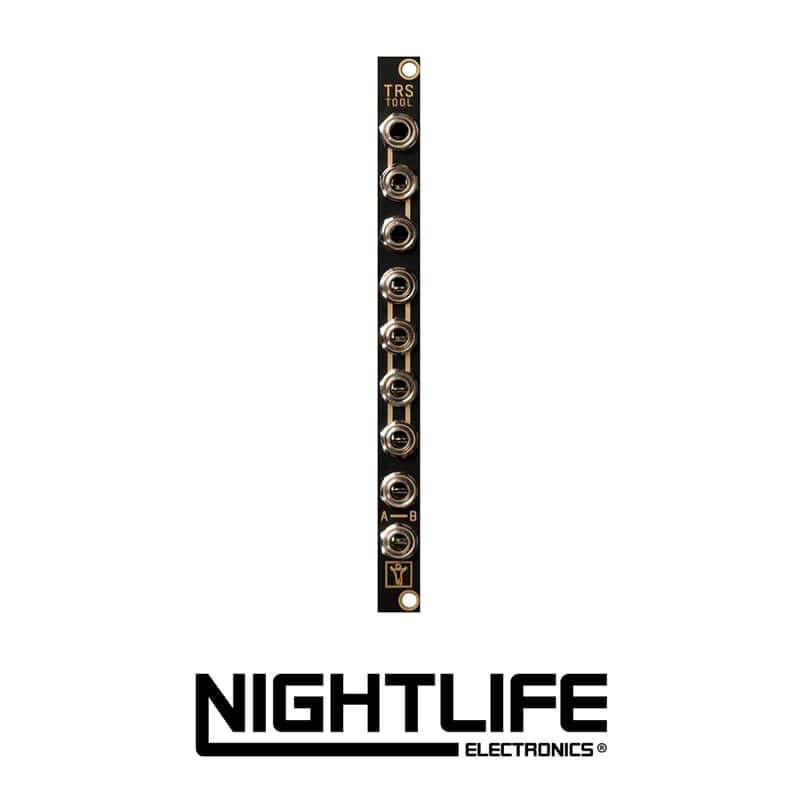

Der Mann mit der Maschine TRS Tools

TRS Tool is a multipurpose CV and audio signal distribution module for working with 3.5 mm stereo jacks (tip/ring/sleeve). These jacks are common for stereo audio but also for MIDI.

The TRS TOOL has no active components and does not need a power supply. It contains 3 different sections set up as following from top to bottom:

TRS Split

• The upper jack carries the tip signal
• The middle jack carries the stereo/dual signal
• The Lower jack carries the ring signal

There's 3 use cases for. TRS Split, which separates or combines stereo and mono signals for flexible routing and processing; TRS Quad Multiple, which duplicates stereo signals for sharing, creating effect sends, or experimental MIDI splitting (dependent on device power); and A/B Swapper, which switches stereo channels or converts between MIDI A/B standards for compatibility. Ideal for audio routing, MIDI management, and creative signal processing, it integrates seamlessly with systems like the DROID X7.

• Width: 2HP
• Depth: 22mm
• Power: Passive
