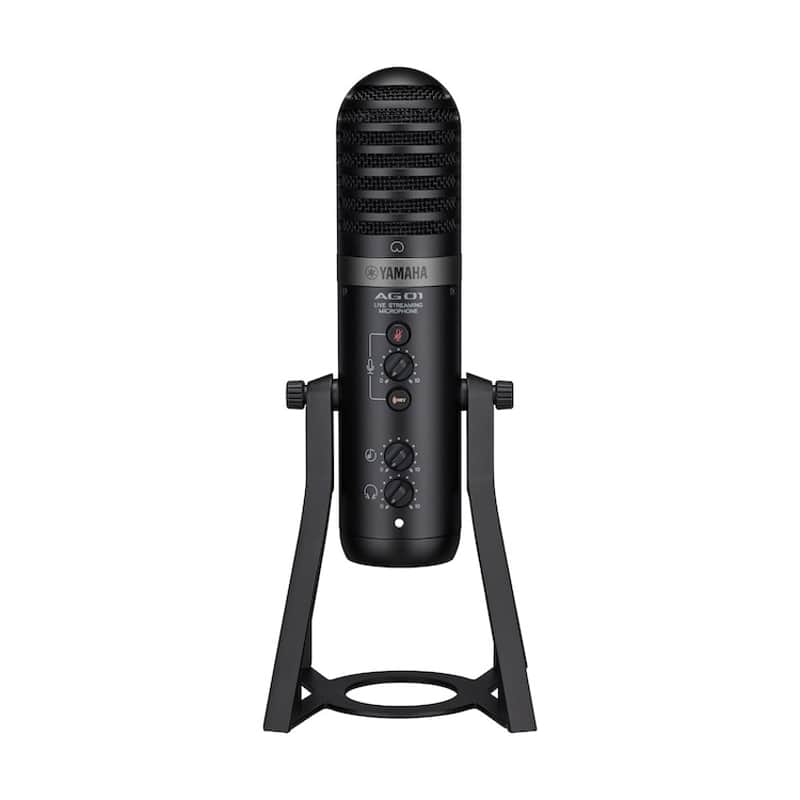

Yamaha AG01 Streaming Loopback Audio USB Microphone - Black
Only 1 left
Grab it before it's gone
2-Day Shipping Available
Faster shipping, straight to your door
Our users rate Reverb
MicrophoneMicrophone UnitPolar PatternAddress TypeFrequency ResponseMax Input SPLSensitivityConnectorOutlineInput ChannelsMicrophoneAUXSmartphoneUSBOutput ChannelsPHONESSmartphoneUSBBusFunctionsOn-board processorsDSPUSBUSB AudioUSB DC Power inputGeneral specificationsPower requirementsPower consumptionDimensionsWHDNet weightIncluded AccessoriesOthers
AG01
AG01
Microphone
Microphone Unit Back electret condenser type
Polar Pattern Cardioid
Address Type Side
Frequency Response 30 Hz - 20 kHz
Max Input SPL 110 dB (THD ≦1.0% at 1 kHz)
Sensitivity -34 dB ± 3 dB (0 dB=1 V/Pa, at 1 kHz)
Connector USB Type-C
Outline
Input Channels Microphone 1 (Mono condenser microphone)
AUX 1 - Stereo mini
Smartphone 1 - 4-pole mini input/output (TRRS)
USB 1
Output Channels PHONES 1 - Stereo mini
Smartphone 1 - 4-pole mini input/output (TRRS)
USB 1
Bus 1 Stereo
Functions MIC GAIN (HIGH / MID / LOW), MUTE button x 1, STREAMING OUT (MIC / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF)
On-board processors DSP COMP/EQ, REVERB (SPX Reverb) *Detail is Controlled on AG Controller
USB USB Audio 2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C
USB DC Power input 1 - Type-C, 5 V DC, 900 mA
General specifications
Power requirements 5 V DC, 900 mA
Power consumption Max. 4.5 W
Dimensions W 116 mm (4.6")
H 281 mm (11.1")
D 118 mm (4.6")
Net weight 1.2 kg (2.6 lbs)
Included Accessories USB 2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information
Others Operating Temperature: 0 to + 40 ℃
