4MS METAMODULE AUDIO EXPANDER [METAAIO] : BRAND NEW : [DETROIT MODULAR]

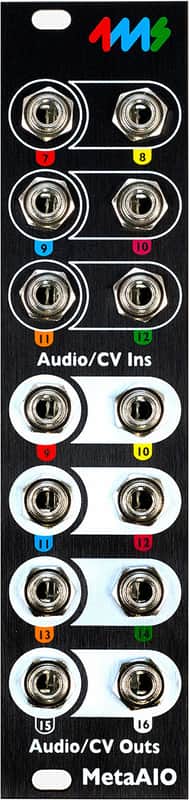

The MetaModule Audio Expander (MetaAIO) adds an additional 6 CV/Audio inputs and 8 CV/Audio outputs to your MetaModule patches, via a ribbon cable connected to the main MetaModule. The MetaAIO provides the same high-quality as the MetaModule's Audio/CV jacks (24-bit, 48kHz default, up to 96kHz).

Electrical and Mechanical Specifications

• 6HP Eurorack format module
• 1.28" (32mm) maximum depth (including ribbon cable)

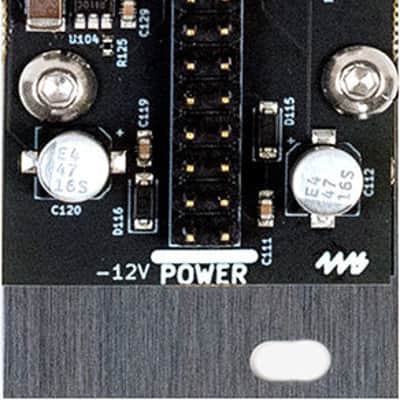

• 16-pin to 16-pin Eurorack power header
• Includes 2x5 ribbon cable for connecting to MetaModule
• Requires the MetaModule for operation
• Power consumption
  • +12V: 140mA maximum
  • -12V: 25mA maximum
  • +5V: (not used)

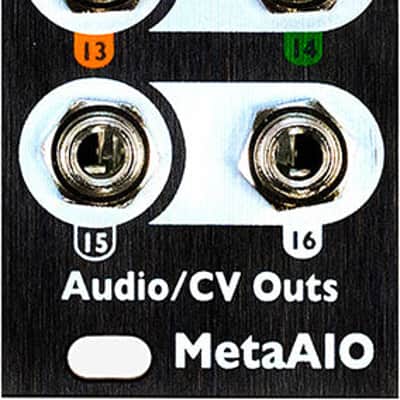

• 8 CV/Audio outputs, 24-bit 48kHz, -10V to +10V, DC-coupled
• 6 CV/Audio inputs, 24-bit 48kHz, -10V to +10V, DC-coupled
• User memory (non-volatile): calibration values for each jack
