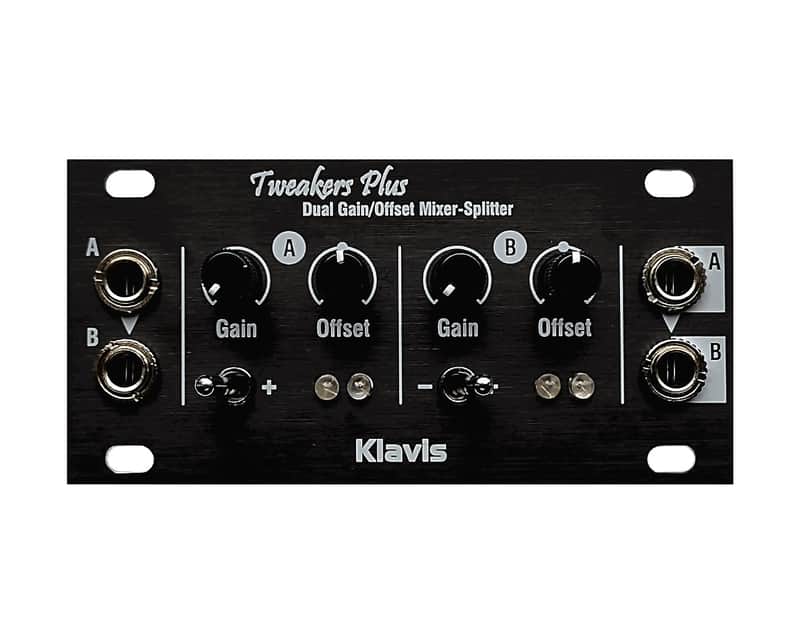

Klavis Tweakers Plus 1U Dual Gain/Offset/Polarity/Mute CV Processor Module

Tweakers Plus is a slim companion module that allows you to fine tune your modulations.
Two channels offer control over gain and offset, a three-position switch allows muting the channel and inverting the modulation polarity without impacting the offset.
A pair of LEDs tell the amplitude and polarity of the output signal; with audio signals, both LEDs light up together. Normalising of the inputs avoids using a multiple when a signal is dispatched to two targets. Normalising of the outputs offers an extra mixer, summing the two channels, very handy as an audio mixer as well!
Activating predefined settings at the flick of a switch is great for live situations. Being able to prepare two sets of carefully adjusted settings for a given signal is even more useful.

• Two independent channels also useable jointly as a mixer or splitter In each channel:
• Input and output jack
• Gain pot with up to 2.1 amplification
• Bipolar offset pot
• 3-position switch:
• Inverted polarity
• Channel off
• Normal polarity
• LED pair to indicate positive/negative signal level
• Offset setting is independent of the polarity switch
• Normalised input A can distribute the signal in both channels
• Normalised outputs can mix the two channels on out B
• Useable for audio
• 1U module (Intellijel format)
• Black bath-anodised brushed aluminium, 2mm thick

• 16 HP 29 mm deep

Attenuator DualStereo Mixer Polarizer Utility
