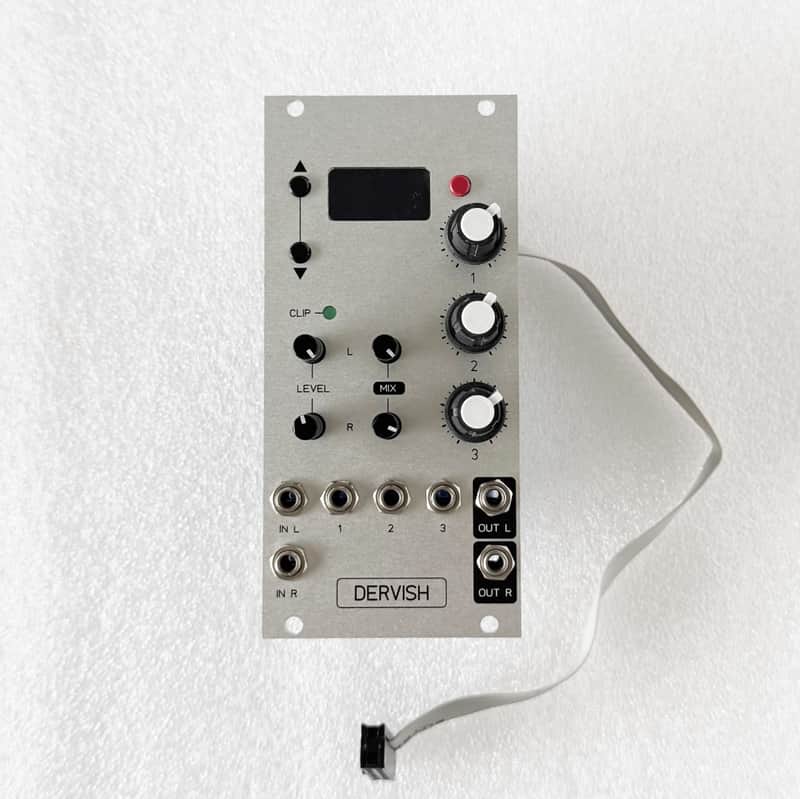

Dervish multiFX Stereo Module
Our users rate Reverb
Enhance your creation with multi-effects.
Stereo Input L & R
CV Input 1-3
Stereo Output L & R
Technical Silicon Stuff:
FV-1 based DSP FX module FX module based around Spin Semiconductors FV-1 DSP chip.
Programs:
- Chorus-Reverb
- Flange-reverb
- Tremolo-reverb
- Pitch shift
- Pitch-echo
- Reverb 1
- Reverb 2
Some FV-1 Data:
The FV-1 runs it's current live program from a bank of eight programs stored in an external EEPROM. Dervish expands this onboard EEPROM storage to provide up to 11 banks of programs.
The FV-1 supports three CV inputs. Dervish provides summed pot and external CV control for these.
An 0.96" OLED display is provided for the user interface, providing basic description on the current running program (bank name, program name, function for each CV). A simple menu system allows changing the program bank in real time, screensaver timeout, and screen brightness.
The current program and bank number, screensaver timeout and screen brightness are persisted in memory and recalled on next power up.
Power stuff:
Dimensions Current Draw
12 HP 100 mA +12V
35 mm deep 26 mA -12V
0 mA 5V
Printed in PCB: gBiz Dervish DSP Board v3.1.2 290717
More info can be found on ModWiggler
