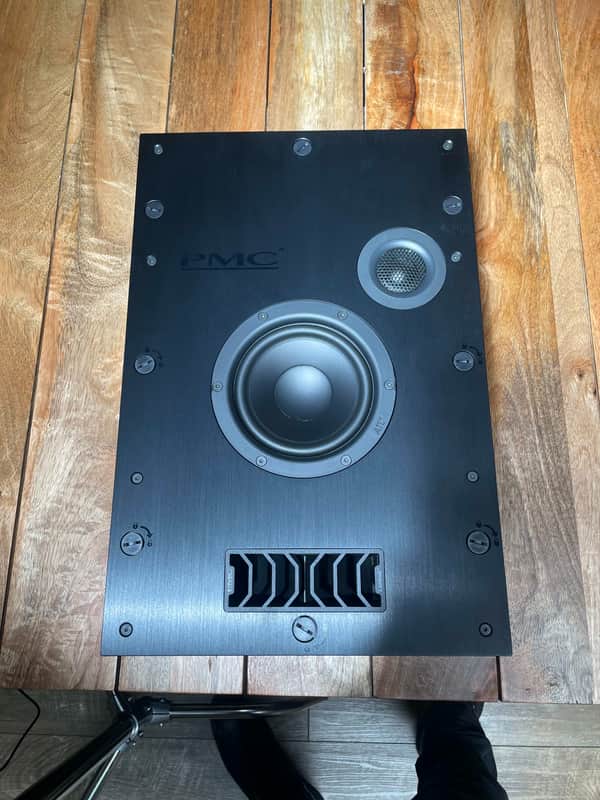

PMC ci45 2023 - Black

These speakers were used in a smoke free professional studio's Atmos/360RA/Immersive set up.

This listing is for ONE speaker, but 11 total speakers are available. The speakers come with the original grills and some custom mounts that work in any install location are also available for an additional fee.

If you'd like to purchase the complete set of speakers please message us for a discounted price. Also available in another listing are two Crown DCi 8|600DA power amps with DANTE.

Hollywood sound at home

The ci45 is a custom install loudspeaker, perfect for surround channels in a small-to-medium Dolby Atmos®mix room. Shown with optional ci Series Sleeve for on-wall mounting applications (sold separately).
The PMC Loudspeakers ci45 is a custrom install loudspeaker suited to slightly larger spaces; it has all the speed and attack of the ci30, and produces greater image depth, bass extension and dynamism.

The PMC ci series

The ci series are ideal for playbackof stereo and immersive formats, and the largest models provide the greatestheadroom, bass and dynamics. All models apart from the ci140 and ci140sub maybe mounted in- or on-wall, thanks to their Qikfire™ fittings, bezel-less grilleand stylish cabinet sleeve.

In-wall mounting

The Qikfire™ in-wall mounting systemmakes the range very “installer-friendly”. The ci30, ci45, ci90slim andci65 arefitted with Qikfire, a spring-loaded mounting system which allows the loudspeakerto be fixed in position with a simple twist of a screwdriver. Removal is justas easy as installation, with a simple twist.

On-wall mounting

On-wall mounting is just asstraightforward as in-wall mounting, using the supplied interlocking bracket, whichis designed to also offer pin-point level adjustment. For the ci30, ci45,ci90slim andci65 an optional mounting sleeve in white or black may be fittedaround the cabinets to conceal the in-wall mounting system creating an elegantand discrete on-wall loudspeaker.

Magnetic Grilles

All models featureprecision-perforated grilles with magnetic fixings which are finished in whitesilk. Black silk is available as an option.

ATL - AdvancedTransmission Line

The source of PMC’s legendarynatural, realistic sound is the Advanced Transmission Line (ATL) basstechnology, professionally proven all around the world.
ATL uses energy generated by the bass unit in amuch more intelligent, efficient way than speaker designs based on ported orsealed boxes.

Greaterdetail & more natural

A full, rich sound at any volume level

Deeper bass from a smaller cabinet

Laminair Vent

PMC’s Laminair™ aerodynamic venttakes audio performance to the next level, by applying ATL aerodynamicprinciples from high-performance engineering used from F1 to Le Mans andcreating an even smoother, laminar air flow at the exit from the transmissionline.
ATL designs involve air moving at high speeds andunder pressure.Reducing turbulence and drag at the ATL vent reduces resistance,increases efficiency, eliminates air noise and provides bass with supremetiming and the widest possible dynamic range.The combination of ATL andLaminair takes audio quality to unparalleled new heights:

Faster, cleaner bass and higher definition soundthroughout

Turbulence is eliminated, increasing the efficiency ofthe ATL

Removes air noise — only the music remains

Higher maximum output and bass with supreme timing anddynamics

SPECIFICATIONS

AvailableFinishes: ci series black

Dimensions:H 450mm (17.7”) W 300mm (11.8”) D 103mm (4”)

DriveUnits: LF 133mm (5.25”) NaturalFibre LT™ / HF 27mm (1”) soft dome

EffectiveATL™ Length: 1.65m (5.4ft)

FrequencyResponse: 45Hz-25kHz

Impedance:1.65m (5.4ft)

InputConnectors: 1 pair 4mm sockets

Sensitivity:84dB (2.83v @1m)

Weight: 6.5kg inc grille (unboxed)
