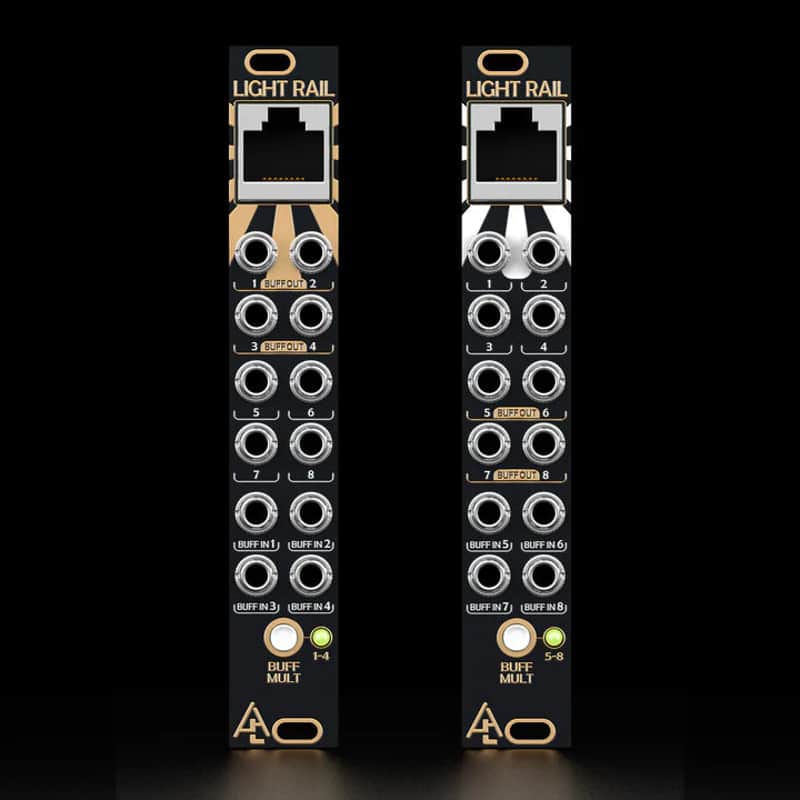

AFTER LATER AUDIO LIGHT RAIL (PAIR) : BRAND NEW : [DETROIT MODULAR]

8 channels of audio or modulation over ethernet.  There are two modules and a 3' CAT7e cable to connect them together.  There are 8 total channels that are unbuffered and bi-directional. The primary usage is to connect two cases or just send a bundle of signals from one part of your larger case to another.  You also get the option of buffering up to four channels on each side.  This gives you a local copy of the signal and sends buffered copy to the other module, saving you from having to use a MULT to keep a local copy.
Some notes:

1. When one side of the Light Rail is in buffered mode, you cannot send signals from the opposite side on those 4 buffered channels (the other 4 channels can still be used in bi-directional mode)
2. If you are after a different longer/shorter cable, you will get the best performance with CAT7e as it offers the shielding, which is used for the ground.
3. While the cross channel bleed is minimal, you will notice some very minor cross talk between the channels.

Width: 8hp 12V: 15mA -12V: 10mA
