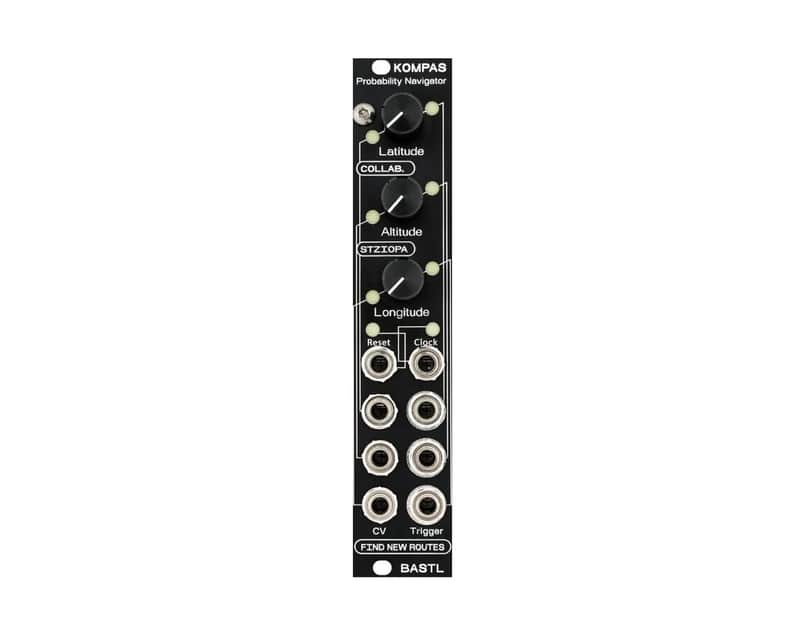

Bastl Instruments Kompas Probability Trigger Generator DiY Kit

Kompas (DIY kit) is a three co-ordinate probabilistic pattern navigator. Each co-ordinate has a unique travelling pace and a dedicated trigger output. The amount of probability can be adjusted manually or by external voltages. Once a coordinate has been adjusted, a new pattern is generated and looped until the next change of direction.

Unlike common probability operation, instead of filtering a pre-determined sequence, Kompas uses probability to generate new looping patterns based on the direction you choose.

FEATURES

• Global clock and reset input
• 3 x 32 step pattern generators with travelling algorithms
• 3 CV inputs for coordinate modulation
• 3 trigger outputs
• 2/5/10ms selectable trigger length (via boot settings)
• DIY and hacker friendly Arduino programmable hardware
• Open-source schematics and code –GITHUB
• Includes a printed fanzine with navigation topics

TECHNICAL DETAILS

• Width: 5 HP
• Depth: 35mm (skiff friendly)
• PTC fuse and diode protected 10-pin power connector
• 5ms default trigger length
• 5V trigger outputs
• 0-5V protected CV inputs
• 60Hz maximum clock rate (3600 BPM!)
• 6-pin FTDi connector
• Power consumption +12V: < 30mA

• 5 HP 35 mm deep
