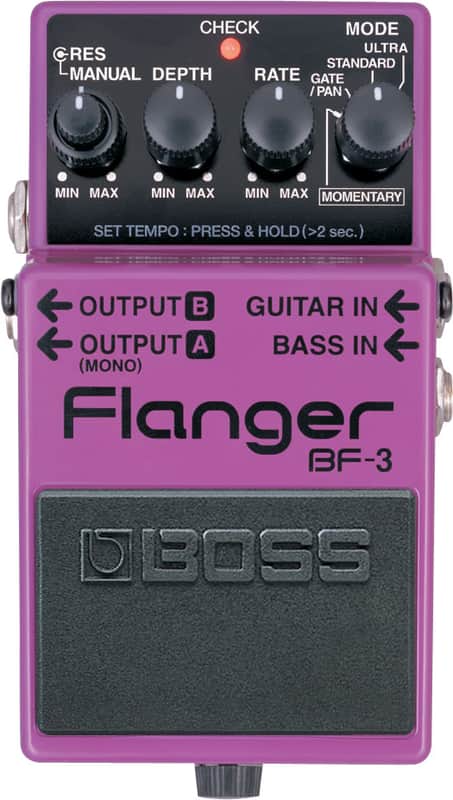

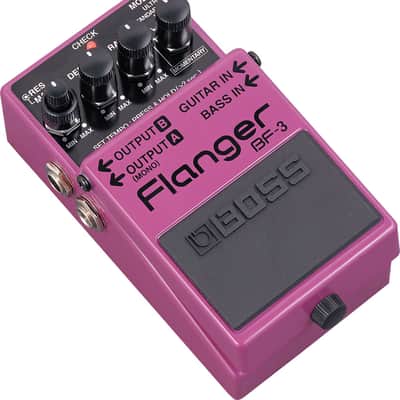

Boss BF-3 Flanger

New With Warranty From
Dexter Music Center
Authorized Dealer and Service Center

The Flanger Gets a Face-Lift

Building on the 20-year legacy of the famous BOSS BF-2, the new BF-3 flanger pedal gives guitarists and bassists an updated version of the classic BOSS flanger with the thickest stereo flanging sounds ever. Two new modes (Ultra and Gate/Pan) create stereo flanging with incredible depth--even Slicer-type effects and sounds that seem to "swirl" around the listener. An instant classic.

• BOSS' best flanging effects in a compact pedal
• New Ultra and Gate/Pan modes for ultra-fat flanging and futuristic slicer-type sounds, respectively
• Momentary mode turns flanging on instantly
• Tap tempo adjustable via pedal
• Independent Guitar and Bass inputs and stereo outputs
• BOSS five-year warranty


Specifications
Nominal Input Level -20 dBu
Input Impedance 1M ohm
Nominal Output Level -20 dBu
Output Impedance 1k ohm
Recommended Load Impedance 10 k ohms or greater

Bypass
Buffered bypass

Controls
MODE knob
RATE knob
DEPTH knob
RES (Resonance)/MANUAL knob
Pedal switch

Indicator
CHECK indicator (Used for indication of check battery)

Connectors
GUITAR IN jack: 1/4-inch phone type
BASS IN jack: 1/4-inch phone type
OUTPUT A (MONO) jack: 1/4-inch phone type
OUTPUT B jack: 1/4-inch phone type
DC IN jack

Power Supply
Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)

Current Draw
60 mA

Expected battery life under continuous use
Alkaline: Approx. 4 hours
*These figures will vary depending on the actual conditions of use.

Accessories
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Registration Card
Alkaline battery (9 V, 6LR61)

Options (sold separately)
AC adaptor: PSA series

Size and Weight
Width 73 mm 2-7/8 inches
Depth 129 mm 5-1/8 inches
Height 59 mm 2-3/8 inches
Weight (including battery) 425g 15oz
