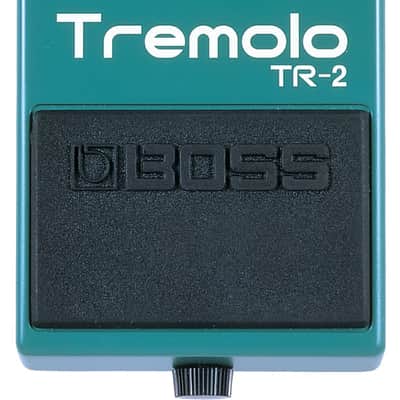

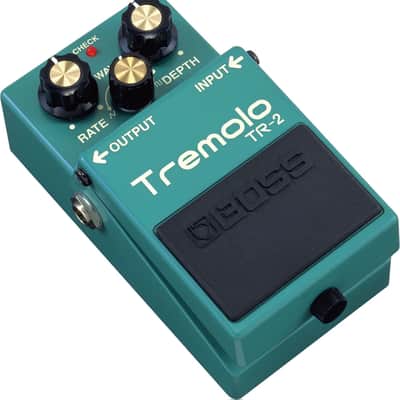

Boss TR-2 Tremolo

New With Warranty From
Dexter Music Center
Authorized Dealer and Service Center

Classic Tremolo Sounds!

The BOSS TR-2 Tremolo is designed to provide guitarists with classic tremolo effects in an easy-to-use compact pedal. Dedicated "Wave," "Rate," and "Depth" knobs provide a multitude of effect possibilities.

• Provides guitarists with high-quality vintage tremolo effects in an easy-to-use compact pedal
• Dedicated "Wave," "Rate" and "Depth" knobs allow for precise effect tailoring
• "Rate" control allows for higher speed adjustment than classic PN-2
• "Wave" control alters LFO waveform from triangle to square
• "Depth" control determines the strength of the effect
• BOSS five-year warranty


Nominal Input Level -20 dBu
Input Impedance 1M ohm
Nominal Output Level -20 dBu Output Impedance1 k ohm
Recommended Load Impedance 10 k ohms or greater
Bypass Buffered bypass

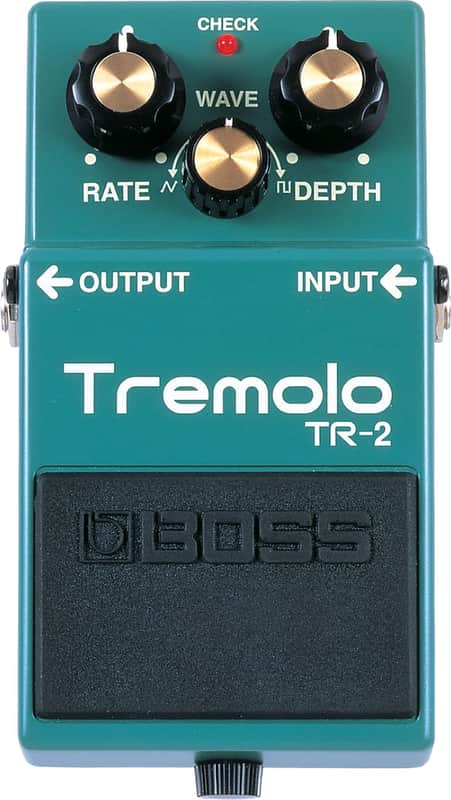

Controls
DEPTH knob
RATE knob
WAVE knob
Pedal switch

Indicator
CHECK indicator (Used for indication of check battery)

Connectors
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack

Power Supply
Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)

AC adaptor
(PSA series: sold separately)

Current Draw
25 mA

Expected battery life under continuous use
Carbon: Approx. 12 hours
Alkaline: Approx. 28 hours

*These figures will vary depending on the actual conditions of use.

Accessories
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22)

Options (sold separately)
AC adaptor: PSA series

Size and Weight

Width 73 mm 2-7/8 inches
Depth 129 mm 5-1/8 inches
Height 59 mm 2-3/8 inches
Weight (including battery) 385g 14oz
