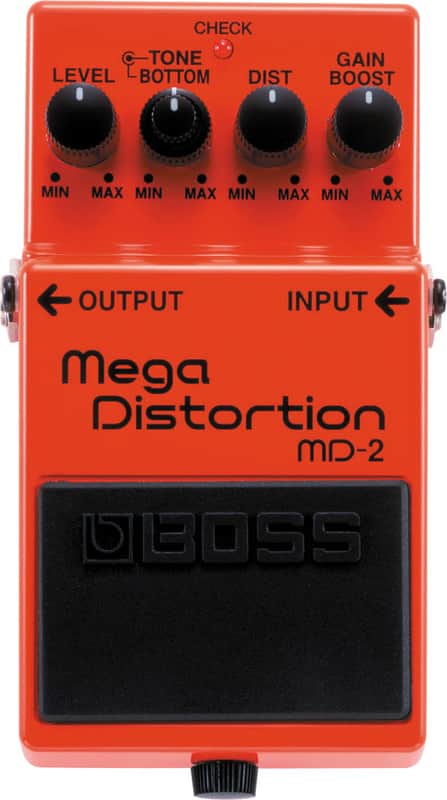

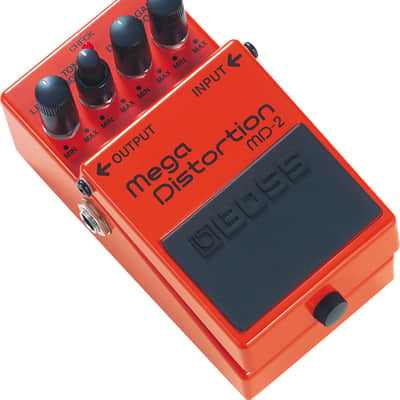

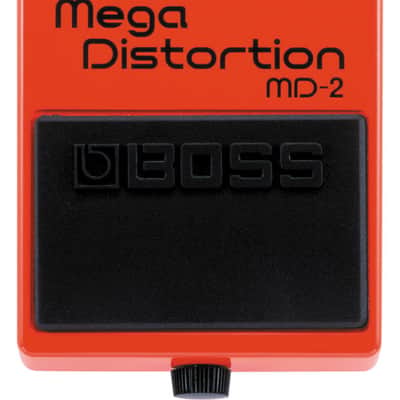

Boss MD-2 Mega Distortion

New With Warranty From
Dexter Music Center
Authorized Dealer and Service Center

Extreme Distortion for Extreme Music
The MD-2 Mega distortion takes the bottom-heavy distortion sounds heard in today's new-school metal and pushes it to the extreme. The secret is a special dual-stage distortion circuit with an added gain boost-plus new Bottom and Tone controls--for crushing distortion with massive low end. Take your distortion into the future with the MD-2.

• Produces extreme, low-end distortion for modern metal and hard rock
• Gain Boost circuit creates huge distortion and sustain regardless of level
• New Bottom control for bottom-heavy distortion matched to 6- or 7-string guitars
• Tone control adjusts balance between high and low frequencies
• BOSS five-year warranty


Nominal Input Level
-20 dBu
Input Impedance
1 M ohm
Nominal Output Level
-20 dBu
Output Impedance
1 k ohm
Recommended Load Impedance
10 k ohms or greater
Bypass
Buffered bypass

Controls
GAIN BOOST knob
DIST knob
TONE/BOTTOM knob
LEVEL knob
Pedal switch

Indicator
CHECK Indicator (Used for indication of check battery)

Connectors
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack Power Supply Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)

Current Draw
20 mA

Expected battery life under continuous use
Carbon: Approx. 16 hours
Alkaline: Approx. 30 hours
* These figures will vary depending on the actual conditions of use.

Accessory
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22)

Options (sold separately)
AC Adaptor: PSA series

Size and Weight
Width 73 mm 2-7/8 inches
Depth 129 mm 5-1/8 inches
Height 59 mm 2-3/8 inches
Weight (including battery) 395g 14oz
