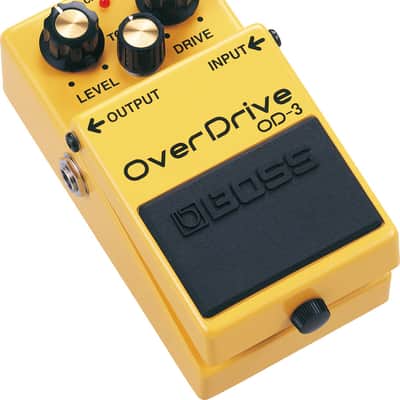

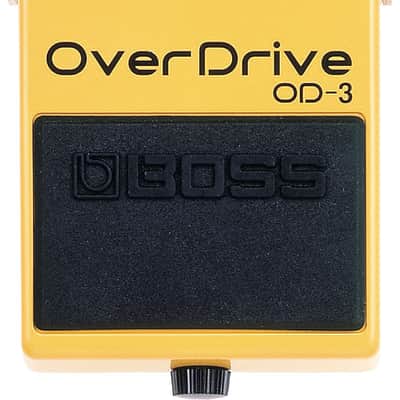

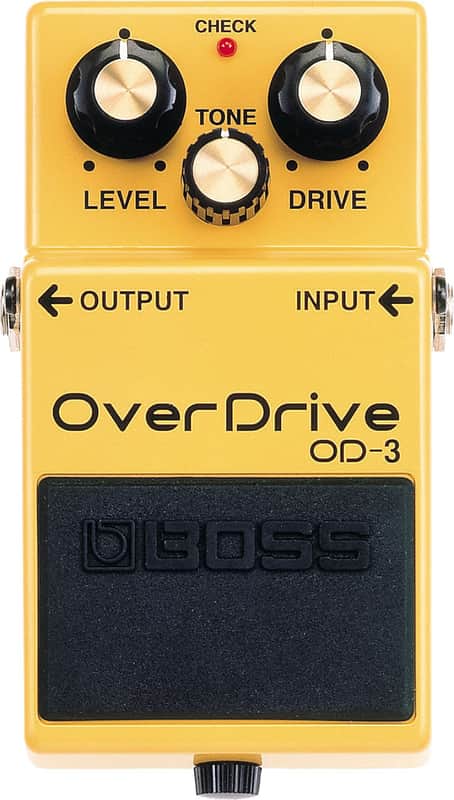

Boss OD-3 Overdrive

Boss OD-3 Overdrive

New With Warranty From
Dexter Music Center
Authorized Dealer and Service Center

Natural Overdrive with Endless Sustain!
Built in the tradition of the legendary BOSS overdrives, the OD-3 OverDrive pedal gives guitarists a greatly expanded range of smooth overdrive tones and improved response while staying true to the original.

• Dual-Stage Overdrive Circuit offers a level of sustain and compression unmatched by any overdrive pedal
• Increased dynamics yield a "bigger" sound than any previous BOSS overdrive pedal
• Dynamic, non-muffled tones reminiscent of classic overdriven "stack" amps
• Straightforward Drive, Tone and Level controls
• BOSS five-Year Warranty

Nominal Input Level
-20 dBu
Input Impedance
1 M ohm
Nominal Output Level
-20 dBu
Output Impedance
1 k ohm
Recommended Load Impedance
10 k ohms or greater
Bypass Buffered
bypass

Controls
DRIVE knob
TONE knob
LEVEL knob
Pedal switch

Indicator
CHECK indicator (Used for indication of check battery)

Connectors
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack

Power Supply
Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)

Current Draw
15 mA

Expected battery life under continuous use
Carbon: Approx. 34.5 hours
Alkaline: Approx. 56 hours

*These figures will vary depending on the actual conditions of use.

Accessories
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22)

Options (sold separately)
AC adaptor: PSA series

Size and Weight
Width 73 mm 2-7/8 inches
Depth 129 mm 5-1/8 inches
Height 59 mm 2-3/8 inches
Weight (including battery) 370g 14oz
