JENSEN A12 CONE RECONE REPAIR DEEP CONE FOR A12 AND F12! CLOTH SURROUND= MORE EXCURSION=DEEPER BASS FIBERGLASS LOADED PMR SPEAKERS

********SEE MY OTHER LISTINGS!!!******

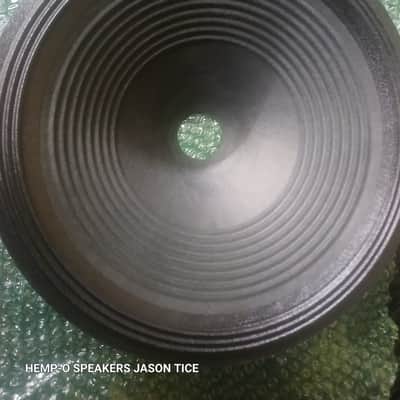

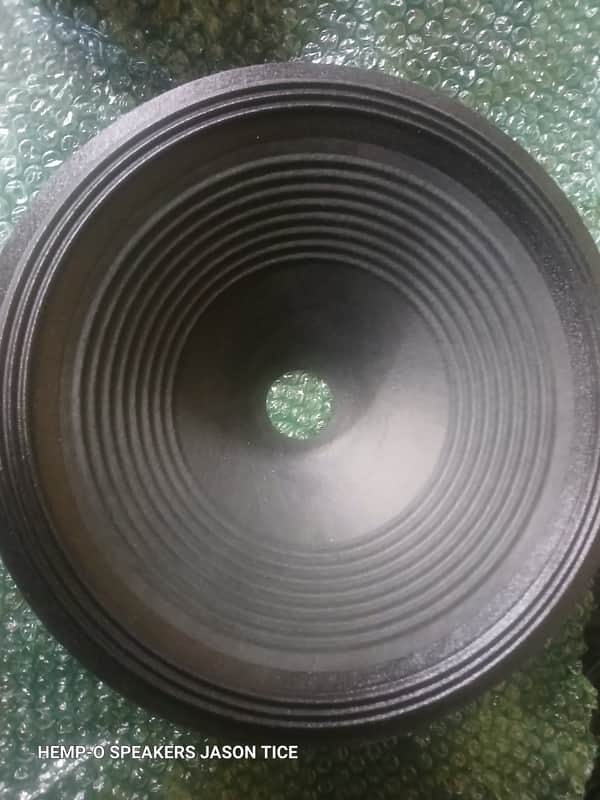

Up for grabs are these modern cone assemblies WITH accordion cloth surround for the Jensen A12 and F12 Field Coil speakers

These cones allow the physical excursion required to make the deeper bass notes, so this cone will DRAMATICALLY improve your low end response.

The original cones didn't play well below 110 Hz or so, because they were an "All paper" or "Full Paper Body", or even called a "Fixed Edge" cone..

That cone simply didn't play very deep and made a potentially TREMENDOUS sounding woofer sound more like a 12" midrange/upper bass unit.

This cone has a body resonance that's in the FIRST octave, so it'll play deeeeep.

The cone will obviously work on other deep cone frames, such as some of the Utah, Seeburg, EV, JBL, Celestion, fane, and others as well, simply by enlarging the voice coil diameter

here's some info:

Cone- 12"OD design

I./D.- 1 1/2"

depth ~3.5" deep

Weight w/surround-24.5 Grams (average)

Cloth surround thickness- .010"

Neck Dip- yes

Profile- Conical/straight sided body

Ribs- Fully ribbed body

Cloth sealed/dampened- YES!

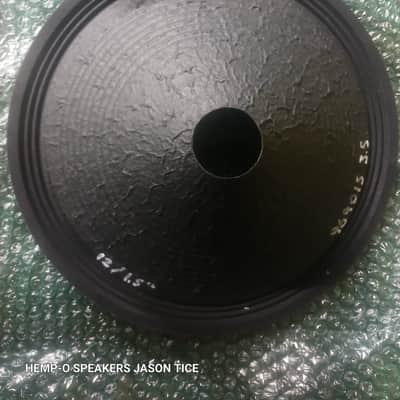

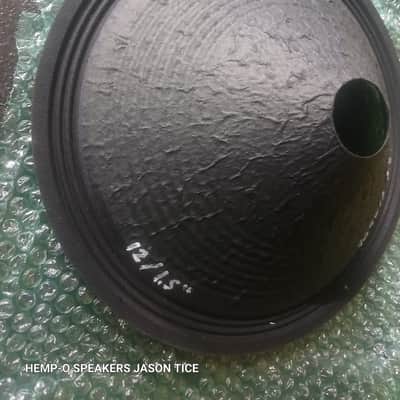

Plus, if you look closely at the back of the cone, you will see the heavy fiberglass loading I had done with this batch.

fellas', if you're doing an A12/F12, and want PERFORMANCE, and actually use your field coil as a woofer, then this cone makes all the difference.

I have all sorts of FC parts, so if ya' need something - just ask.

* DUE TO THE NATURE OF LOUDSPEAKER REAIRS IT IS ULTIMATELY UP TO THE BUYER TO DETERMINE COMPATABILITY. THEREFORE ALL LOUDSPEAKER COMPONENTS ARE SOLD AS-IS , WITHOUT WARRANTY,GUARANTEES, EXCHANGES, REFUNDS OR RETURNS

BE SURE you are OK with as-is"

So, if you need an impossible to find A12 /F12 cone assembly-, then here ya' go!

ANY questions or concerns, just ask.

Thanks guys!
